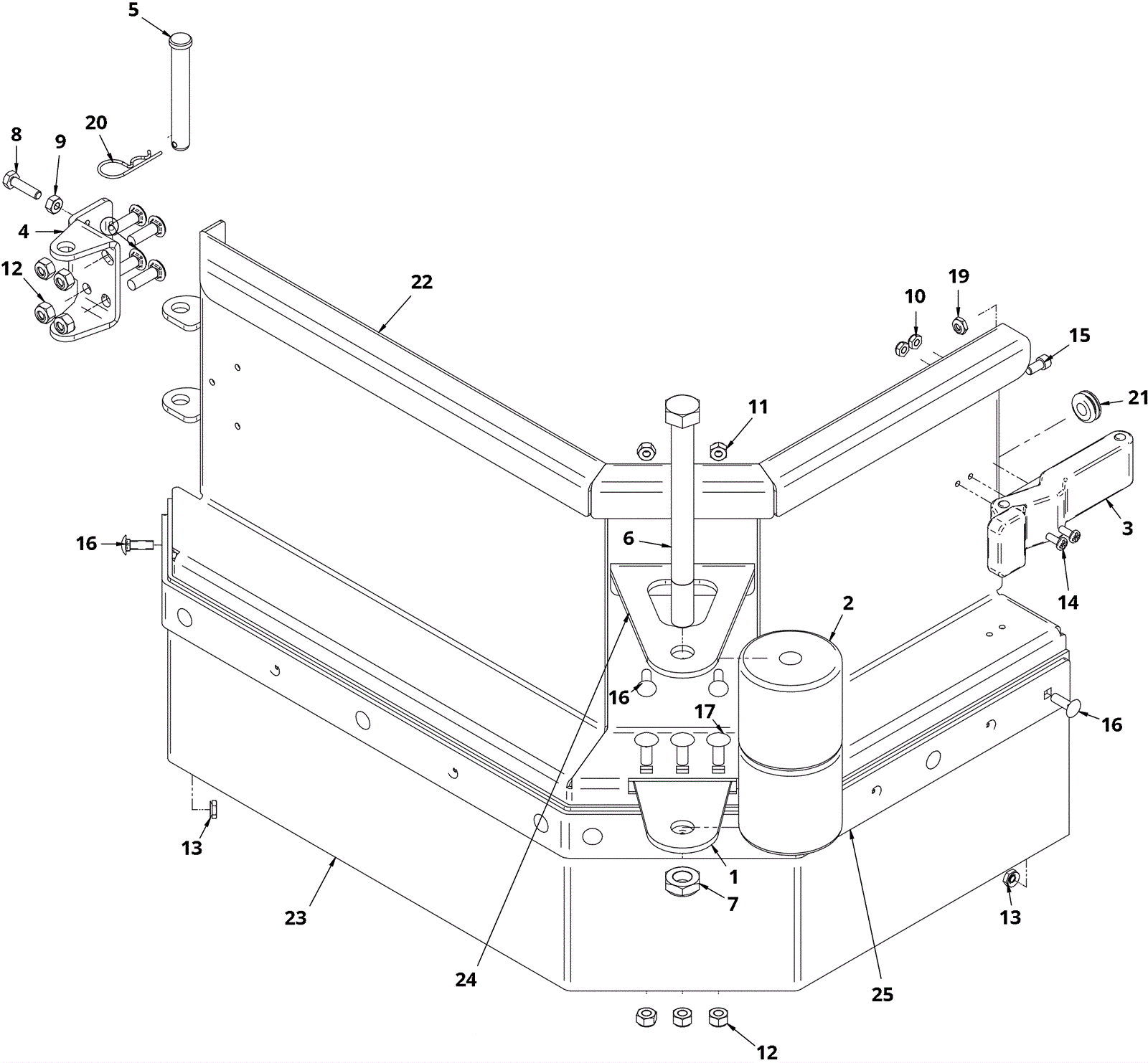

Jaw Assembly

#PartDescription ReqNotesAvailability
1 202-6342 Bracket, Roller 1
2 202-0756 Guide roller 2
3 202-5630 Soft draw latch 1
4a 202-6983 Hinge, Inner Jaw, RH 1
4b 202-6982 Hinge, Inner Jaw, LH 1
5 202-3173 Clevis pin 1
6 999-6723 Bolt 5/8-11 x 7 hex head grade 5 zinc plated 1
7 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
8 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
9 999-0609 Nut 1/4-20 hex stainless steel 1
10 999-0086 Nut 10-32 nylon insert lock zinc plated 2
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel 7
13 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 9
14 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 2
15 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel 1 (right hand only)
16 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 11
17 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 3
19 999-0304 Nut 1/4-20 nylon lock jam stainless steel 1 (right hand only)
20 202-3129 Cotter pin 1
21 202-3348 Rubber grommet 1 (right hand only)
22a 202-7002 Jaw, RH, 30 inch 1
22b 202-2157 32 inch right hand jaw 1
22c 202-7010 Jaw, RH, 34 inch 1
22d 202-7003 Jaw, LH, 30 inch 1
22e 202-2160 32 inch left hand jaw 1
22f 202-7011 Jaw, LH, 34 inch 1
23a 202-7008 Curtain, Jaw, 30 inch 1
23b 202-2158 32 inch jaw curtain 1
23c 202-7012 Curtain, Jaw, 34 inch 1
24a 202-6990 Bracket, Roller, Jaw, 30 inch 1
24b 202-6337 Bracket, Roller, Jaw, 28 inch 1
24c 202-6992 Bracket, Roller, Jaw, 34 inch 1
25a 202-7009 Band, Jaw, 30 inch 1
25b 202-2159 32 inch jaw band 1
25c 202-7013 Band, Jaw, 34 inch 1
N/S 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
