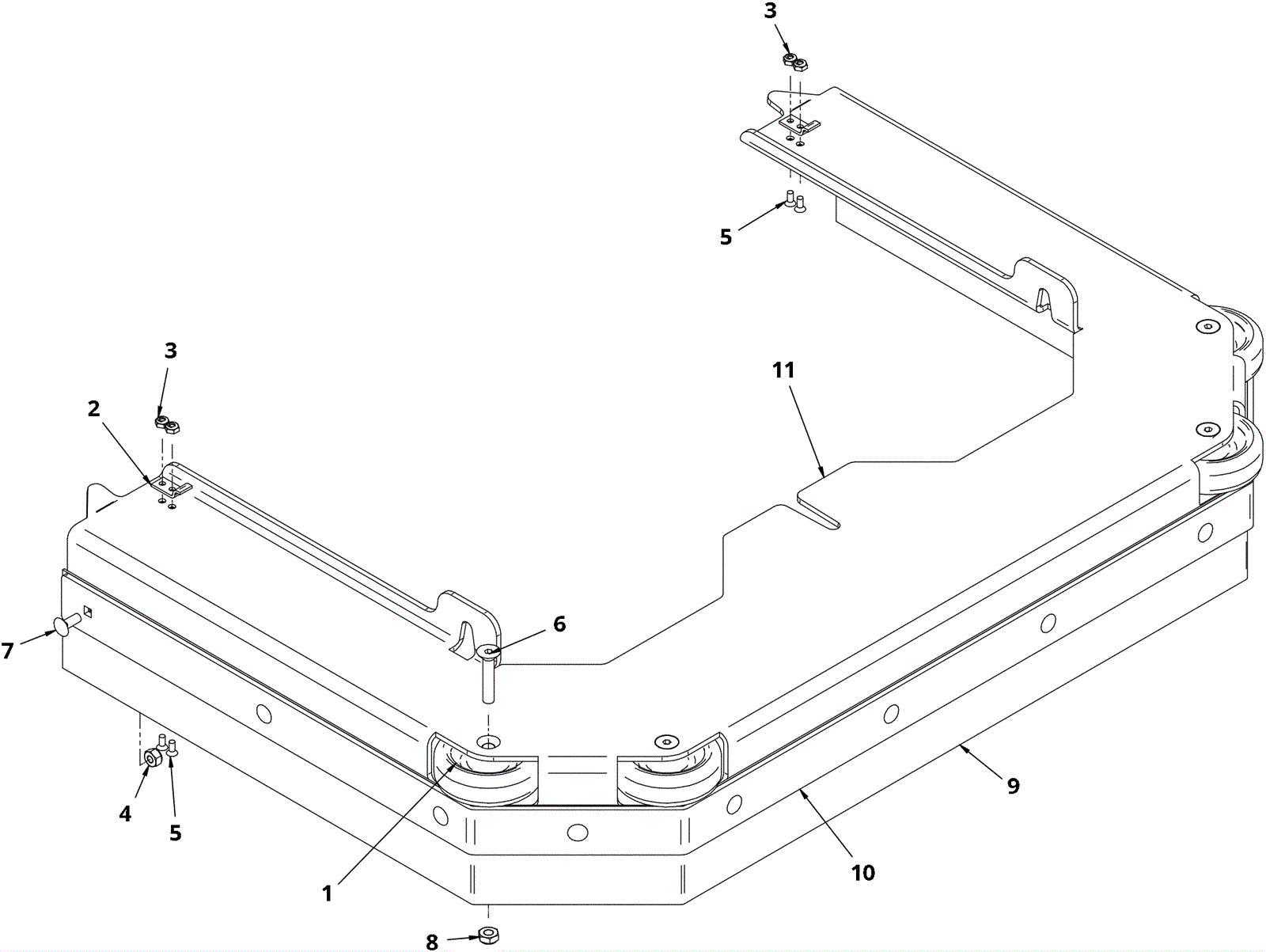

Mag-HD Disk Deck Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5405 3 inch wheel $8.80 4 usually ships 8-12 days
2 202-1487 Latch $25.19 2 usually ships 8-12 days
3 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 12 ships same day
5 202-3267 Screw 8-32 x 3.8 inch flat head phillips stainless steel $5.50 4 usually ships 1-5 days
6 999-1444 Screw 5/16-18 x 5/8 flat socket head stainless steel $1.83 4 ships same day
7 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 12 usually ships 8-12 days
8 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 4 ships same day
9a 202-6984 Curtain, Shroud, 30 inch $200.86 1 usually ships 8-12 days
9b 202-6986 Curtain, Shorud, 32 inch $161.48 1 usually ships 8-12 days
9c 202-6985 Curtain, Shroud, 34 inch $214.83 1 usually ships 8-12 days
10a 202-6987 Band, Shroud, 30 inch $198.88 1 usually ships 8-12 days
10b 202-6989 Band, Shroud, Curtain, 32 inch $530.20 1 usually ships 8-12 days
10c 202-6988 Band, Shroud, 34 inch $166.65 1 usually ships 8-12 days
11a 202-6965 Shroud, 30 inch $387.75 1 usually ships 8-12 days
11b 202-6968 Shroud, 32 inch $1,454.42 1 usually ships 8-12 days
11c 202-6969 Shroud, 34 inch $667.48 1 usually ships 8-12 days
