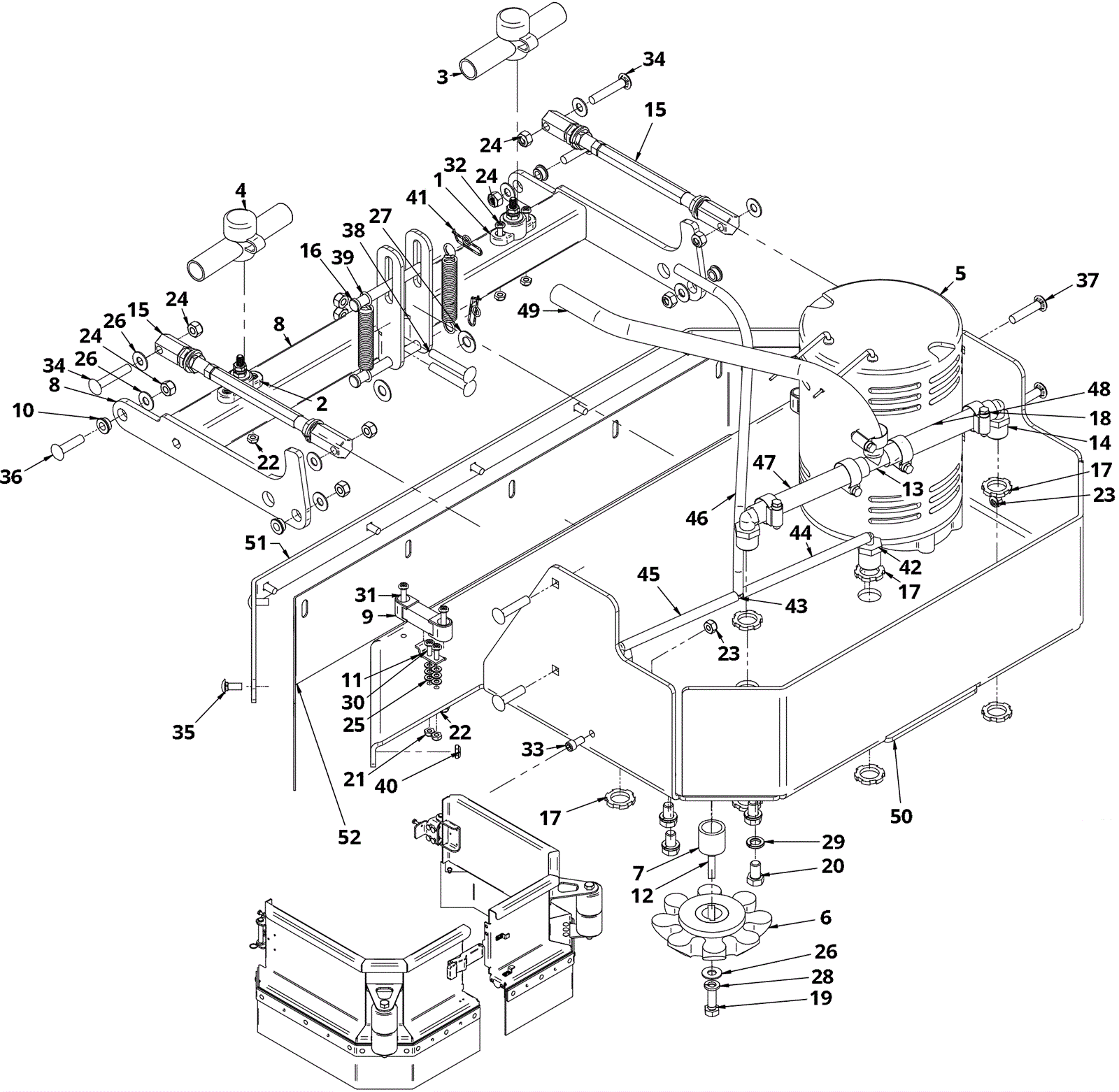

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
2 |
202-6397
|
Power Post, Red, 1/4 Terminal |
1 |
|
|
3 |
202-6400
|
Terminal Insulator, Black |
1 |
|
|
4 |
202-6401
|
Terminal Insulator, Red |
1 |
|
|
5 |
202-4015
|
24V 1HP brush motor |
2 |
|
|
6 |
202-7038
|
Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate |
2 |
|
|
7 |
202-7039
|
Spacer, Driver |
2 |
|
|
8 |
202-7092
|
Arm, Lateral, Disk/Edge |
1 |
|
|
9 |
202-5098
|
2 inch bolt on level |
2 |
|
|
10 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
11 |
202-1487
|
Latch |
2 |
|
|
12 |
202-0331
|
Brush driver key (pkg of 2) |
2 |
|
|
13 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
14 |
202-0333
|
Elbow barb |
2 |
|
|
15 |
202-5805
|
Body, Adjustable Lateral Arm |
2 |
|
|
16 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
2 |
|
|
17 |
999-0330
|
Nut 1/2-13 acorn brass |
8 |
|
|
18 |
202-0680
|
Hose clamp |
5 |
|
|
19 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
20 |
999-1856
|
Screw 3/8-24 x 5/8 hex cap stainless steel |
8 |
|
|
21 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
22 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
8 |
|
|
23 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
24 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
10 |
|
|
25 |
999-0266
|
Washer #8 SAE flat stainless steel |
12 |
|
|
26 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
|
27 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
28 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
29 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
8 |
|
|
30 |
999-0358
|
Screw 8-32 x 5/8 pan head phillips stainless steel |
4 |
|
|
31 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
32 |
999-1818
|
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
|
33 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
2 |
|
|
34 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
2 |
|
|
35 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
9 |
|
|
36 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
|
37 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
|
38 |
202-2100
|
Bolt 5/16-18 x 2 carriage head |
2 |
|
|
39 |
202-2208
|
Compression spring |
2 |
|
|
40 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
9 |
|
|
41 |
202-2036
|
Cotter pin |
2 |
|
|
42 |
202-4217
|
Barb elbow 1/2 x 1/4 inch |
2 |
|
|
43 |
202-9499
|
Tee, 1/4 inch, Plastic |
1 |
|
|
44 |
202-4225
|
Hose |
1 |
|
|
45 |
202-4225
|
Hose |
1 |
|
|
46 |
202-4225
|
Hose |
1 |
|
|
47 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
48 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
49 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
50a |
202-2154
|
30 inch deck |
1 |
|
|
50b |
202-2155
|
32 inch deck |
1 |
|
|
50c |
202-2156
|
34 inch deck |
1 |
|
|
51a |
202-6960
|
Band, Rear Curtain, 30 inch |
1 |
|
|
51b |
202-6962
|
Band, Curtain, Rear, 32 inch |
1 |
|
|
51c |
202-6961
|
Band, Rear Curtain, 34 inch |
1 |
|
|
52a |
202-6957
|
Curtain, Rear Deck, 30 inch |
1 |
|
|
52b |
202-6959
|
Curtain, Deck, Rear, 32 inch |
1 |
|
|
52c |
202-6958
|
Curtain, Rear Deck, 34 inch |
1 |
|
|
