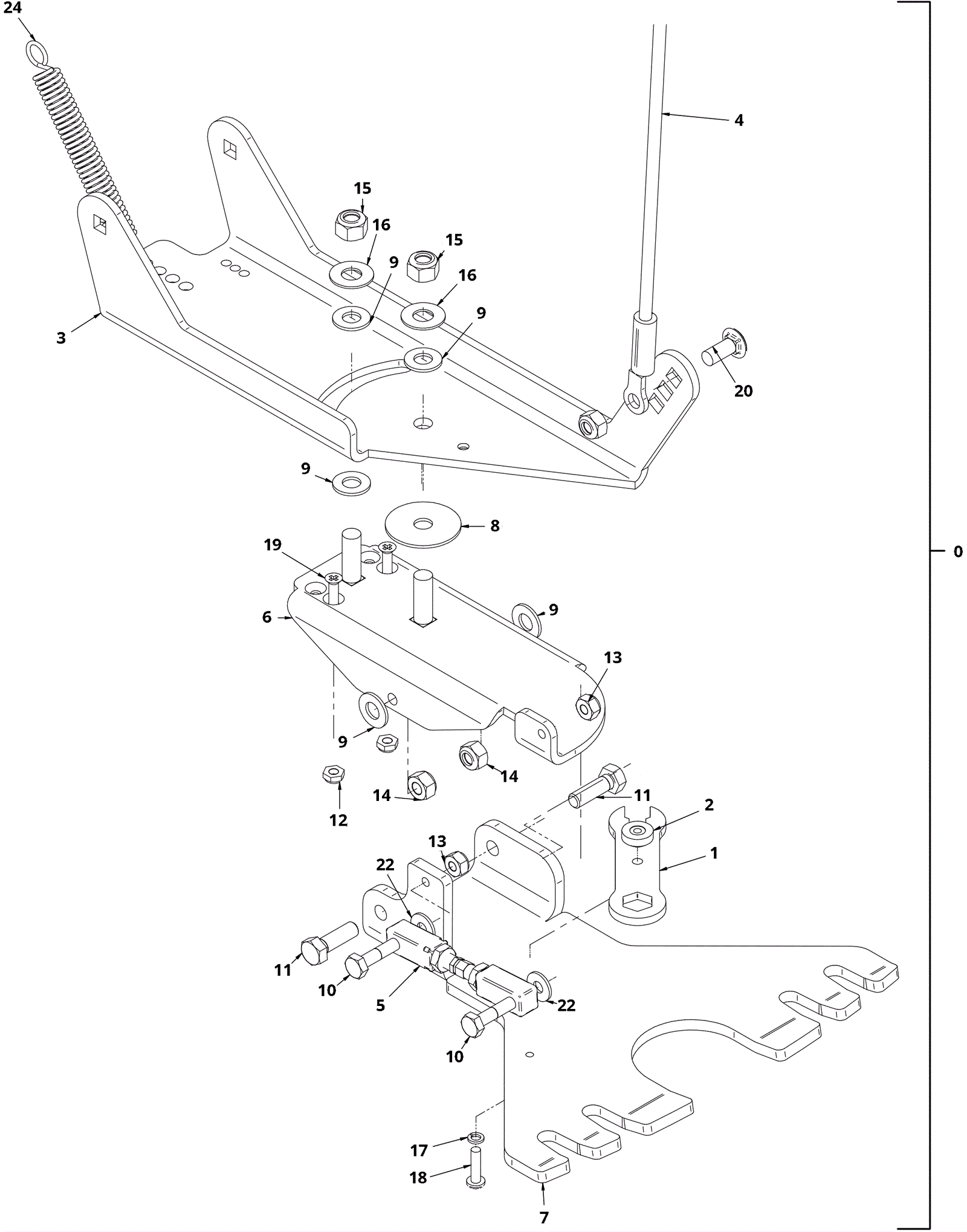

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
202-6425
|
Arm,Squeegee Trail,Assembly |
1 |
(includes 1-24) |
|
1 |
302-0132
|
3 in 1 tool |
1 |
|
|
2 |
202-6417
|
Knob,Yellow |
1 |
|
|
3a |
202-6423
|
Plate, Squeegee Swing |
1 |
|
|
3b |
202-6424
|
Plate, Squeegee swing stainless steel |
1 |
|
|
4 |
202-6430
|
Lift Cable,Squeegee,Black 31 inch |
1 |
|
|
5 |
202-6432
|
Body, Adjustable Lateral Arm Assy |
1 |
|
|
6a |
202-7052
|
Arm, Squeegee trail |
1 |
|
|
6b |
202-7053
|
Arm, Squeegee Trail, SS |
1 |
|
|
7a |
202-7055
|
Plate,Triangle,Squeegee |
1 |
|
|
7b |
202-7056
|
Plate, squeegee Triangle stainless steel |
1 |
|
|
8 |
202-9191
|
Washer,3/8 inchIDx1-1/2 inchOD,Nylon |
1 |
|
|
9 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
5 |
|
|
10 |
999-0298
|
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
2 |
|
|
11 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
12 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
13 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
14 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
15 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
16 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
17 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
18 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
19 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
|
20 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
|
22 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
2 |
|
|
24 |
202-4216
|
Spring |
1 |
|
|
N/S |
999-1150
|
Bolt 3/8-16 x 1 1/4 carriage head stainless steel |
2 |
|
|
N/S |
202-3275
|
Rubber bumper |
1 |
|
|
