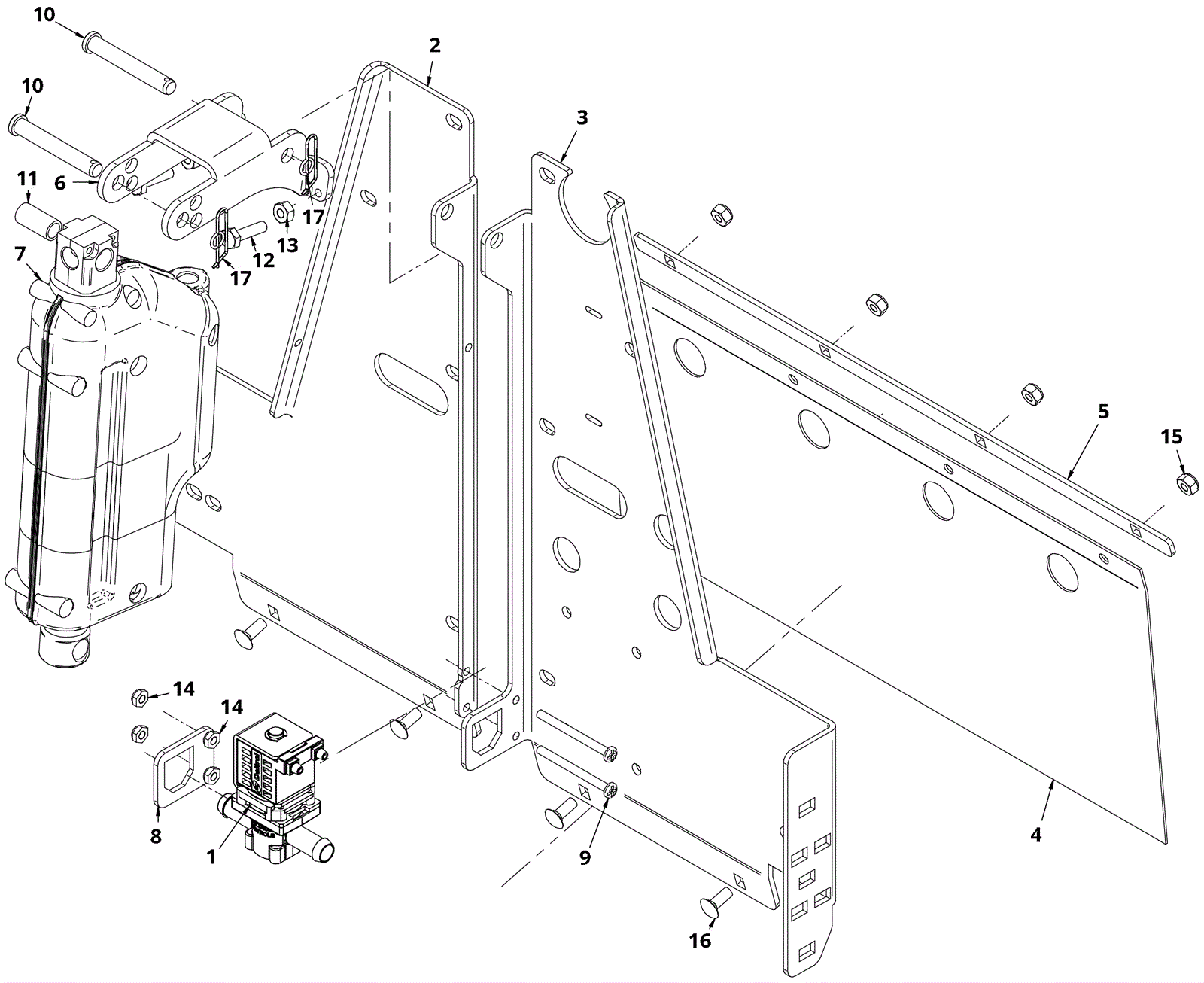

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6246
|
Solenoid,24V,3/8 inchNPTx3/8 inch |
1 |
|
|
2 |
202-6952
|
Bracket, Lift Arm Support, LH |
1 |
|
|
3 |
202-6953
|
Bracket, Lift Arm Support, RH |
1 |
|
|
4 |
202-6954
|
Curtain |
1 |
|
|
5 |
202-6955
|
Band, Curtain Frame |
1 |
|
|
6 |
202-6978
|
Arm, Actuator |
1 |
|
|
7 |
202-3376
|
24V actuator |
1 |
|
|
8 |
202-7049
|
Bracket, Valve |
1 |
|
|
9 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
2 |
|
|
10 |
202-5193
|
Clevis pin 3/8 x 2 |
2 |
|
|
11 |
202-1951
|
Sleeve |
1 |
|
|
12 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
13 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
14 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
15 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
16 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
|
17 |
202-2036
|
Cotter pin |
2 |
|
|
