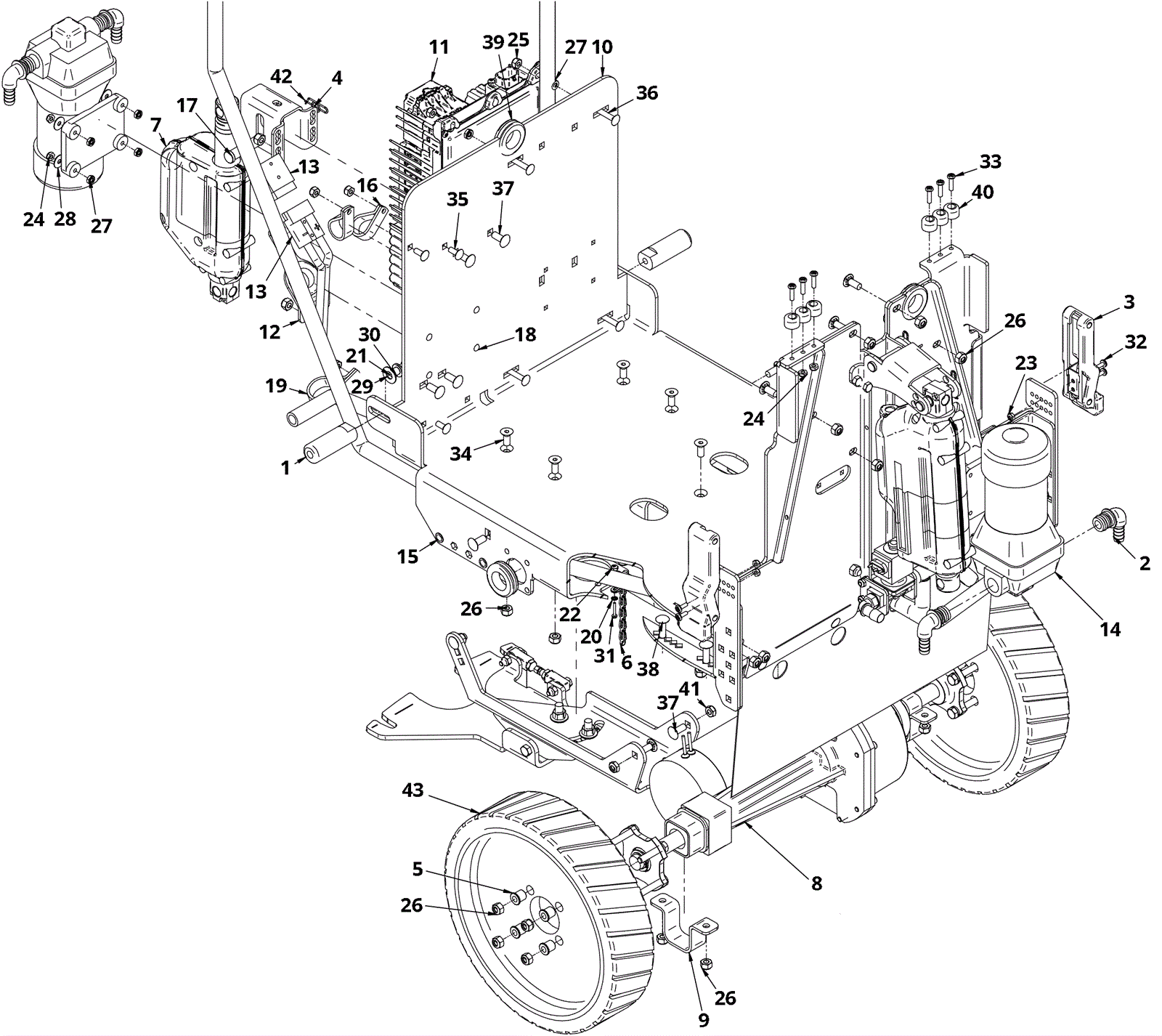

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6323
|
Boss, 2-3/4 inch |
1 |
|
|
2 |
202-1008
|
Barbed elbow |
1 |
|
|
3 |
202-5630
|
Soft draw latch |
1 |
|
|
4 |
202-5026
|
Squeegee lifting bracket |
1 |
|
|
5 |
202-3312
|
Flanged bearing |
1 |
|
|
6 |
202-3409
|
12 inch grounding chain |
1 |
|
|
7 |
202-4042
|
24V actuator |
1 |
|
|
8 |
202-3410
|
Transaxle |
1 |
|
|
9 |
202-6950
|
Axle Mount |
1 |
|
|
10 |
202-6963
|
Frame, Hero, MS |
1 |
|
|
11 |
202-7022
|
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
|
|
12 |
202-7091
|
Bracket, Charger Connector |
1 |
|
|
13 |
991-9284
|
50amp charger plug SB50 with pins (red) |
2 |
|
|
14 |
202-0101
|
60 PSI water jet pump |
1 |
|
|
15 |
202-5284
|
Nut 1/4-20 hex crimp long |
1 |
|
|
16 |
202-3619
|
3/4 inch loop clamp |
1 |
|
|
17 |
202-3401
|
Clevis pin |
1 |
|
|
18 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
|
19 |
202-3175
|
P clamp |
1 |
|
|
20 |
999-0148
|
Washer #6 external star lock zinc plated |
1 |
|
|
21 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
|
|
22 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
23 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
1 |
|
|
24 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
25 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
26 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
27 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
|
28 |
202-3316
|
Washer flat stainless steel |
1 |
|
|
29 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
30 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
31 |
999-1109
|
Screw 6-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
32 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
1 |
|
|
33 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
34 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
1 |
|
|
35 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
1 |
|
|
36 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
1 |
|
|
37 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
38 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
1 |
|
|
39 |
202-2592
|
Grommet |
1 |
|
|
40 |
202-3275
|
Rubber bumper |
1 |
|
|
41 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
42 |
202-2059
|
Cotter ring |
1 |
|
|
43a |
202-0491
|
12 inch wheel assembly with plastic hub x-groove kit (black) |
2 |
|
|
43b |
202-5712
|
Rear wheel assembly |
2 |
|
|
43d |
202-1350
|
Pneumatic drive wheel (black) |
2 |
|
|
43e |
202-1349
|
Foam filled drive wheel (gray) (OBSOLETE) |
2 |
|
|
43f |
202-0491
|
12 inch wheel assembly with plastic hub x-groove kit (black) |
2 |
|
|
43g |
202-4180
|
Rear wheel assembly |
2 |
|
|
43h |
202-6837
|
Wheel Assembly,Rear,3.5 inchW Grey Poly |
2 |
|
|
