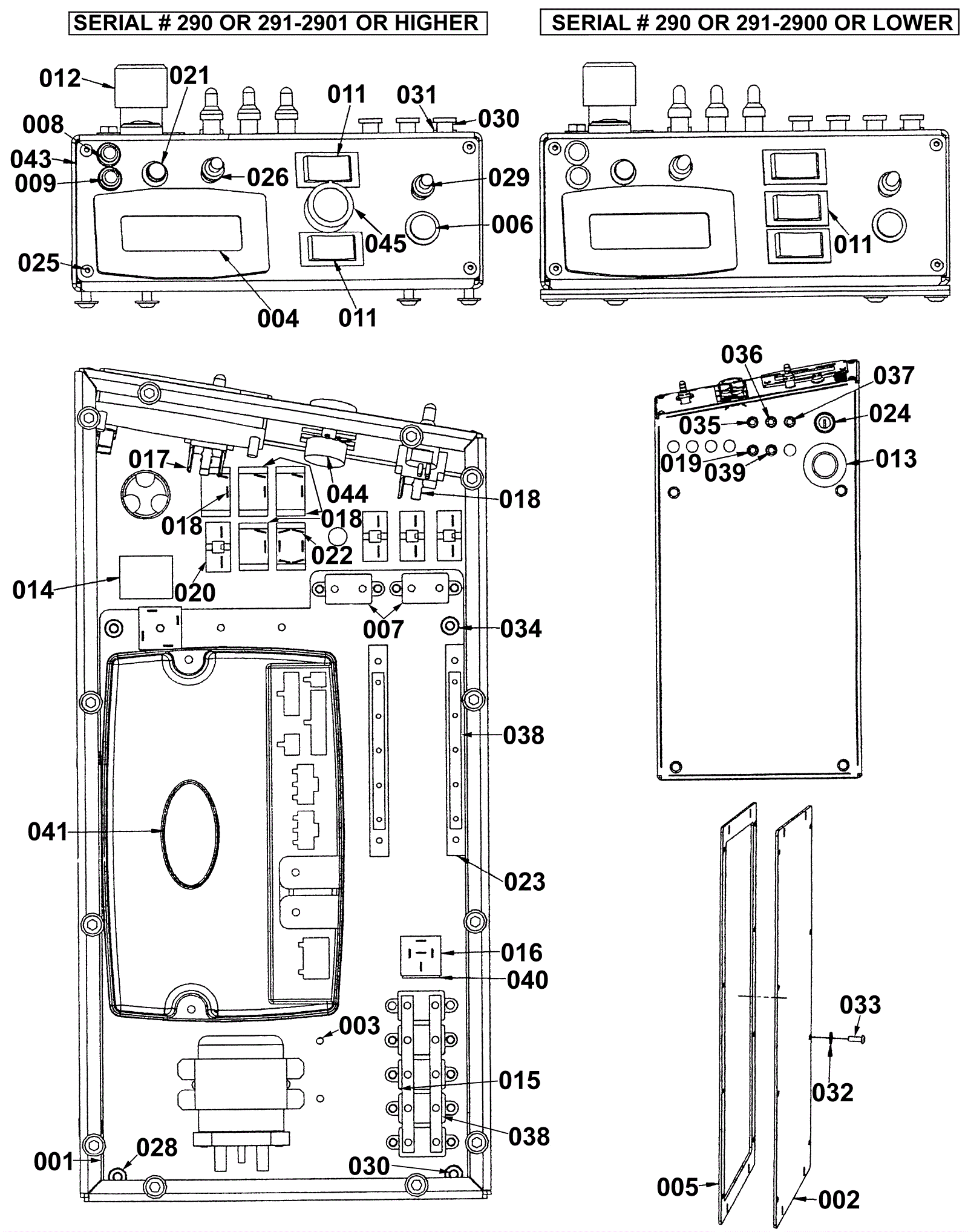

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2099
|
Control panel |
1 |
|
|
002 |
202-0815
|
Access cover |
1 |
|
|
003 |
202-1994
|
Hardware panel |
1 |
|
|
004 |
202-1317
|
LCD window display |
1 |
|
|
005 |
202-0818
|
Access cover gasket |
1 |
|
|
006 |
202-1356
|
One touch button |
1 |
(This switch has been replaced, the new one does not illuminate, use this same pn though) (new button is slightly larger - drill hole out to 1 inch; old hole was 7/8 inch) |
|
007 |
202-2052
|
15amp circuit breaker |
2 |
|
|
008 |
202-0831
|
Low solution indicator (amber) |
1 |
(low solution) |
|
009 |
202-0832
|
Full recovery indicator (red) |
1 |
(high recovery) |
|
011 |
202-0369
|
2 position rocker switch |
2 |
(scrub deck) |
|
012 |
202-0826
|
Emergency shut-off switch |
1 |
(optional) |
|
013 |
202-0827
|
Emergency legend plate |
1 |
(optional) |
|
014 |
202-0825
|
Emergency contact |
1 |
(optional) |
|
015 |
202-0343
|
50amp circuit breaker |
4 |
|
|
016 |
202-0348
|
15amp relay |
1 |
|
|
017 |
202-0521
|
Toggle switch |
1 |
(brush pressure) |
|
018 |
202-0097
|
Toggle switch |
5 |
(solution to side broom) |
|
019 |
202-0098
|
Toggle switch boot (gray) |
1 |
(water to side brooms) |
|
020 |
202-0822
|
2amp fuse |
1 |
|
|
021 |
202-0879
|
Push button switch |
1 |
(menu control on LCD display) |
|
022 |
202-1992
|
Toggle switch |
1 |
(side broom pressure) |
|
023 |
202-0541
|
Busbar |
2 |
|
|
024a |
202-0537
|
Key switch (brass and silver) |
1 |
(before 02.2006 and SN 44180) |
|
024b |
202-0374
|
Keys (pkg of 2) |
1 |
(before 02.2006 and SN 44180) |
|
024c |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
(after 02.2006 and SN 44179) (OEM) |
|
024d |
991-1634
|
Key (pkg of 2) |
1 |
(after 02.2006 and SN 44179) |
|
024d |
991-5161
|
Key switch with keys |
1 |
(after 02.2006 and SN 44179) (NON-OEM) |
|
025 |
999-0965
|
Screw 10-32 x 1/2 button head socket cap stainless steel |
4 |
|
|
026 |
202-1355
|
Toggle switch protective boot (black) |
1 |
(down pressure) |
|
028 |
999-0190
|
Nut 1/4-20 hex plain finish |
14 |
|
|
029 |
202-1864
|
Toggle switch protective boot (red) |
1 |
(forward/reverse) |
|
030 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
4 |
|
|
031 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
032 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
|
033 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
12 |
|
|
034 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
035 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
(spray hose) |
|
036 |
202-1976
|
Toggle switch protective boot (white) |
1 |
(vacuum motor) |
|
037 |
202-1866
|
Toggle switch protective boot (green) |
1 |
(recycling) |
|
038 |
202-0830
|
Busbar (5 hole) |
4 |
|
|
039 |
202-1977
|
Toggle switch protective boot (yellow) |
1 |
(side broom pressure) |
|
040 |
202-0819
|
Bracket |
1 |
|
|
041 |
202-1369
|
Main controller |
1 |
(used on machines with SN 290 or 291-2901 or greater) (when ordering this part be sure to order part number 202-2271. 202-2271 is sent out at no charge per Tomcat) |
|
043 |
202-1979
|
Control panel top plate |
1 |
|
|
044 |
202-0535
|
Speed control potentiometer |
1 |
(solution) |
|
045 |
202-0990
|
Control knob (blue) |
1 |
|
|
N/S |
202-1343
|
Brush motor to central command board wire assy (OBSOLETE) |
|
|
|
