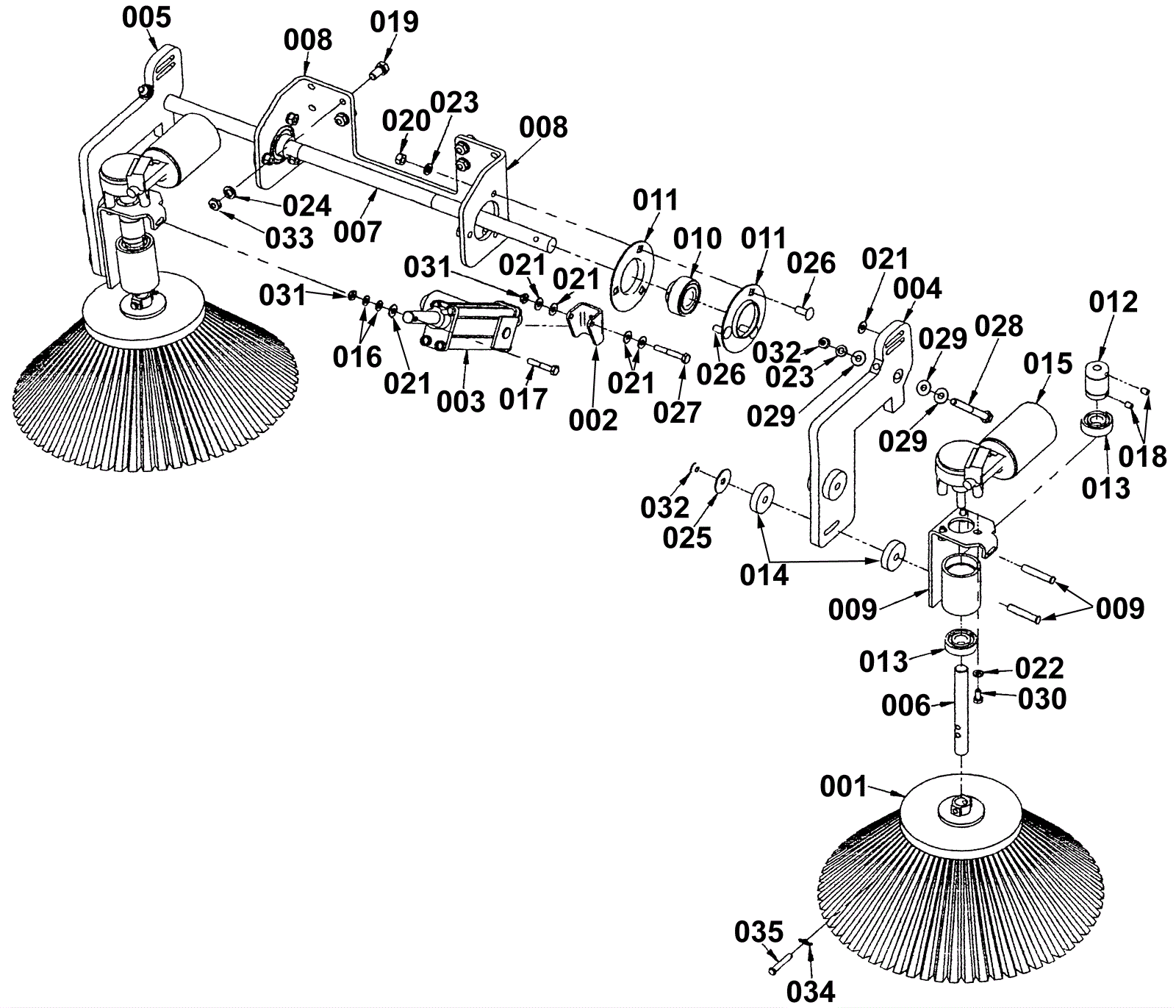

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1495
|
Polypropylene side broom |
2 |
|
|
002 |
202-2133
|
Actuator bracket |
1 |
|
|
003 |
202-2134
|
Actuator |
1 |
|
|
004 |
202-2135
|
Left side broom lift arm |
1 |
|
|
005 |
202-2136
|
Right side broom lift arm |
1 |
|
|
006 |
202-2137
|
Side broom drive shaft |
2 |
|
|
007 |
202-2138
|
Side broom suspension axle shaft |
1 |
|
|
008 |
202-2139
|
Axle support bracket |
1 |
|
|
009 |
202-5215
|
Motor mount assembly |
2 |
|
|
010 |
202-0142
|
Upper steering bearing |
2 |
|
|
011 |
202-5311
|
Bolt 5/16 x 3/4 shoulder stainless steel |
4 |
|
|
012 |
202-2142
|
Drive coupling |
2 |
|
|
013 |
202-2143
|
Drive tube bearing |
4 |
|
|
014 |
202-0151
|
Grommet |
8 |
|
|
015 |
202-2144
|
Side broom motor |
2 |
|
|
016 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
2 |
|
|
017 |
999-0164
|
Bolt 1/4-20 x 1 1/2 hex head grade 8 plain finish |
1 |
|
|
018 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
4 |
|
|
019 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
020 |
999-0593
|
Nut 5/16-18 hex stainless steel |
6 |
|
|
021 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
022 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
023 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
8 |
|
|
024 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
8 |
|
|
025 |
999-0975
|
Washer 1/4 x 1 1/4 fender stainless steel |
4 |
|
|
026 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
6 |
|
|
027 |
999-0976
|
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
1 |
|
|
028 |
999-0977
|
Screw 5/16-18 x 3 1/2 hex head stainless steel |
2 |
|
|
029 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
6 |
|
|
030 |
999-0978
|
Bolt M6-1 x 14mm hex head stainless steel |
6 |
|
|
031 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
032 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
033 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
8 |
|
|
034 |
202-0585
|
Cotter ring |
2 |
|
|
035 |
202-0805
|
Clevis pin |
2 |
|
|
