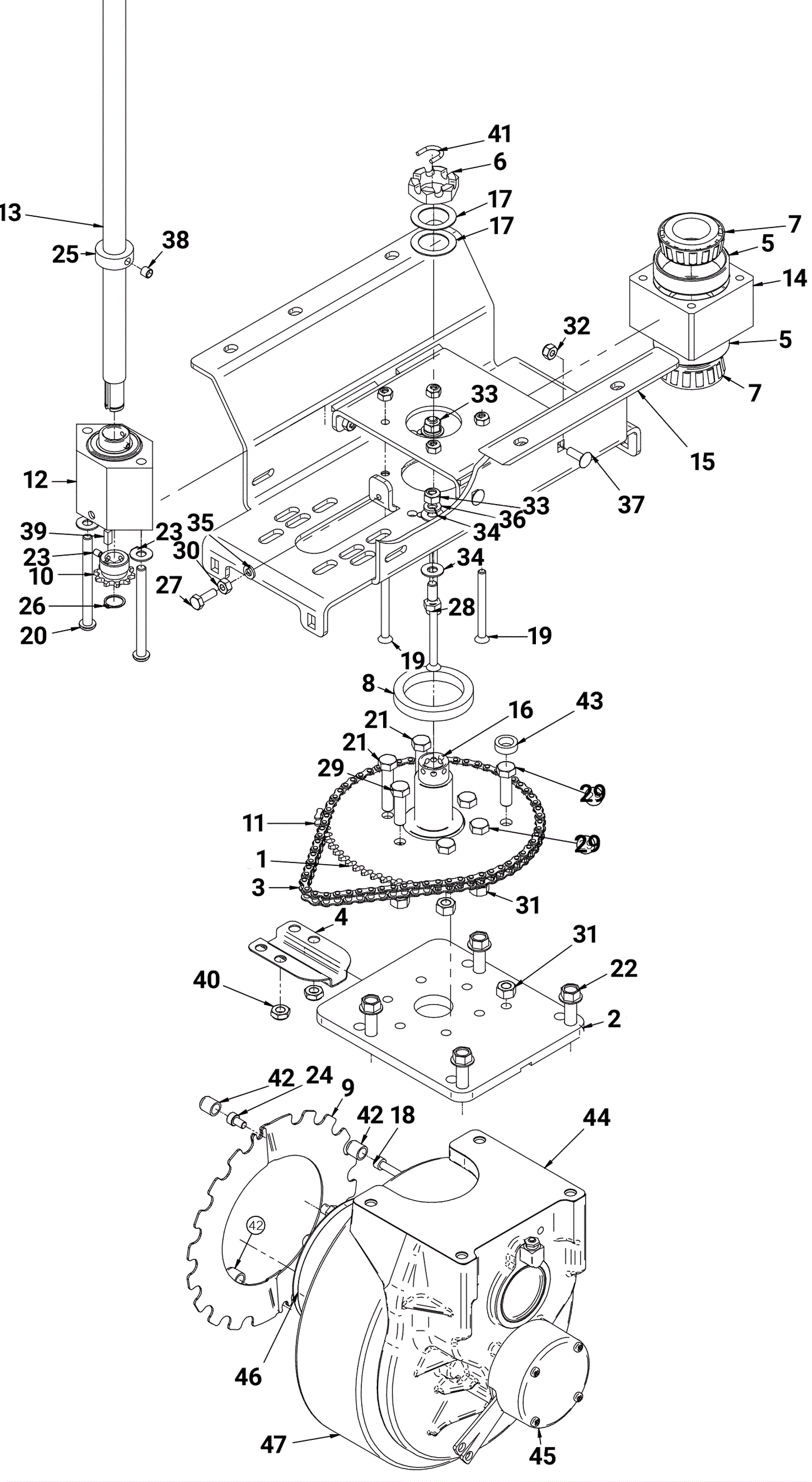

GTX V2.0 29 INCH Front Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-1894 60 toothed sprocket $79.31 1 usually ships 1-5 days
2 202-1896 Pivot plate $125.95 1 usually ships 1-5 days
3 202-1897 Steering chain $37.73 1 usually ships 3-11 days
4 202-2960 Wire guide $23.76 1 usually ships 3-11 days
5 202-0767 Bearing cap $24.86 2 usually ships 3-11 days
6 202-1166 Slotted castle nut $9.35 1 usually ships 3-11 days
7 202-5067 Tapered roller bearing $34.98 2 usually ships 3-11 days
8 202-5068 Bearing seal $5.50 1 usually ships 3-11 days
9 202-5069 Drive guard $15.07 2 usually ships 1-5 days
10 202-0280 10 toothed sprocket $31.13 1 usually ships 3-11 days
11 202-0283 Master link $5.50 1 usually ships 3-11 days
12 202-5549 Bearing housing assembly $216.81 1 usually ships 3-11 days
13 202-4296 Lower steering shaft $117.49 1 usually ships 1-5 days
14 202-9637 Bearing block assembly $228.36 1 usually ships 3-11 days
15 202-4297 10 inch drop plate assembly $388.53 1 usually ships 1-5 days
16 202-9638 Steering spindle $126.83 1 usually ships 3-11 days
17 202-1040 Washer $6.71 2 usually ships 3-11 days
18 999-1300 Screw M6-1 x 25mm socket head stainless steel $1.10 10 usually ships 1-5 days
19 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
20 999-1909 Screw 5/16-18 x 3 1/2 button socket cap SS $6.82 2 usually ships 1-5 days
21 999-0857 Screw 3/8-24 x 1 3/4 hex head stainless steel $1.51 2 ships same day
22 999-9091 Screw M10-1.5 x 30mm hex head stainless steel $4.14 4 ships same day
23 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
24 999-1908 Screw M6-1 x 10mm hex head stainless steel $0.99 2 ships same day
25 202-2216 Shaft collar with set screw $5.50 1 usually ships 3-11 days
26 202-0281 Snap ring $5.50 1 usually ships 3-11 days
27 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
28 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
29 202-9351 Screw,Hex Cap,3/8-24x1-1/4 inch Stainless $5.50 5 usually ships 3-11 days
30 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
31 999-0169 Nut 3/8-24 hex jam plain finish $0.99 7 ships same day
32 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
33 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
34 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
35 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
36 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
37 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
38 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
39 202-0278 Square keyway $5.50 1 usually ships 3-11 days
40 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
41 202-2967 S hook $5.50 1 usually ships 3-11 days
42 202-9556 Cap, Vinyl, 1/2 inch $5.50 12 usually ships 3-11 days
43 202-3613 Tubing (clear) Call for price 1 usually ships 3-11 days
44a 202-1893 Drive wheel assembly w/motor - includes brake $2,588.63 1 usually ships 3-11 days
44b 202-5047 36V 10 inch front drive wheel $3,100.24 1 (option) usually ships 1-5 days
44c 202-5059 10 inch front wheel drive motor assembly $2,588.63 1 (grey) (option) usually ships 3-11 days
45 202-5075 36V electric brake $701.78 1 usually ships 3-11 days
46a 202-3524 Front wheel drive motor $1,002.98 1 usually ships 3-11 days
46b 202-5072 36V brush motor kit with springs $267.30 1 usually ships 1-5 days
46c 202-7746 Traction Harness XR/GTX $85.14 1 usually ships 3-11 days
47a 202-4298 10 inch rough tread tire (gray) $601.91 1 usually ships 1-5 days
47b 202-5039 10 inch tire and wheel (black) $837.76 1 ships same day
47c 202-5658 P-7 tire (OBSOLETE) Call for price 1 usually ships 1-5 days
