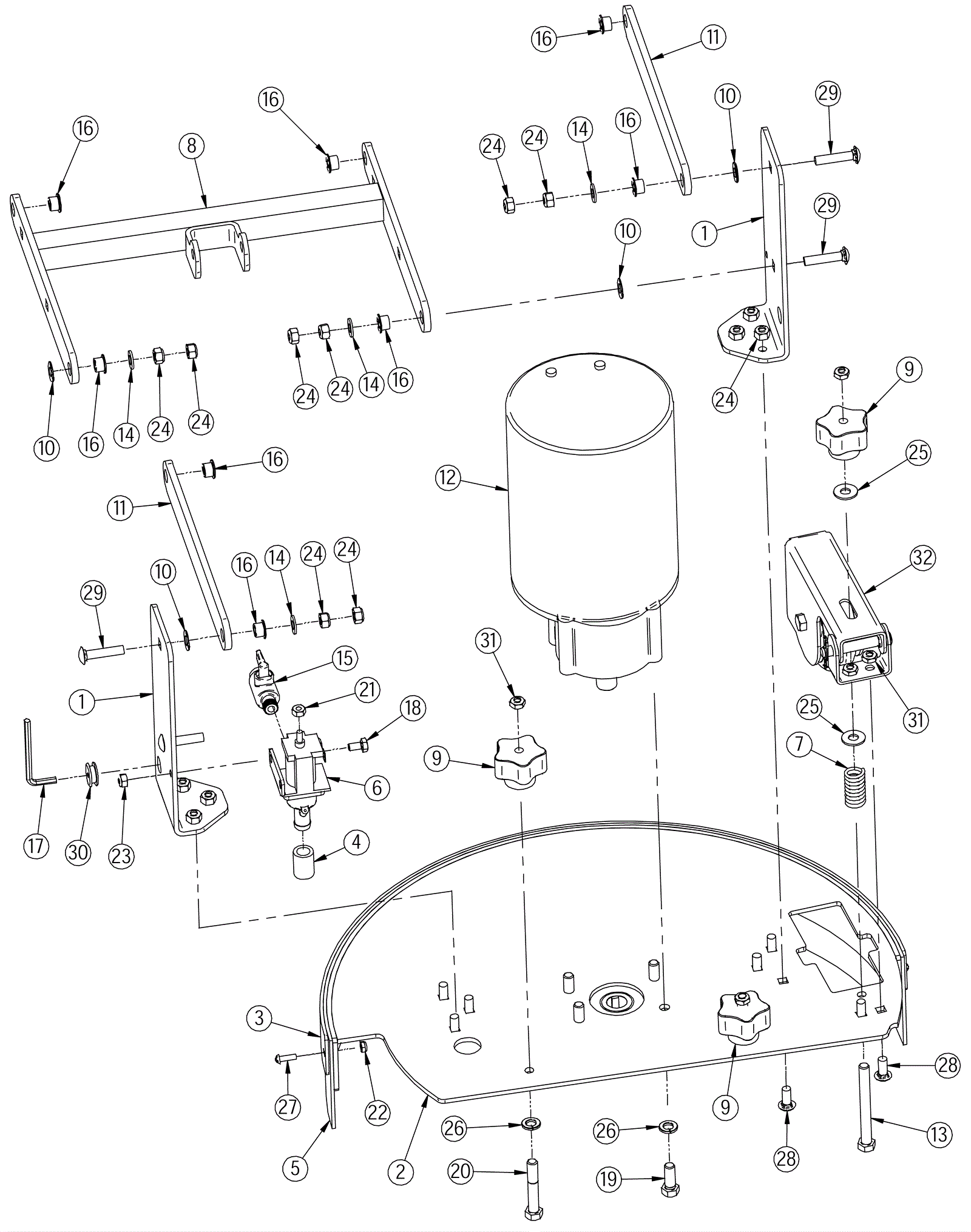

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2081
|
20 inch Lift Bracket |
2 |
|
|
2 |
202-2082
|
20 inch Disk Deck |
1 |
|
|
3 |
202-2083
|
20 inch Deck Curtain Band |
1 |
|
|
4 |
202-2084
|
Clear Tube |
1 |
|
|
5 |
202-2085
|
20 inch Deck Curtain Rear |
1 |
|
|
6 |
202-2086
|
Adjustable Solution Flow Valve |
1 |
|
|
7 |
202-0813
|
Spring |
1 |
|
|
8 |
202-2235
|
Lateral arm |
1 |
|
|
9a |
202-0809
|
Brass star knob |
3 |
|
|
9b |
991-2411
|
Brass star knob |
3 |
(NON-OEM) |
|
10 |
202-1181
|
Washer 1/2 flat bronze |
4 |
|
|
11 |
202-0324
|
Scrub head lateral arm |
2 |
|
|
12 |
202-0480
|
24V 3/4HP brush motor |
1 |
|
|
13 |
202-1054
|
Bolt 3/8-24 x 3 1/2 hex head stainless steel |
1 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
15 |
202-2089
|
Ball Valve 1/4 inch |
1 |
|
|
16 |
202-3312
|
Flanged bearing |
8 |
|
|
17 |
202-2091
|
Hex L-Key 3/16 (OBSOLETE) |
1 |
|
|
18 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
1 |
|
|
19 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
|
20 |
999-0994
|
Screw 3/8-24 x 2 1/4 hex head stainless steel |
2 |
|
|
21 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
22 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
6 |
|
|
23 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
24 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
14 |
|
|
25 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
26 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
27 |
999-1467
|
Screw #10-32 x 5/8 round head slotted stainless steel |
6 |
|
|
28 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
8 |
|
|
29 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
30 |
202-2093
|
Grommet (OBSOLETE) |
1 |
|
|
31 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
5 |
|
|
32 |
N/A
|
Not available |
1 |
(Scrub deck wheel assembly) |
|
