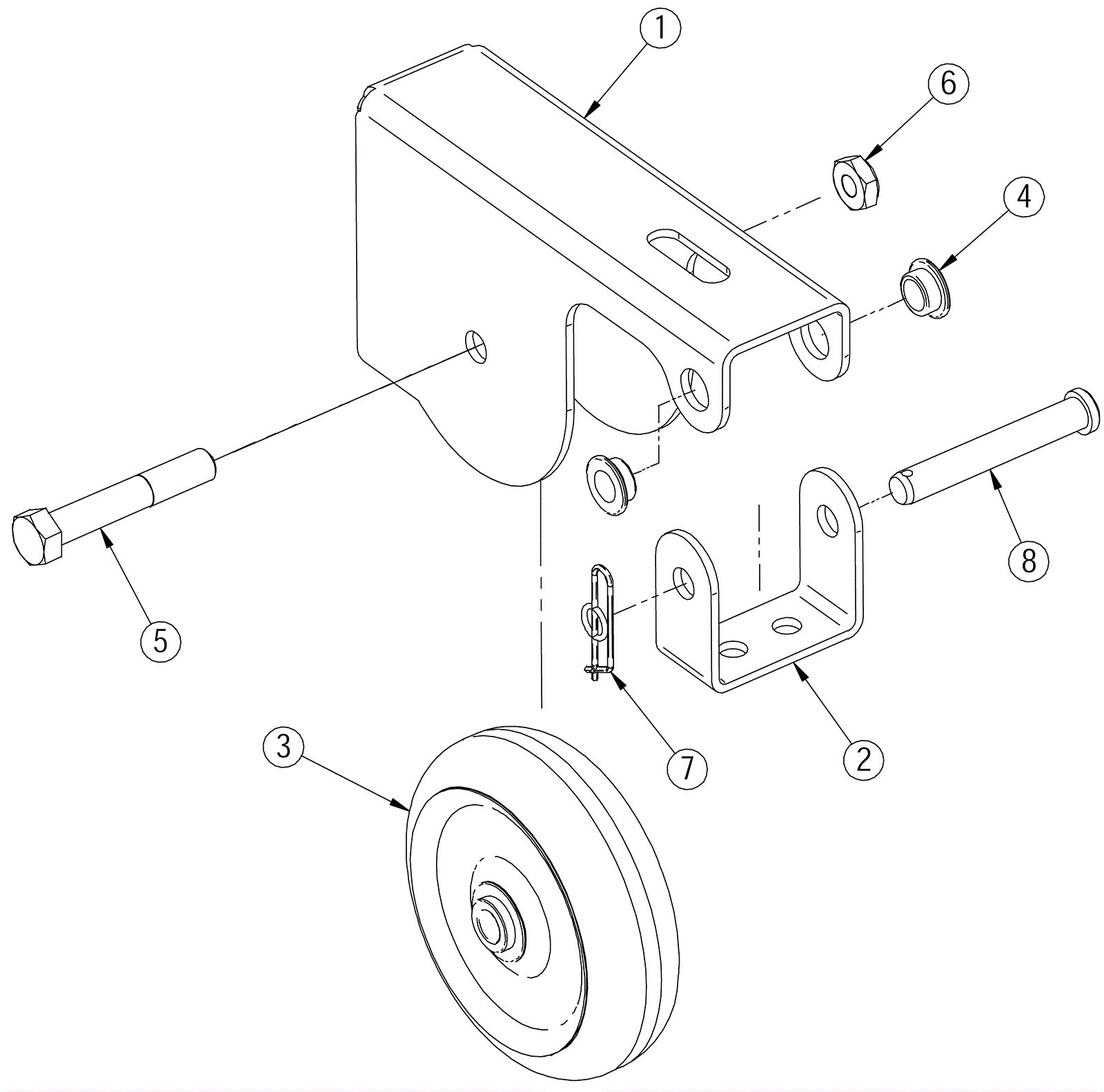

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2078
|
Deck Wheel Pivot Bracket |
1 |
|
|
2 |
202-2079
|
Deck wheel pivot support |
1 |
|
|
3 |
202-2080
|
4.0 inch Wheel |
1 |
|
|
4 |
202-1239
|
Flanged bearing |
2 |
|
|
5 |
999-9076
|
Screw 3/8 -16 x 2 1/4 hex head stainless steel |
1 |
|
|
6 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
1 |
|
|
7 |
202-2036
|
Cotter pin |
1 |
|
|
8 |
202-5193
|
Clevis pin 3/8 x 2 |
1 |
|
|
