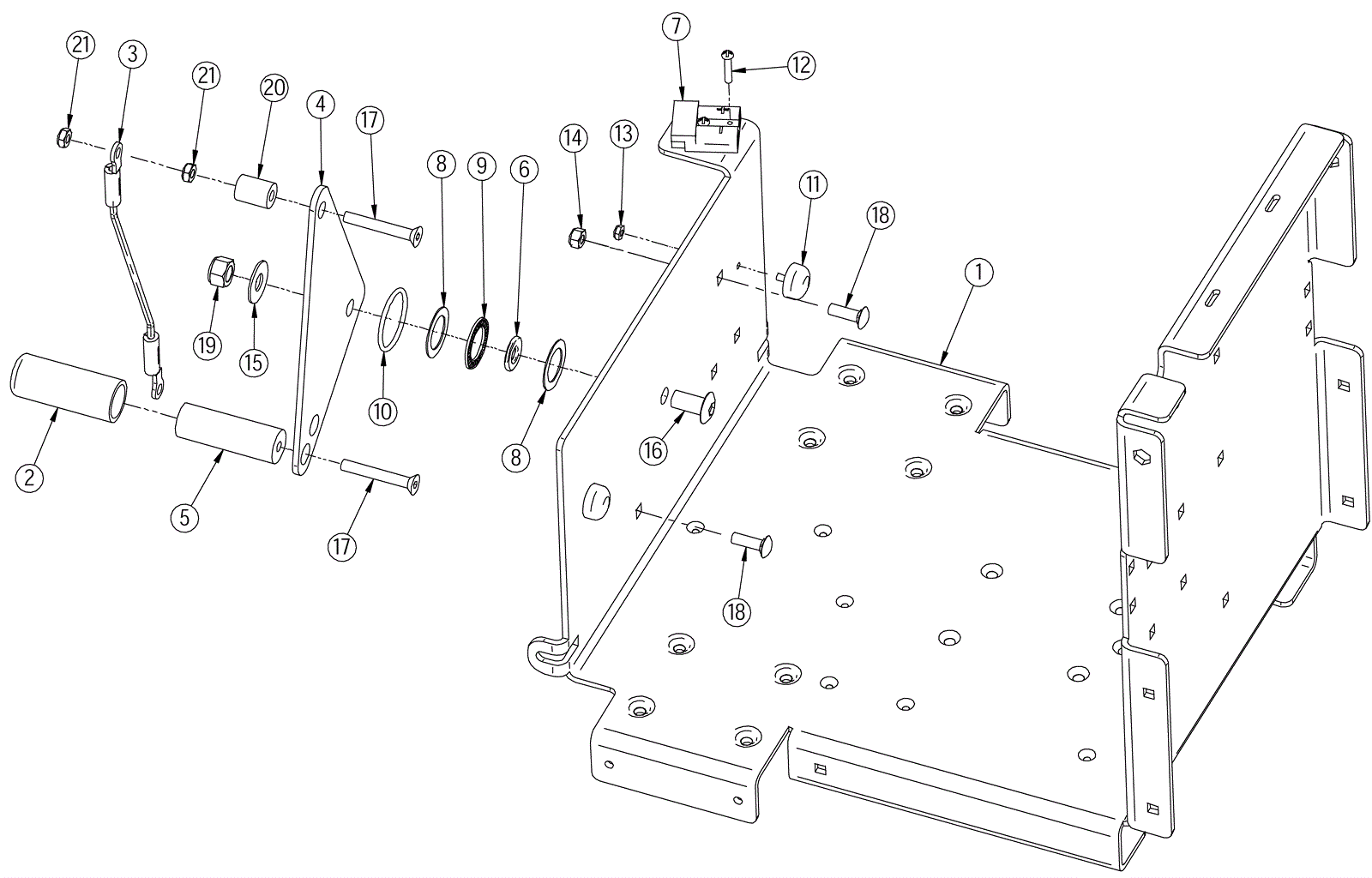

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2219
|
Main frame |
1 |
|
|
2 |
202-2072
|
Rubber cover-Yellow |
1 |
|
|
3 |
202-2073
|
Squeegee lift cable |
1 |
|
|
4 |
202-2074
|
Squeegee pivot plate |
1 |
|
|
5 |
202-1276
|
Upper standoff |
1 |
|
|
6 |
202-1161
|
Washer 1/2 flat thick bronze |
1 |
|
|
7 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
8 |
202-1040
|
Washer |
2 |
|
|
9 |
202-0161
|
Thrust bearing |
1 |
|
|
10 |
202-0162
|
O-ring |
1 |
|
|
11 |
202-3543
|
10-24 x 1 threaded stud |
2 |
|
|
12 |
999-0995
|
Screw 8-32 x 1 round head phillips zinc plated |
2 |
|
|
13 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
14 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
15 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
1 |
|
|
16 |
999-0561
|
Bolt 1/2-13 x 1 hex head stainless steel |
1 |
|
|
17 |
202-2076
|
Screw 5/16 - 18 x 2-1/4 stainless steel |
2 |
|
|
18 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
2 |
|
|
19 |
999-0118
|
Nut 1/2-13 nylon insert lock zinc plated |
1 |
|
|
20 |
202-2077
|
Spacer (OBSOLETE) |
1 |
|
|
21 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
2 |
|
|
