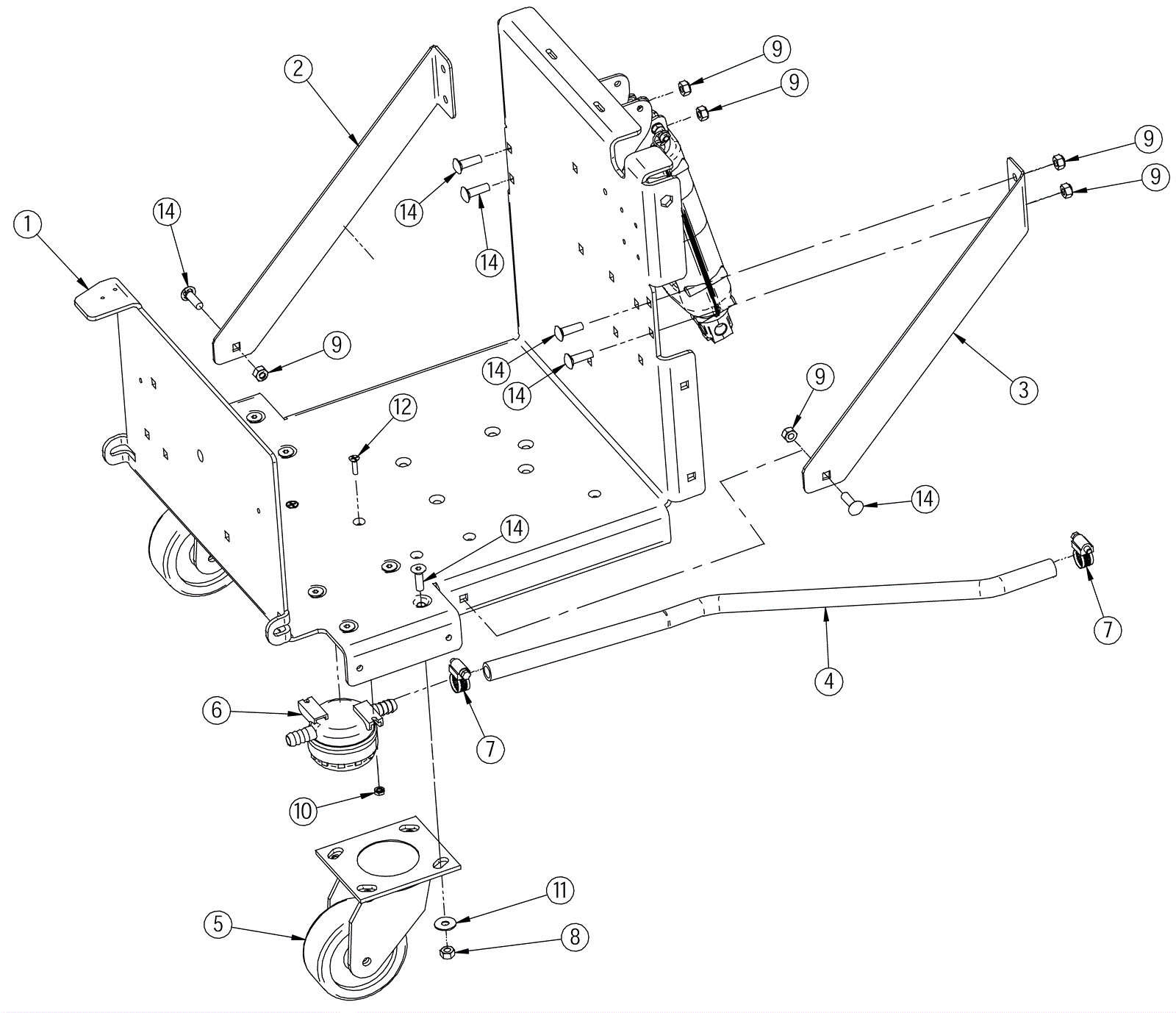

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2219
|
Main frame |
1 |
|
|
2 |
202-2061
|
Frame Support |
1 |
|
|
3 |
202-2062
|
Frame Support RH |
1 |
|
|
4 |
202-2063
|
Clear Tube |
1 |
|
|
5 |
202-2064
|
Caster wheel (red) |
2 |
|
|
6 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
7 |
202-2066
|
Hose clamp |
2 |
|
|
8 |
999-0593
|
Nut 5/16-18 hex stainless steel |
4 |
|
|
9 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
10 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
11 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
12 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
|
13 |
999-0734
|
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
8 |
|
|
14 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
6 |
|
|
