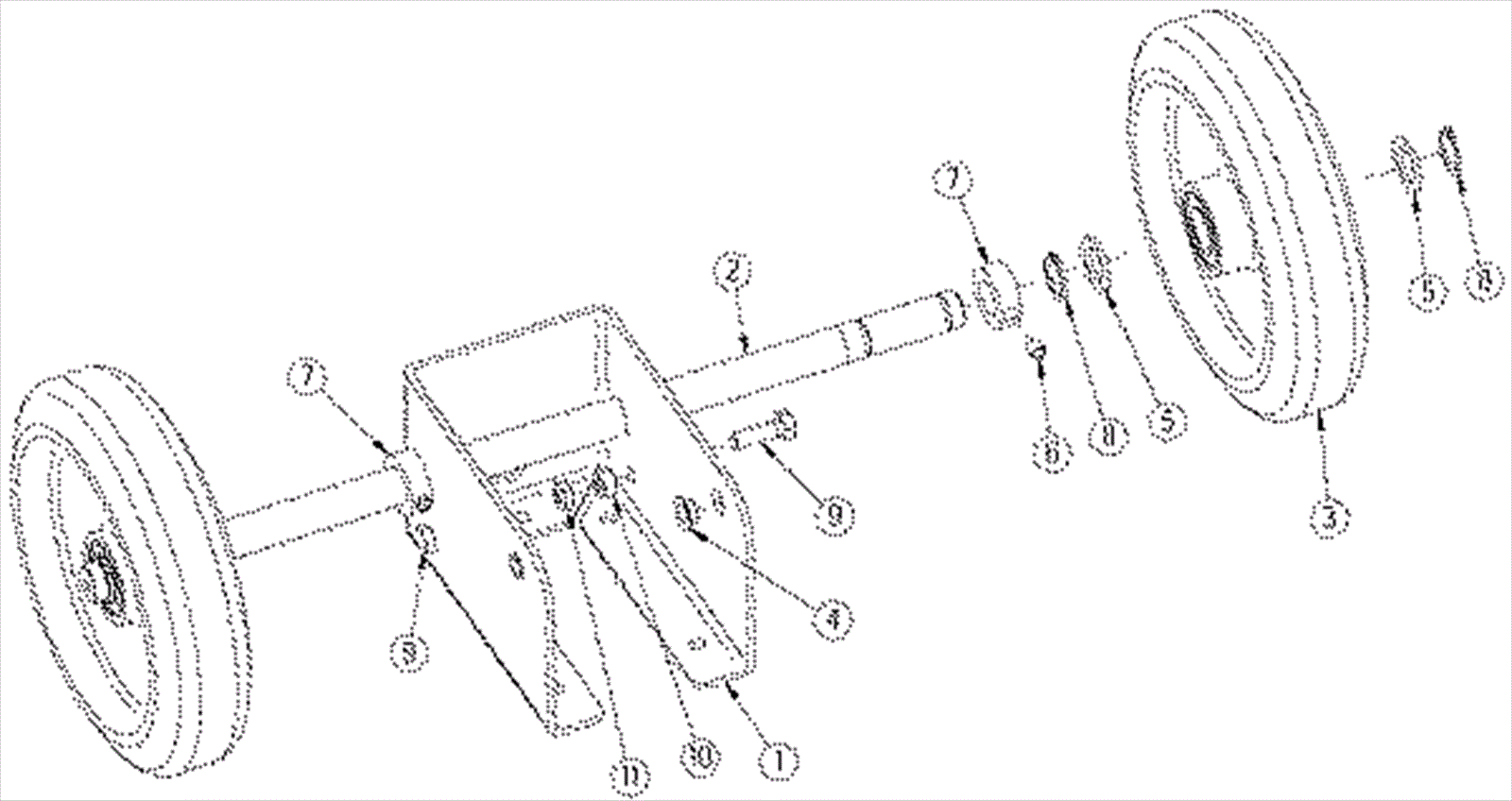

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2213
|
Axle support |
1 |
|
|
2 |
202-2214
|
Axle |
1 |
|
|
3 |
202-2215
|
Tire (gray) |
2 |
|
|
4 |
202-1239
|
Flanged bearing |
2 |
|
|
5 |
202-1204
|
Washer 3/4 x 1 1/8 flat stainless steel |
4 |
|
|
6 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
2 |
|
|
7 |
202-2216
|
Shaft collar with set screw |
2 |
|
|
8 |
202-2048
|
3/4 inch snap ring |
4 |
|
|
9 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
10 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
11 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
2 |
|
|
