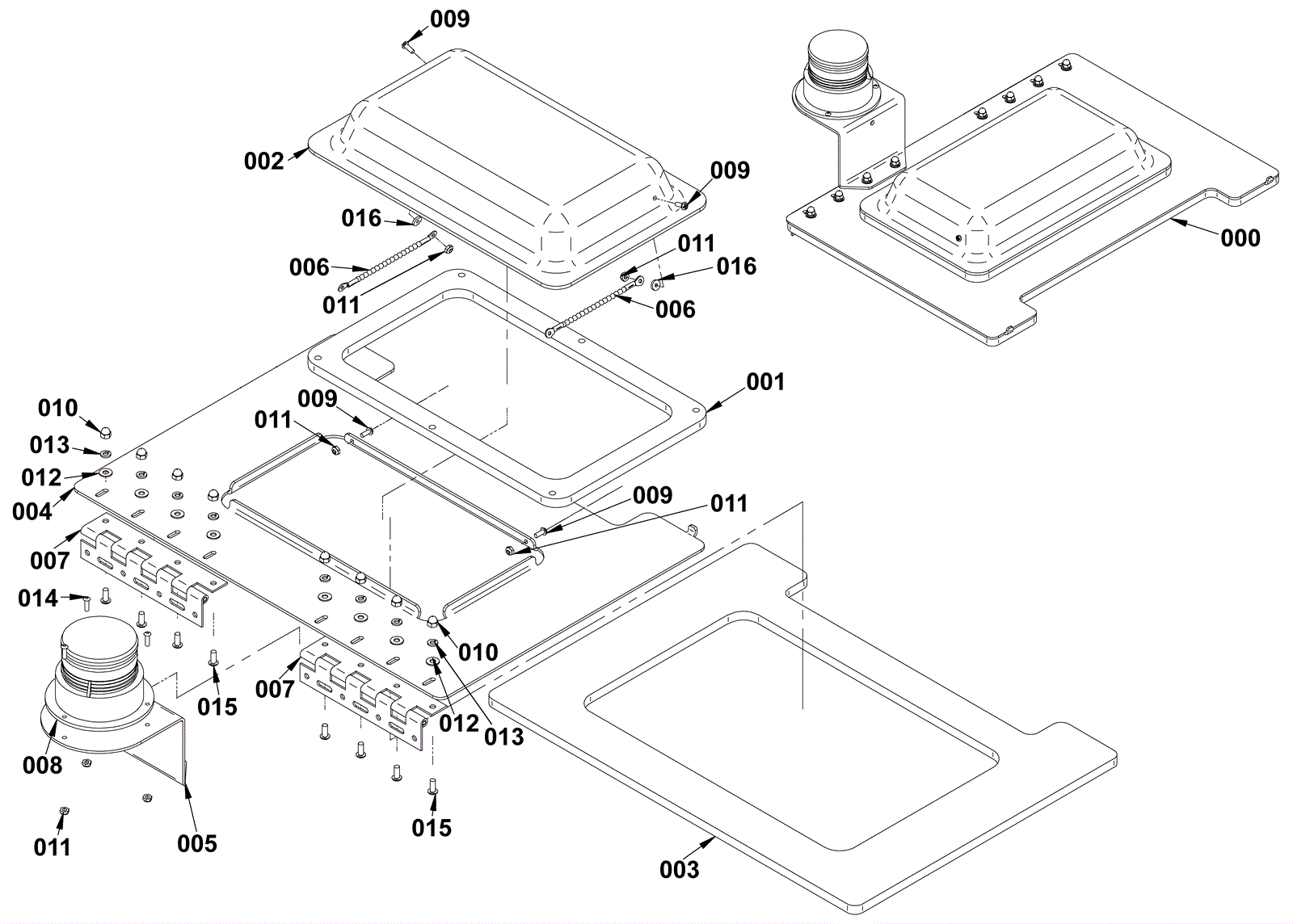

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
202-3522
|
Stainless steel recovery lid assembly |
1 |
|
|
001 |
202-1982
|
Tank lid gasket (upper) |
1 |
|
|
002 |
202-1983
|
Tank lid (upper) (clear) |
1 |
|
|
003 |
202-1980
|
Tank lid gasket |
1 |
|
|
004 |
202-1981
|
Tank lid |
1 |
|
|
005 |
202-3521
|
Strobe light bracket |
1 |
|
|
006 |
202-3127
|
4 inch chain (6 inch no longer available) |
2 |
|
|
007 |
202-0403
|
Hinge |
2 |
|
|
008 |
202-0383
|
Strobe light |
1 |
|
|
009 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
4 |
|
|
010 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
8 |
|
|
011 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
7 |
|
|
012 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
013 |
999-0632
|
Washer 1/4 split lock stainless steel |
8 |
|
|
014 |
999-1479
|
Screw 10-32 x 5/8 button head socket cap stainless steel |
3 |
|
|
015 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
8 |
|
|
016 |
202-3244
|
Neoprene washer |
2 |
|
|
