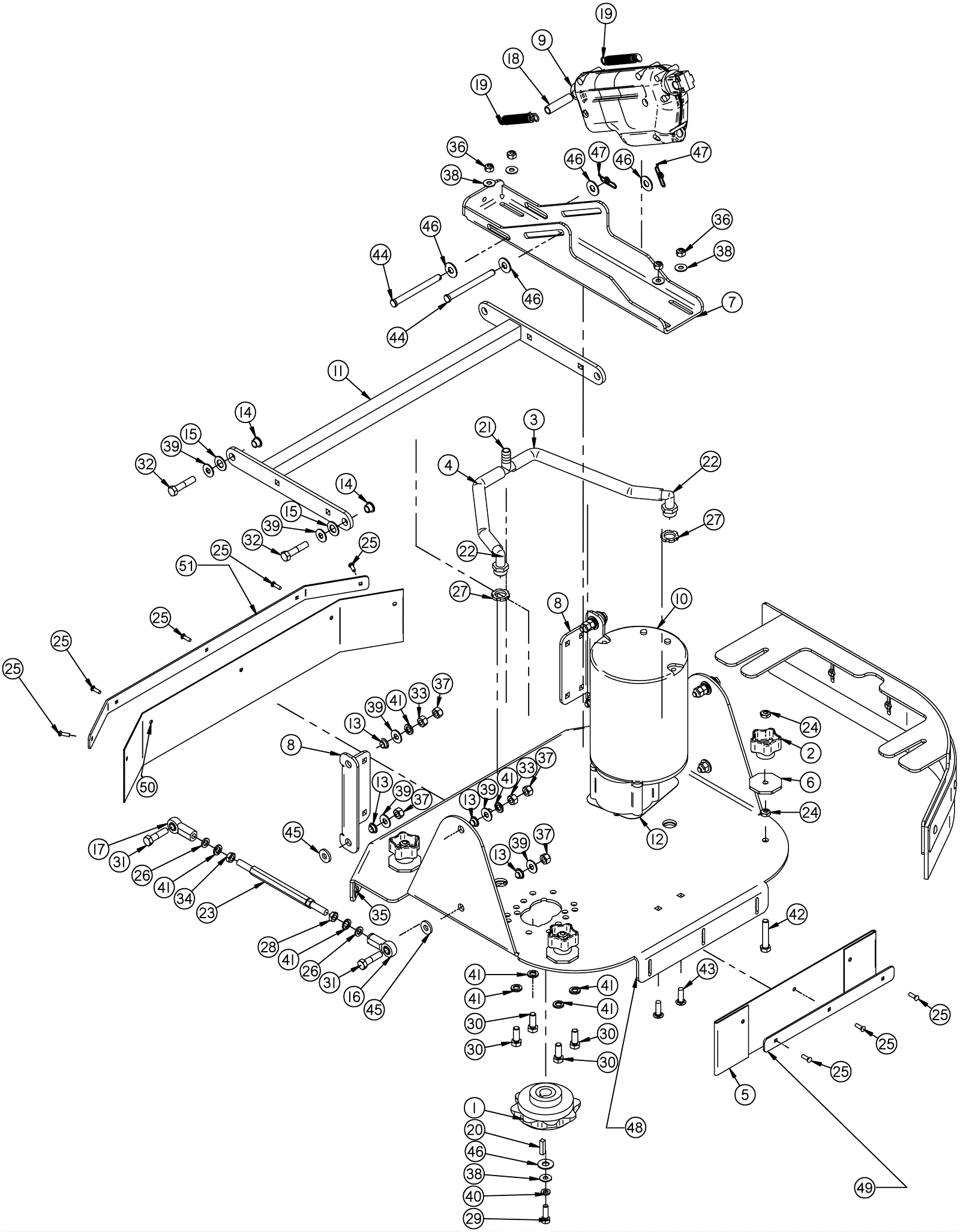

GTX 30 Scrub Deck Assembly - DISK

#PartDescriptionPriceReqNotesAvailability
1 202-0330 Metal brush driver $147.95 2 usually ships 3-11 days
2 202-0809 Brass star knob $41.14 4 usually ships 3-11 days
3 202-2976 Hose 3/4 x 16 inch $9.64 1 usually ships 3-11 days
4 202-2976 Hose 3/4 x 16 inch $9.64 1 usually ships 3-11 days
5 202-1948 34 inch rear curtain band $13.97 1 usually ships 3-11 days
6 202-1946 Adjustment knob plate $25.30 4 usually ships 3-11 days
7 202-1942 Bracket $110.99 1 usually ships 3-11 days
8 202-1879 Bracket $39.93 2 usually ships 3-11 days
9 202-1950 36V actuator $469.26 1 usually ships 3-11 days
10a 991-2122 36V .75HP brush motor assembly with gear box $1,099.40 2 (you will also need to order 999-0130) ships same day
10b 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 ships same day
11 202-1971 Lateral arm $151.58 1 usually ships 3-11 days
12 202-3448 Brush motor cap $10.34 2 usually ships 3-11 days
13 202-1239 Flanged bearing $5.50 8 usually ships 3-11 days
14 202-0754 Flanged bearing $5.50 4 usually ships 3-11 days
15 202-1181 Washer 1/2 flat bronze $5.50 4 usually ships 3-11 days
16 202-3085 Left thread rod end $13.42 2 usually ships 3-11 days
17 202-3086 Right thread rod end $13.42 2 usually ships 3-11 days
18 202-3089 Sleeved bearing $9.79 1 usually ships 3-11 days
19 202-2208 Compression spring $6.38 2 ships same day
20 202-0331 Brush driver key (pkg of 2) $9.90 2 ships same day
21 202-0332 1/2 inch barbed tee $5.50 1 ships same day
22 202-0333 Elbow barb $5.50 2 ships same day
23 202-0629 Adjustable lateral arm $73.92 2 usually ships 3-11 days
24 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 8 ships same day
25 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 8 usually ships 1-5 days
26 202-3096 Shim $5.50 4 usually ships 3-11 days
27 999-0330 Nut 1/2-13 acorn brass $5.72 4 ships same day
28 202-3098 Nut hex jam left hand thread $5.50 2 usually ships 3-11 days
29 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
30 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
31 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel $5.50 4 usually ships 3-11 days
32 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 4 ships same day
33 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
34 202-3099 Nut $5.50 2 usually ships 3-11 days
35 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
36 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
37 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 8 ships same day
38 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
39 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 12 ships same day
40 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
41 999-0659 Washer 3/8 medium split lock stainless steel $0.39 16 ships same day
42 999-1567 Screw 3/8-24 x 2 hex head stainless steel $5.52 4 ships same day
43 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 4 ships same day
44 202-1968 Clevis pin $7.04 2 usually ships 3-11 days
45 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
46 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
47 202-2036 Cotter pin $8.25 2 usually ships 3-11 days
48a 202-1944 26 and 30 inch scrub deck $505.12 1 usually ships 1-5 days
48b 202-1958 34 inch scrub deck $322.74 1 usually ships 1-5 days
49a 202-1947 26 and 30 inch rear curtain band $19.03 1 usually ships 1-5 days
49b 202-1948 34 inch rear curtain band $13.97 1 usually ships 3-11 days
50a 202-1943 26 and 30 inch front curtain $15.07 1 usually ships 3-11 days
50b 202-1957 34 inch front curtain $17.49 1 usually ships 3-11 days
51a 202-2259 26 inch front curtain band $52.91 1 usually ships 1-5 days
51b 202-2260 30 inch front curtain band $34.98 1 usually ships 1-5 days
51c 202-1956 34 inch front curtain band $37.73 1 usually ships 3-11 days
