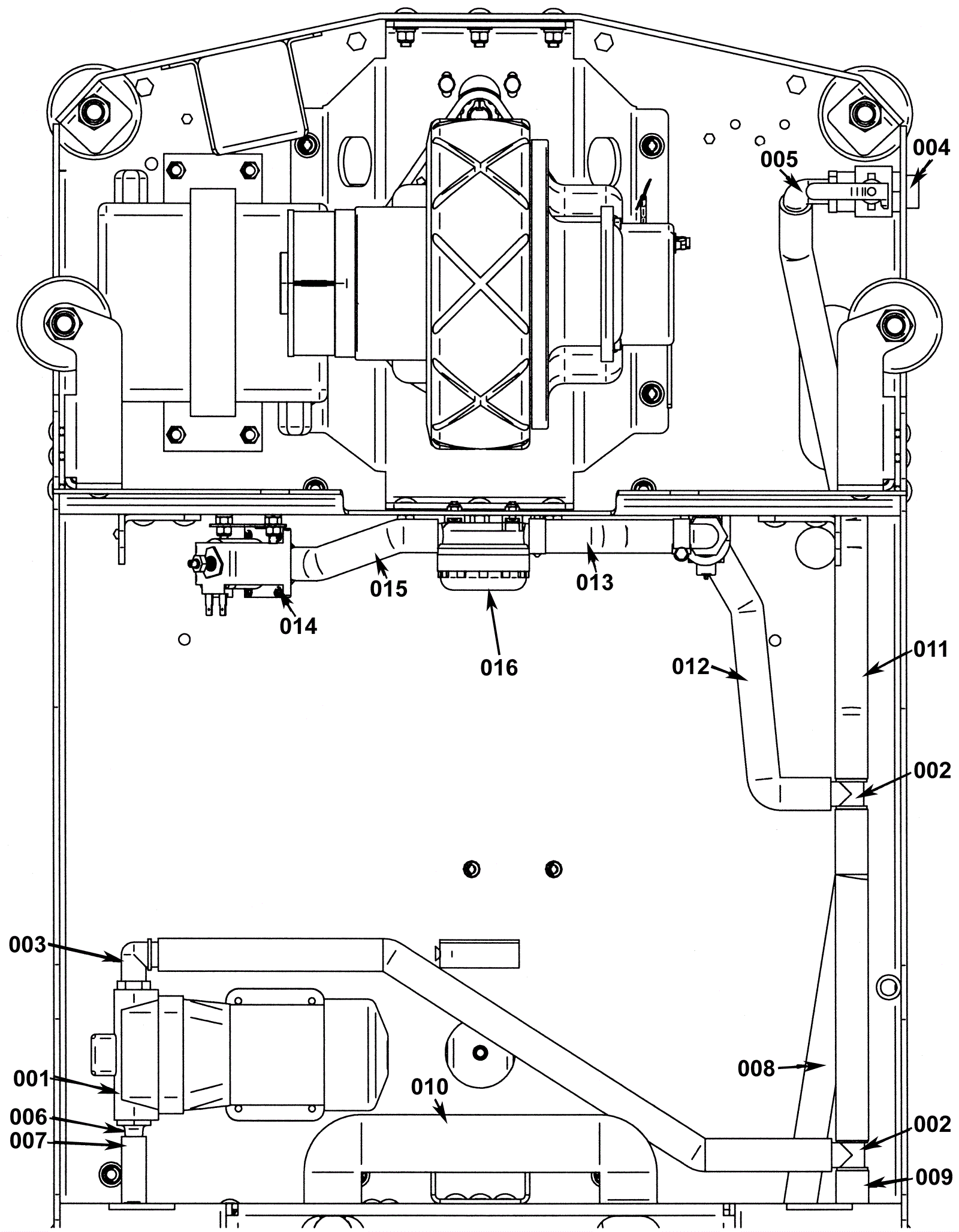

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2368
|
36V water jet pump |
1 |
|
|
002 |
202-1936
|
Barbed tee |
2 |
|
|
003 |
202-1004
|
Barbed elbow |
1 |
|
|
004 |
202-0684
|
Ball valve |
1 |
|
|
005 |
202-0884
|
Barbed elbow |
1 |
|
|
006 |
202-1017
|
Male barb 1/2 x 3/4 |
1 |
|
|
007 |
202-5025
|
12 foot hose (blue) |
1 |
|
|
008 |
202-2905
|
Hose 3/4 x 40 inch |
1 |
|
|
009 |
202-2906
|
Hose 3/4 x 20 inch (OBSOLETE) |
1 |
|
|
010 |
202-2280
|
Hose 2.5 x 18 inch |
1 |
|
|
011 |
202-2907
|
Solution drain hose 3/4 x 20 inch |
1 |
|
|
012 |
202-2908
|
Hose 3/4 x 6 1/4 inch |
1 |
|
|
013 |
202-2904
|
Hose 3/4 x 5 1/4 inch |
1 |
|
|
014 |
202-3038
|
36V solenoid valve |
1 |
|
|
015 |
202-2909
|
Hose 3/4 x 6 inch |
1 |
|
|
016 |
202-1882
|
Inline filter |
1 |
|
|
