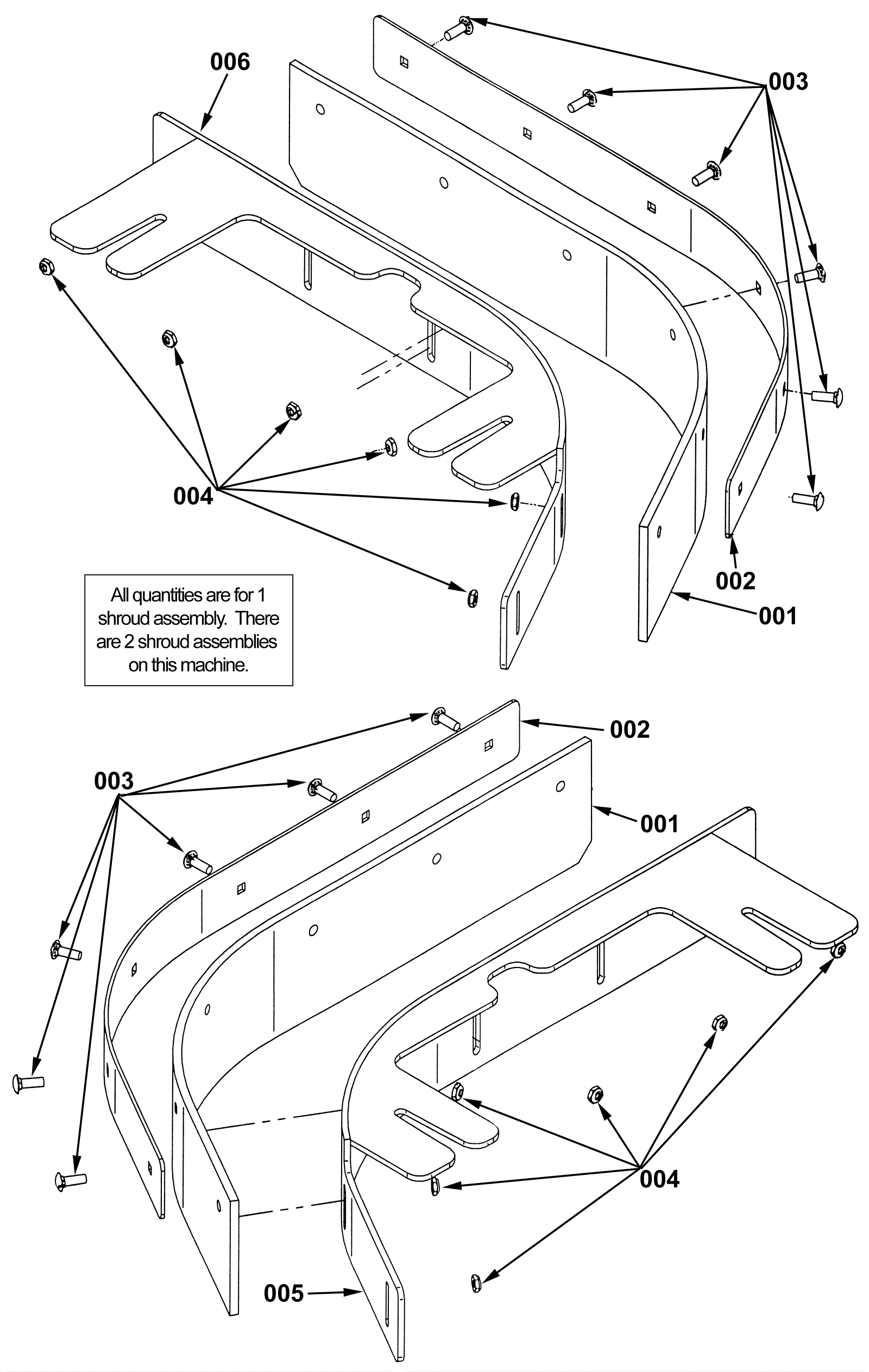

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-1995
|
Shroud curtain gum rubber (tan) |
2 |
|
usually ships 11-19 days |
001b |
202-4205
|
Side skirt |
2 |
|
usually ships 11-19 days |
001c |
202-3560
|
Shroud curtain urethane |
2 |
|
usually ships 11-19 days |
001d |
991-2408
|
Shroud curtain gum rubber (red) |
2 |
(NON-OEM) |
usually ships 10-19 days |
002 |
202-1996
|
Shroud curtain band |
1 |
|
usually ships 11-19 days |
003 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
6 |
|
usually ships 11-14 days |
004 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
usually ships 11-14 days |
005 |
202-2262
|
34 inch left shroud |
1 |
|
usually ships 1-5 days |
006 |
202-2264
|
34 inch right shroud |
1 |
|
usually ships 1-5 days |
