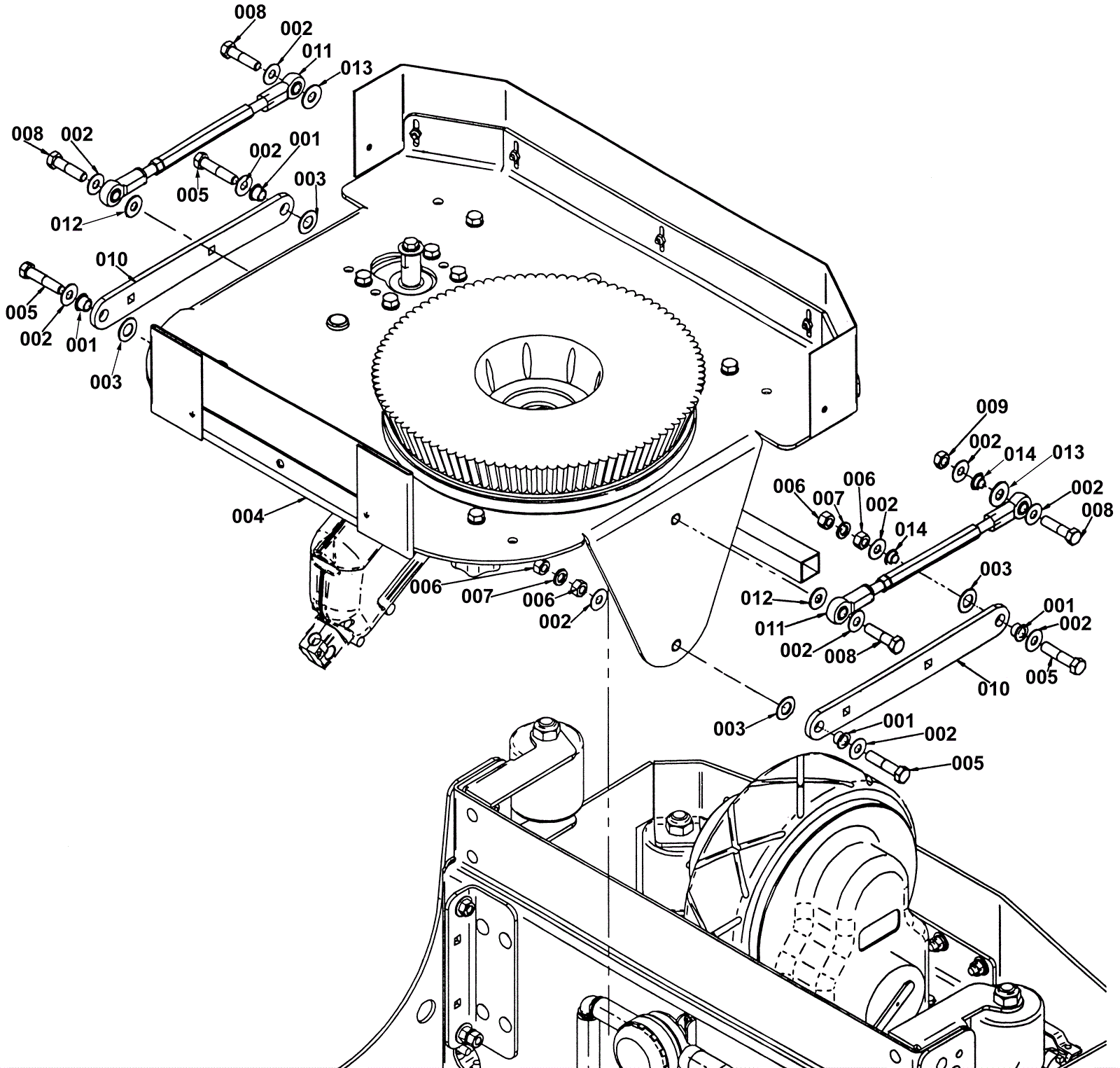

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0754
|
Flanged bearing |
4 |
|
|
002 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
11 |
|
|
003 |
202-1181
|
Washer 1/2 flat bronze |
4 |
|
|
004 |
202-1958
|
34 inch scrub deck |
1 |
|
|
005 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
3 |
|
|
006 |
999-0635
|
Nut 3/8-16 hex stainless steel |
8 |
|
|
007 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
008 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
4 |
|
|
009 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
4 |
|
|
010 |
202-1971
|
Lateral arm |
1 |
|
|
011 |
202-0629
|
Adjustable lateral arm |
2 |
|
|
012 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
013 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
014 |
202-1239
|
Flanged bearing |
4 |
|
|
