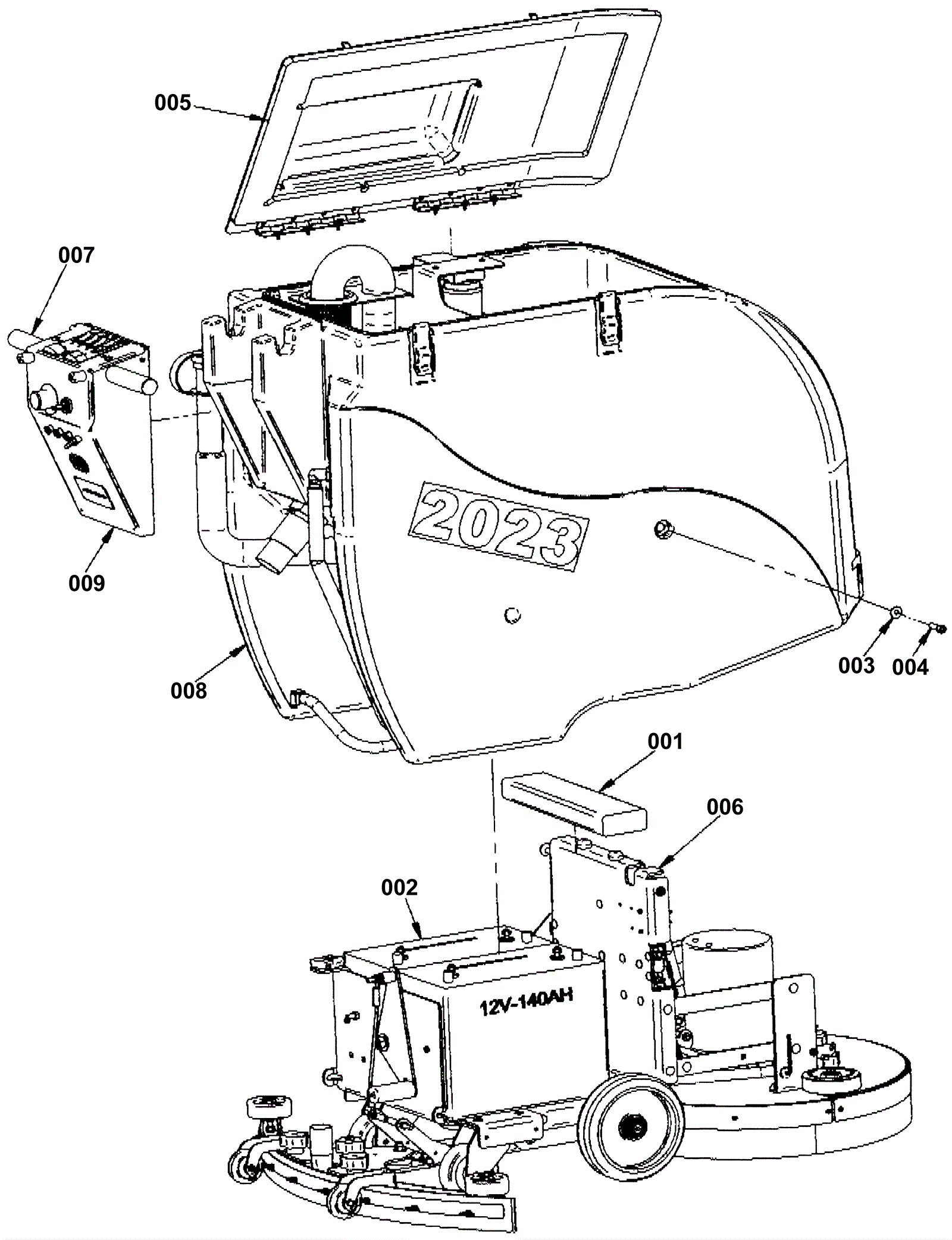

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2248
|
Board (OBSOLETE) |
1 |
|
|
002 |
162-0057
|
12V 150Ah wet battery |
1 |
|
|
003 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
004 |
999-0898
|
Screw 10-16 x 3/4 pan head phillips stainless steel type B |
1 |
|
|
005 |
N/A
|
Not available |
1 |
Tank lid assembly |
|
006 |
N/A
|
Not available |
1 |
Frame assembly |
|
007 |
N/A
|
Not available |
1 |
Handle bar assembly |
|
008 |
N/A
|
Not available |
1 |
Tank assembly |
|
009 |
N/A
|
Not available |
1 |
Control panel assembly |
|
