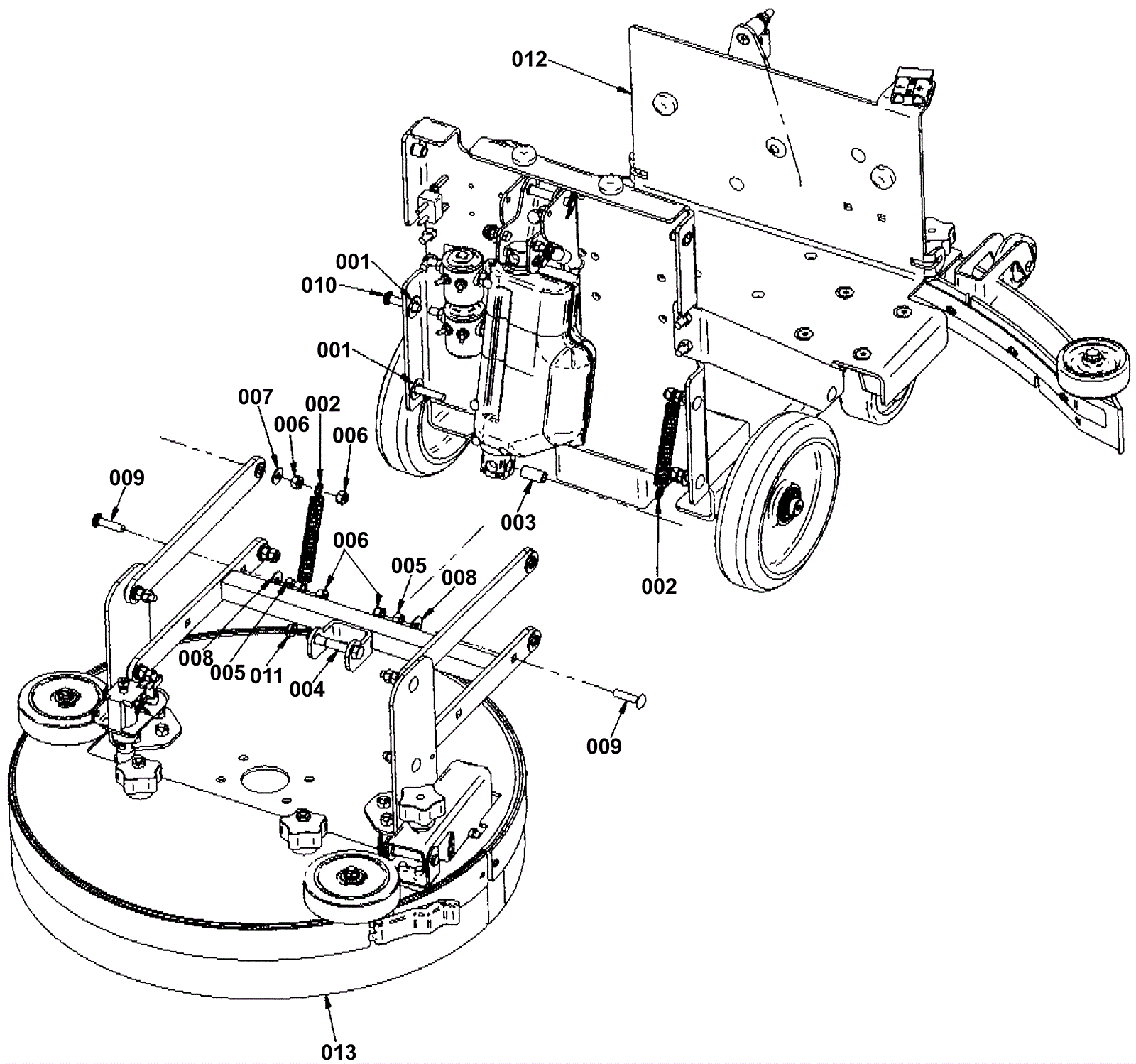

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1181
|
Washer 1/2 flat bronze |
1 |
|
|
002 |
202-2208
|
Compression spring |
2 |
|
|
003 |
202-1951
|
Sleeve |
1 |
|
|
004 |
999-0994
|
Screw 3/8-24 x 2 1/4 hex head stainless steel |
1 |
|
|
005 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
006 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
007 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
008 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
009 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
2 |
|
|
010 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
1 |
|
|
011 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
012 |
N/A
|
Not available |
1 |
Frame assembly |
|
013 |
N/A
|
Not available |
1 |
Scrub deck assembly |
|
N/S |
202-2215
|
Tire (gray) |
2 |
|
|
N/S |
202-2086
|
Adjustable Solution Flow Valve |
1 |
|
|
N/S |
202-2089
|
Ball Valve 1/4 inch |
1 |
|
|
N/S |
202-2064
|
Caster wheel (red) |
2 |
|
|
