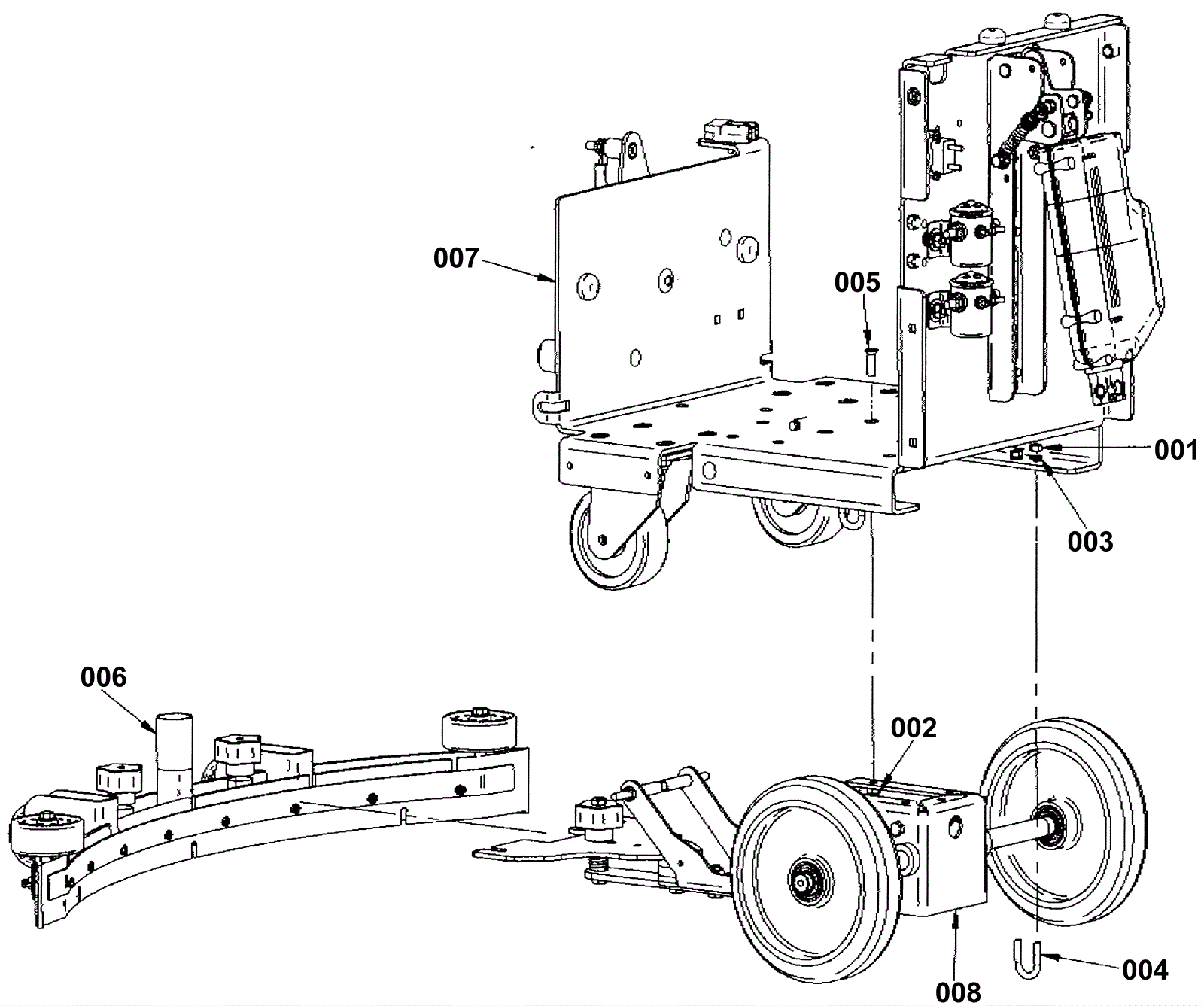

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0609
|
Nut 1/4-20 hex stainless steel |
4 |
|
|
002 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
003 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
004 |
999-0917
|
U bolt |
2 |
|
|
005 |
999-0918
|
Screw 5/16-18 x 1 flat head slotted brass |
5 |
|
|
006 |
N/A
|
Not available |
1 |
Squeegee assembly 32inch |
|
007 |
N/A
|
Not available |
1 |
Frame assembly |
|
008 |
N/A
|
Not available |
1 |
Squeegee suspension assembly |
|
