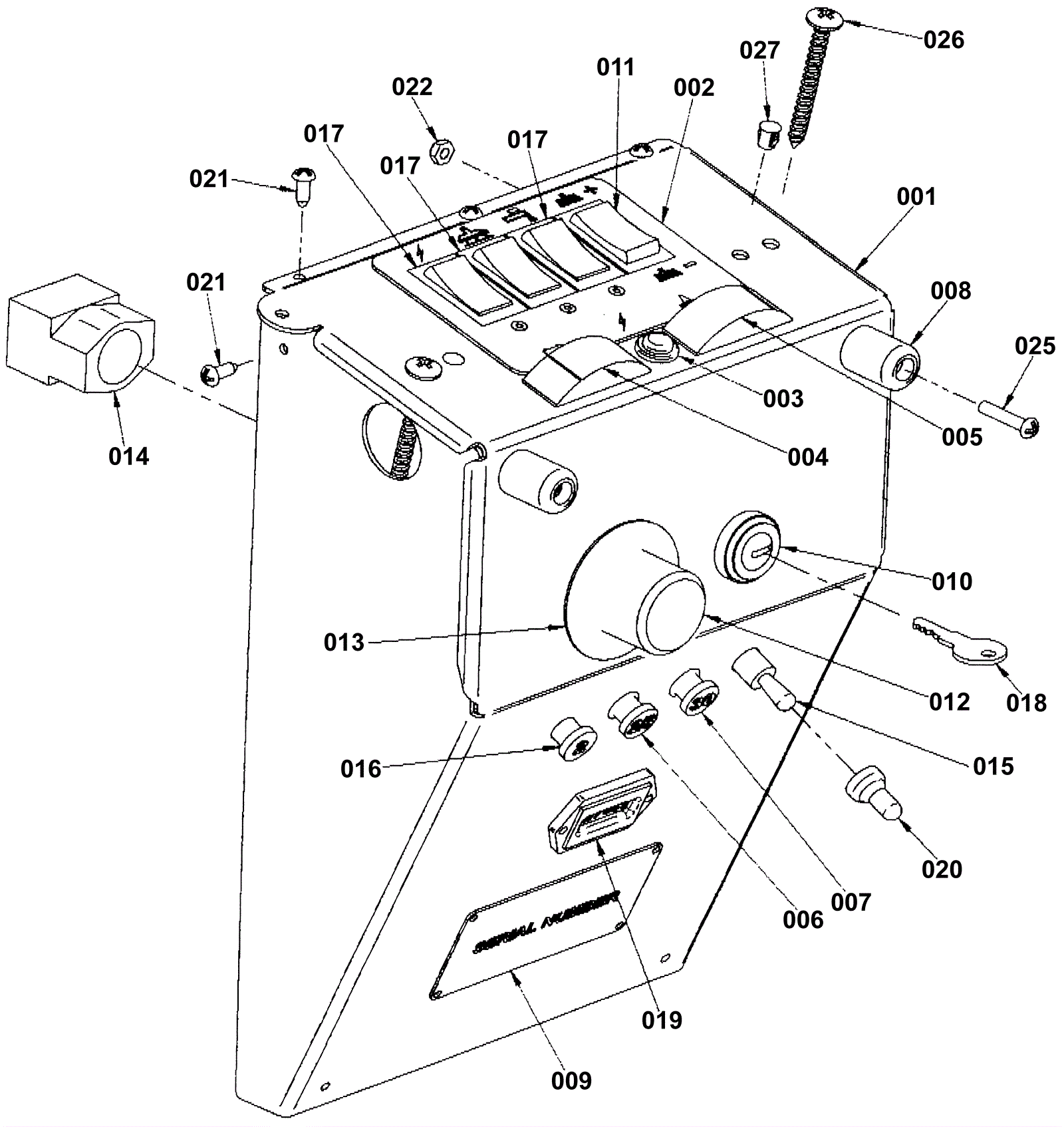

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2236
|
Control panel |
1 |
|
|
002 |
202-2237
|
Control panel decal |
1 |
|
|
003 |
202-2238
|
Power indicator |
1 |
|
|
004 |
202-2239
|
Battery gauge |
1 |
|
|
005 |
202-2240
|
Down pressure gauge |
1 |
|
|
006 |
202-2241
|
25amp resettable fuse |
1 |
|
|
007 |
202-2242
|
30amp fuse |
1 |
|
|
008 |
202-2243
|
Bumper |
2 |
|
|
009 |
202-0720
|
Serial number plate |
1 |
|
|
010 |
202-0537
|
Key switch (brass and silver) |
1 |
Before 02.2006 and SN 44180 |
|
010b |
202-0374
|
Keys (pkg of 2) |
1 |
Before 02.2006 and SN 44180 |
|
010c |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
After 02.2006 and SN 44179 (OEM) |
|
010d |
991-5161
|
Key switch with keys |
1 |
After 02.2006 and SN 44179 (NON-OEM) |
|
010d |
991-1634
|
Key (pkg of 2) |
1 |
After 02.2006 and SN 44179 |
|
011 |
202-0368
|
Switch |
1 |
|
|
012 |
202-0826
|
Emergency shut-off switch |
1 |
|
|
013 |
202-0827
|
Emergency legend plate |
1 |
|
|
014 |
202-0825
|
Emergency contact |
1 |
|
|
015 |
202-0097
|
Toggle switch |
1 |
|
|
016 |
202-0822
|
2amp fuse |
1 |
|
|
017 |
202-0370
|
Switch |
3 |
|
|
018 |
202-0374
|
Keys (pkg of 2) |
1 |
|
|
019 |
202-0376
|
Hour meter |
1 |
|
|
020 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
021 |
202-1195
|
Screw 8-32 x 1/2 round head phillips machine |
5 |
|
|
025 |
999-0915
|
Screw 8-32 x 1 round head phillips stainless steel |
2 |
|
|
026 |
999-0914
|
Screw 14 x 2 1/2 pan head phillips sheet metal ss |
2 |
|
|
027 |
202-2245
|
Hole plug 1/4 (OBSOLETE) |
2 |
|
|
N/S |
202-2244
|
Hole plug 7/8 |
1 |
|
|
N/S |
202-0988
|
Hole plug |
2 |
|
|
N/S |
202-2246
|
Hole plug 3/4 |
1 |
|
|
