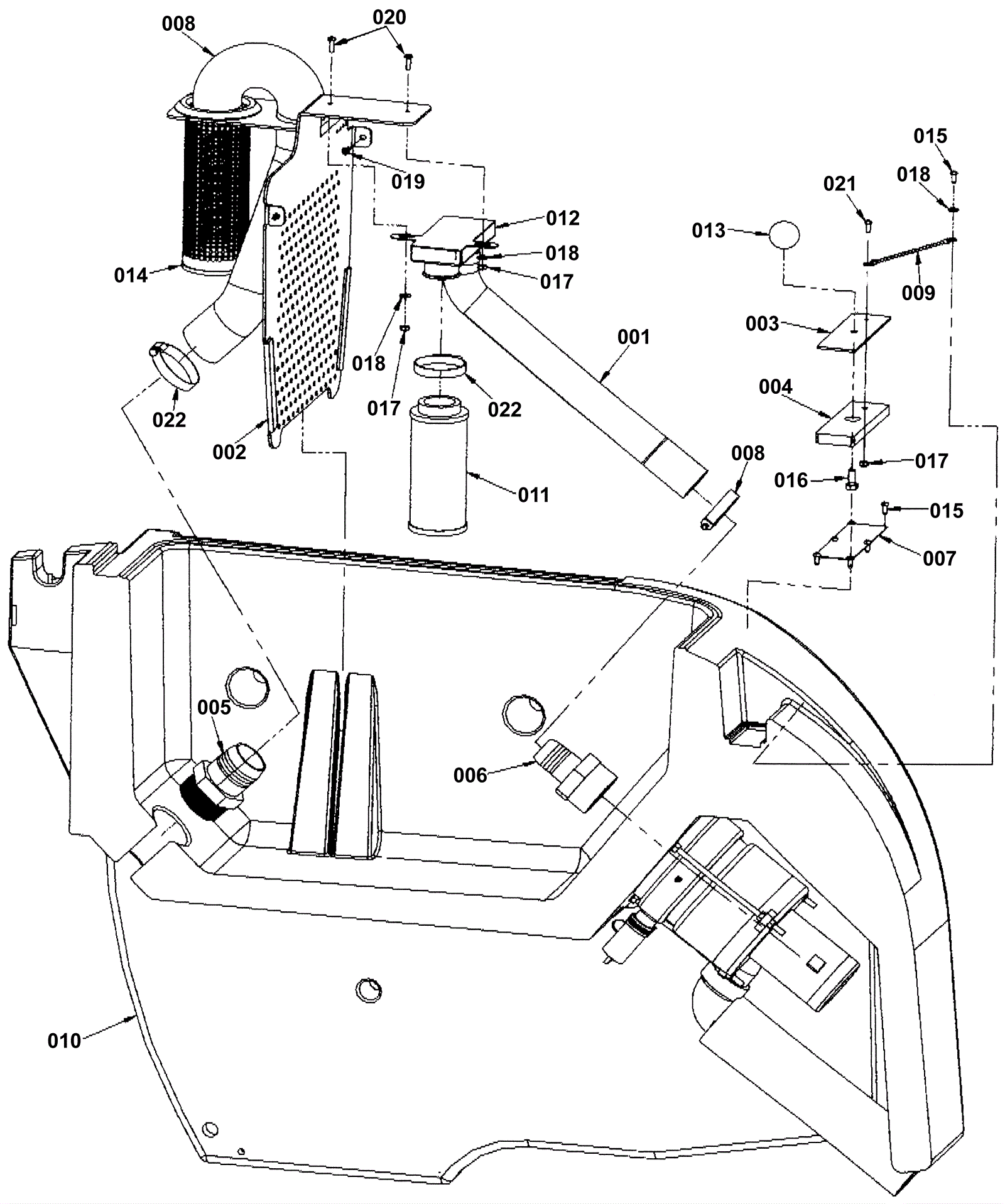

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2114
|
Wire Reinforced Black Hose |
1 |
|
|
002 |
202-2115
|
Baffle (OBSOLETE) |
2 |
|
|
003 |
202-2116
|
Solution Fill Lid |
1 |
|
|
004 |
202-2117
|
Solution Fill Lid Gasket |
1 |
|
|
005 |
202-2025
|
Hosebarb |
1 |
|
|
006 |
202-2118
|
Hosebarb |
1 |
|
|
007 |
202-2119
|
Screen |
1 |
|
|
008 |
202-3363
|
Wire reinforced hose 2 x 22 inch (gray) |
1 |
|
|
009 |
202-3127
|
4 inch chain (6 inch no longer available) |
1 |
|
|
010 |
202-2106
|
Solution / Recovery Tank |
1 |
|
|
011 |
202-0903
|
Vacuum screen |
1 |
|
|
012a |
202-0897
|
Vacuum box |
1 |
|
|
012b |
202-1644
|
Vac box filter |
1 |
|
|
014 |
202-2027
|
Strainer |
1 |
|
|
015 |
202-1195
|
Screw 8-32 x 1/2 round head phillips machine |
7 |
|
|
016 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
1 |
|
|
017 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
3 |
|
|
018 |
999-0998
|
Washer #10 flat stainless steel |
3 |
|
|
019 |
999-0561
|
Bolt 1/2-13 x 1 hex head stainless steel |
2 |
|
|
020 |
999-1486
|
Bolt 10-32 x 1/2 round head carriage stainless steel |
2 |
|
|
021 |
202-2008
|
Rear bumper |
1 |
|
|
