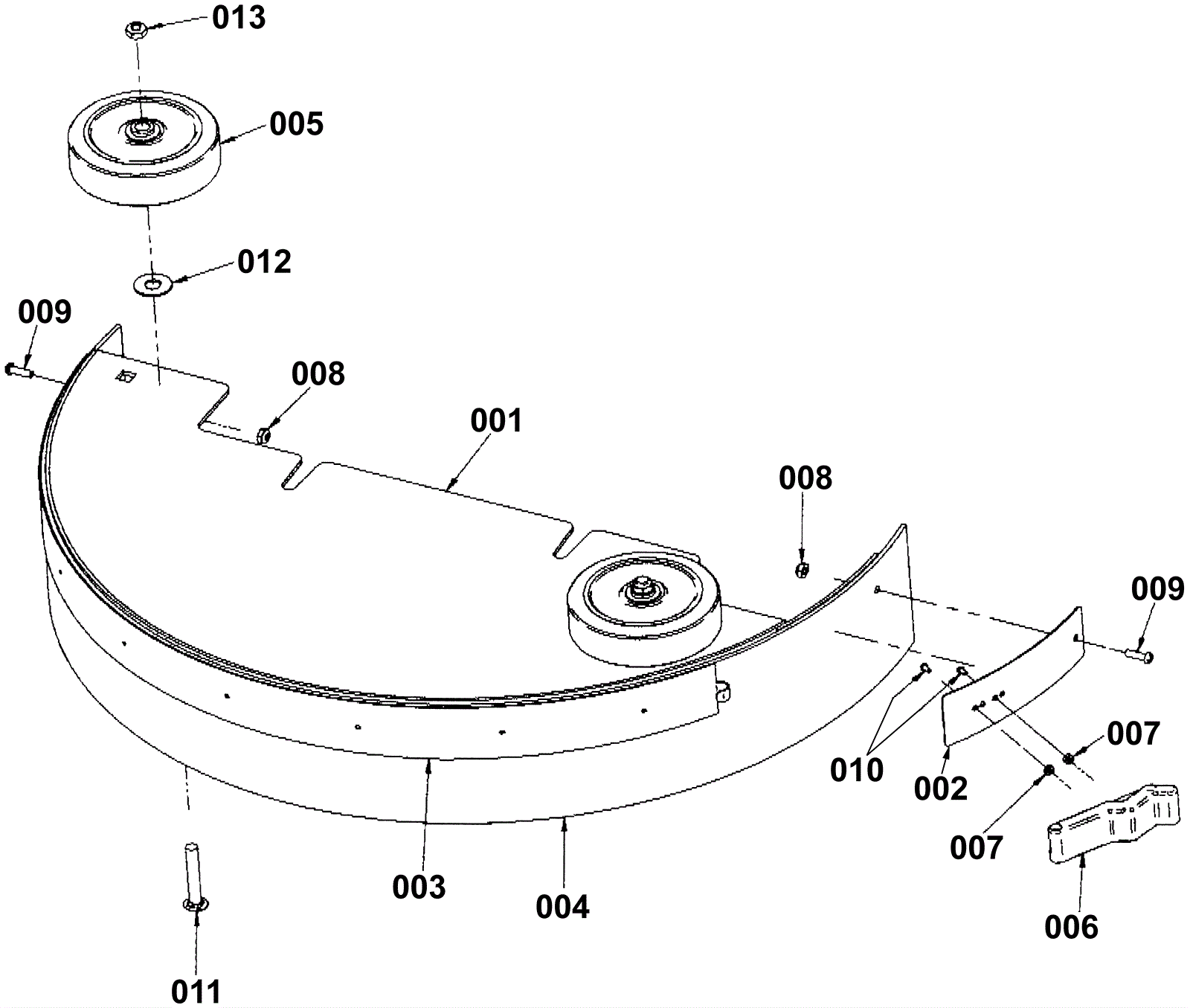

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2228
|
23 inch front shroud |
1 |
|
|
002 |
202-2095
|
20 inch & 23 inch Shroud Curtain Band(OBSOLETE) |
1 |
|
|
003 |
202-2229
|
23 Inch curtain band |
1 |
|
|
004 |
202-2097
|
20 inch Shroud Curtain Front |
1 |
|
|
005 |
202-2098
|
4 inch wheel (gray) |
2 |
|
|
006 |
202-1487
|
Latch |
1 |
|
|
007 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
008 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
009 |
999-0713
|
Screw 10-32 x 5/8 pan head slotted stainless steel |
2 |
|
|
010 |
999-0941
|
Screw 4-40 x 1/4 pan head phillips stainless steel |
2 |
|
|
011 |
999-1577
|
Bolt 5/16-18 x 2 round head carriage stainless steel |
2 |
|
|
012 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
013 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
|
|
