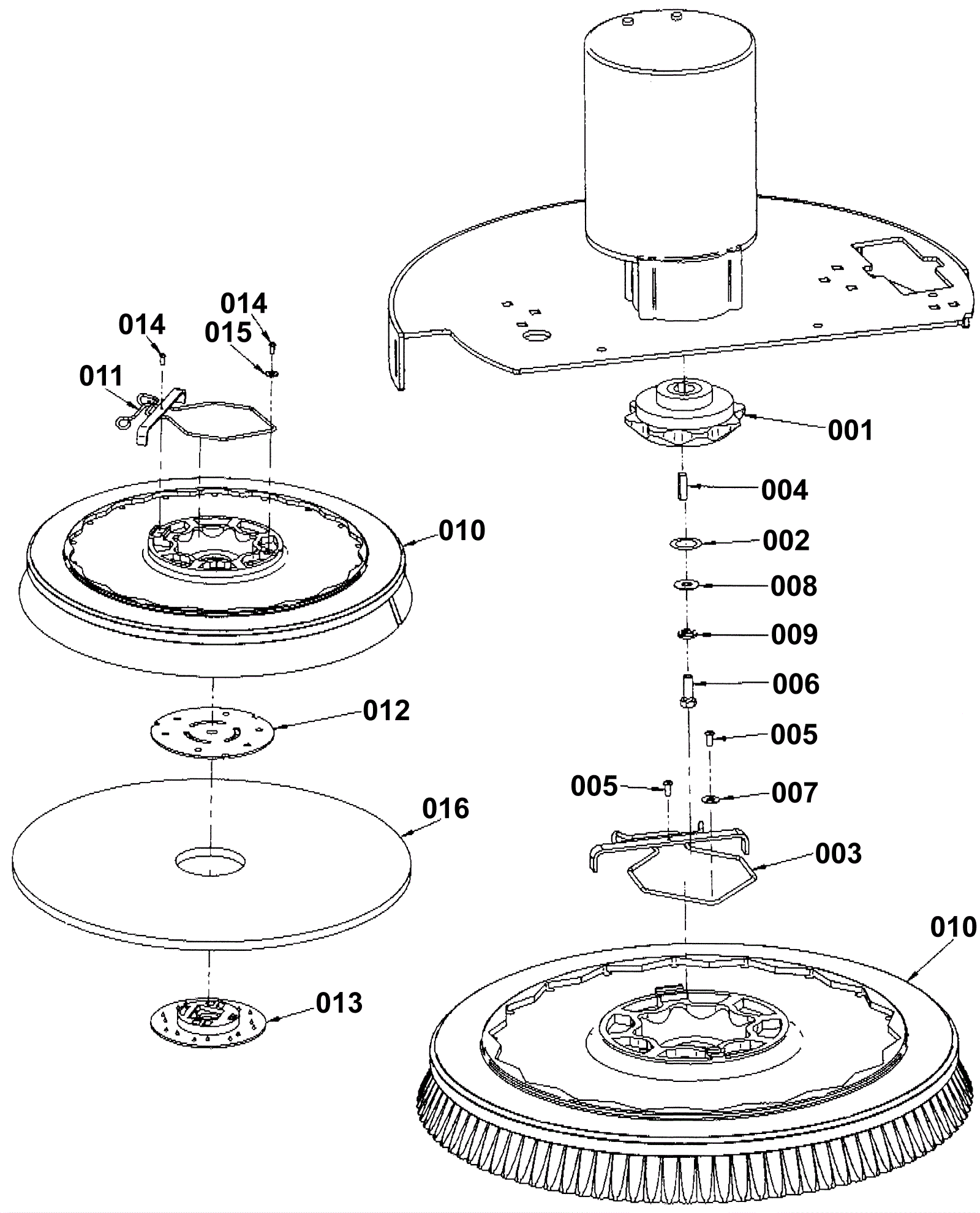

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0330
|
Metal brush driver |
1 |
|
|
002 |
202-3416
|
Transaxle hub assembly |
1 |
|
|
003 |
202-0320
|
Scrub brush repair kit (clutch/gimball repair) |
1 |
Bent wire, bracket bar, and screw for top of clutch plate. |
|
004 |
202-0331
|
Brush driver key (pkg of 2) |
1 |
|
|
005 |
999-0997
|
Screw 10-32 x 1/2 round head phillips zinc plated |
2 |
|
|
006 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
|
007 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
008 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
009 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
010 |
N/A
|
Not available |
1 |
|
|
011 |
202-0320
|
Scrub brush repair kit (clutch/gimball repair) |
1 |
Bent wire, bracket bar, and screw for top of clutch plate. |
|
012 |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
013 |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
014 |
999-0997
|
Screw 10-32 x 1/2 round head phillips zinc plated |
2 |
|
|
015 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
016 |
N/A
|
Not available |
1 |
|
|
017 |
N/A
|
Not available |
1 |
|
|
