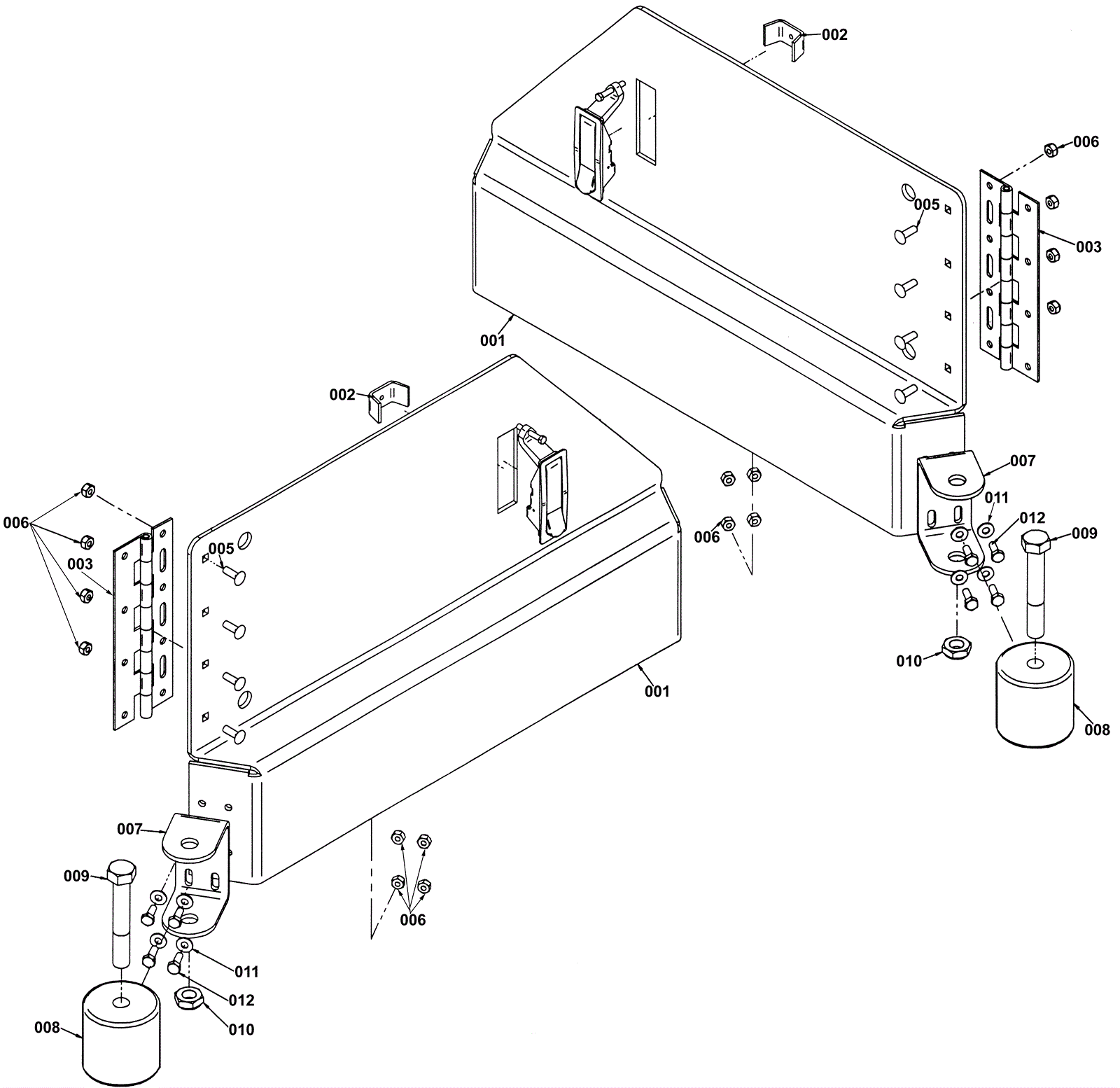

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-2005
|
Right door |
1 |
|
|
001b |
202-2004
|
Left door |
1 |
|
|
002 |
202-0404
|
Latch |
1 |
|
|
003 |
202-0403
|
Hinge |
1 |
|
|
005 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
006 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
007 |
202-0976
|
20 inch roller bracket |
1 |
|
|
008 |
202-0756
|
Guide roller |
1 |
|
|
009a |
999-0069
|
Nut 5/16-18 hex |
1 |
|
|
009b |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
1 |
|
|
010 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
011 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
012a |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
012b |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
|
|
