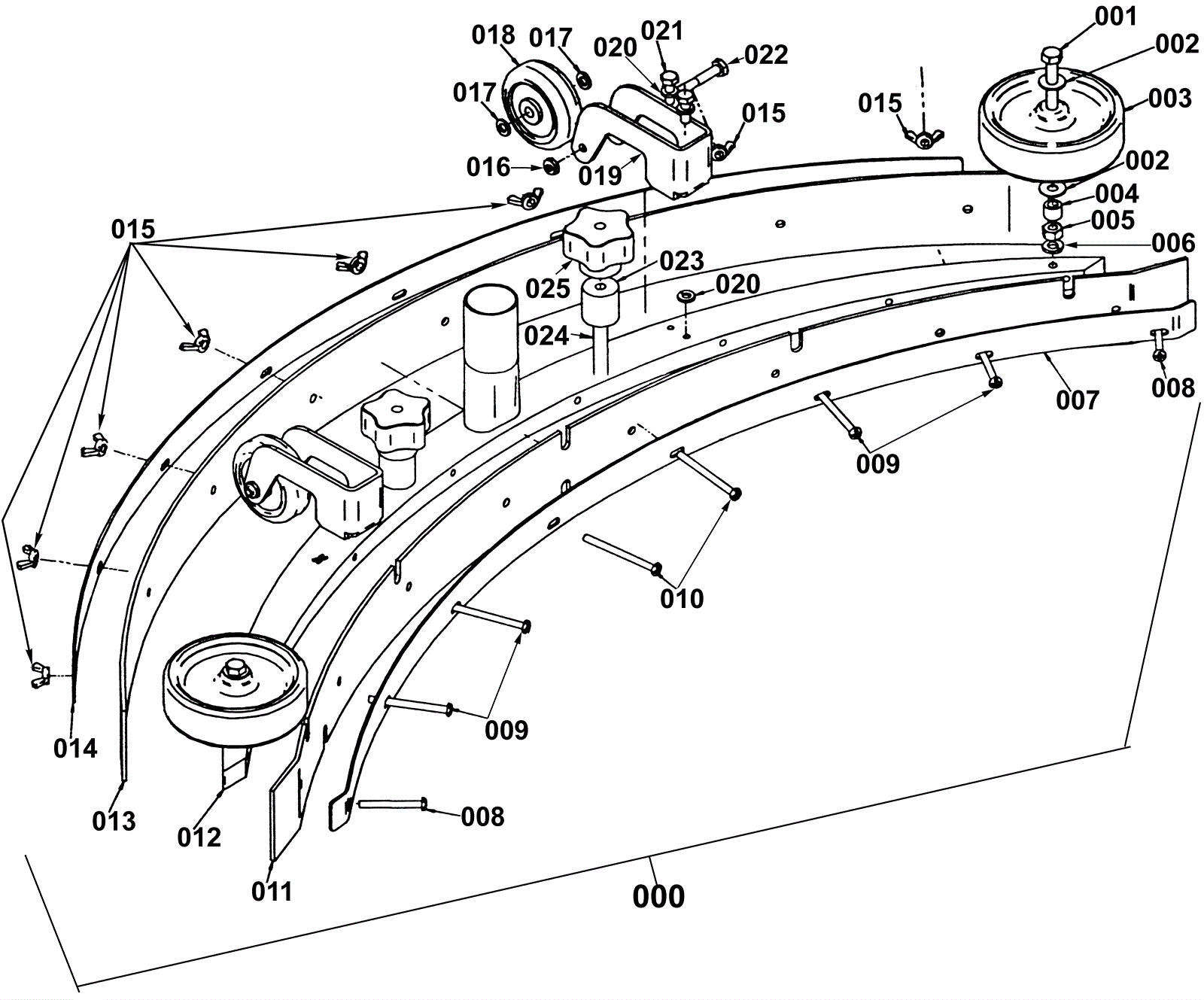

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
202-1359
|
35 inch squeegee assembly |
1 |
(includes 001-025) |
|
019b |
991-2412
|
Squeegee trail mounting bracket |
2 |
(NON-OEM) |
|
001 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
|
002 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
003 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
1 |
|
|
004 |
202-0807
|
Shaft collar |
2 |
|
|
005 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
006 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
007 |
202-0799
|
35 inch front squeegee band |
1 |
|
|
008 |
999-0868
|
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
009 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
4 |
|
|
010 |
999-0860
|
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
2 |
|
|
011a |
202-0797
|
Squeegee blade 35 inch gum rubber front |
1 |
|
|
011b |
202-1792
|
Squeegee blade 35 inch linatex front |
1 |
|
|
012 |
202-0795
|
35 inch squeegee weldment |
1 |
|
|
013a |
202-0801
|
Squeegee blade 35 inch gum rubber rear |
1 |
|
|
013b |
202-1790
|
Squeegee blade 35 inch linatex rear (red) |
1 |
|
|
014 |
202-0803
|
35 inch rear squeegee band |
1 |
|
|
015 |
999-0058
|
Nut 10-32 wing zinc plated |
8 |
|
|
016 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
017 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
4 |
|
|
018 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
1 |
|
|
019a |
202-0581
|
Squeegee trail mount |
2 |
|
|
020 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
021 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
022 |
999-0993
|
Screw 1/4-20 x 1 5/8 hex head stainless steel |
2 |
|
|
023 |
202-0582
|
Stand-off |
2 |
|
|
024 |
202-0806
|
Stud |
2 |
|
|
025 |
202-1999
|
Star knob |
2 |
|
|
