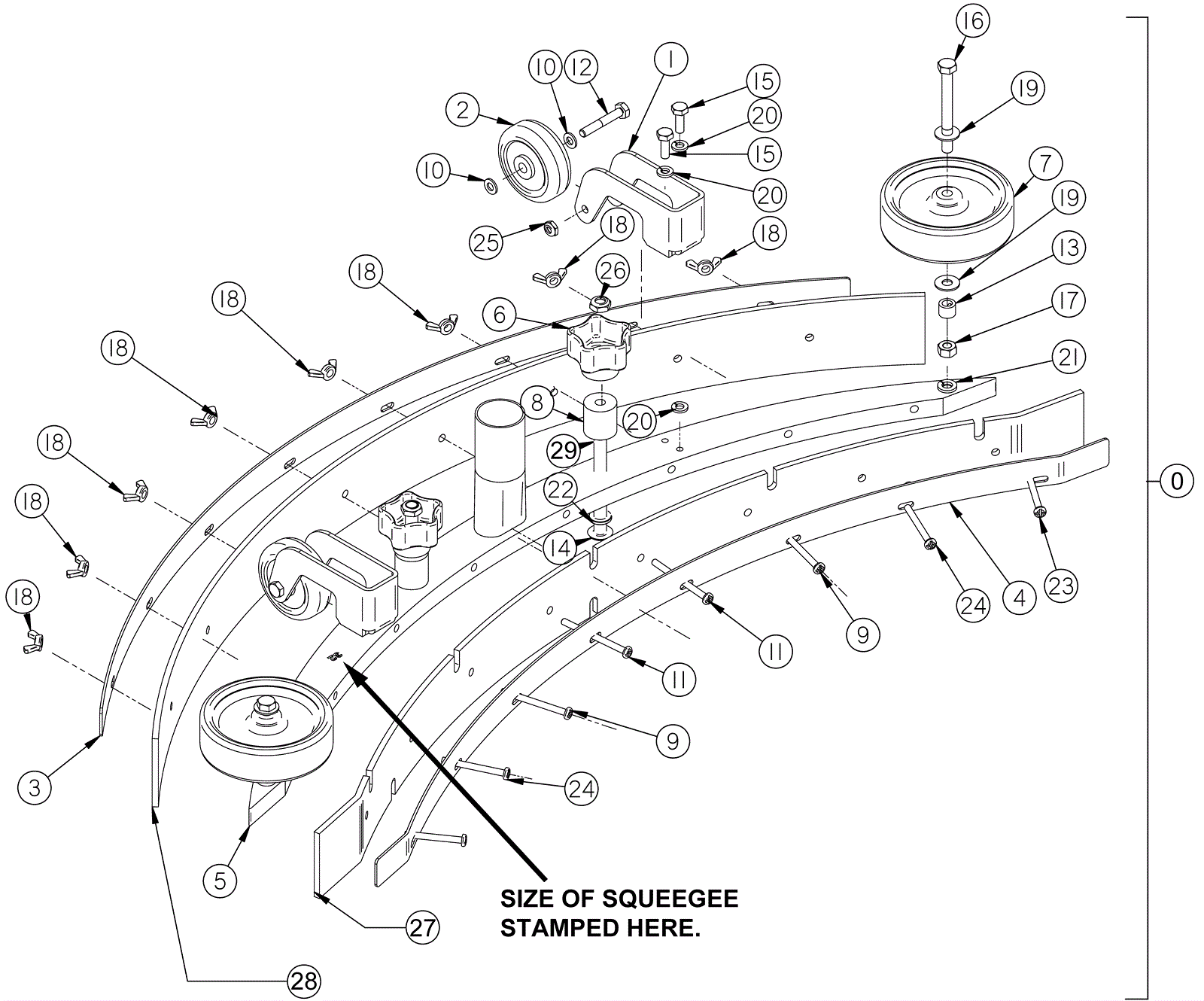

250SAMS Squeegee Assembly 32 Inch

#PartDescription ReqNotesAvailability
001 999-0911 Screw 5/16-18 x 3 hex head stainless steel 2 usually ships 11-14 days
002 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4 usually ships 11-14 days
003 202-5405 3 inch wheel 2 usually ships 11-19 days
004 202-0807 Shaft collar 2 usually ships 11-19 days
005 999-0593 Nut 5/16-18 hex stainless steel 2 usually ships 11-14 days
006 999-0553 Washer 5/16 medium split lock stainless steel 2 usually ships 11-14 days
007a 202-0796 Squeegee blade 32 inch gum rubber front 1 usually ships 11-19 days
007b 202-1792 Squeegee blade 35 inch linatex front 1 usually ships 11-19 days
007c 202-0796 Squeegee blade 32 inch gum rubber front 1 usually ships 11-19 days
008 202-1742 32 inch front squeegee band 1 usually ships 11-19 days
009 999-0860 Screw 10-32 x 2 1/2 pan head slotted stainless steel 2 usually ships 11-14 days
010 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel 4 usually ships 11-14 days
011 999-0868 Screw 10-32 x 1 3/4 pan head phillips stainless steel 2 usually ships 11-14 days
012 202-1743 32 inch squeegee weldment 1 usually ships 11-19 days
013a 202-0800 Squeegee blade 32 inch gum rubber rear 1 usually ships 11-19 days
013b 202-1790 Squeegee blade 35 inch linatex rear (red) 1 usually ships 11-19 days
013c 202-2935 Rear gum rubber squeegee blade 32 inch 1/8 inch thick 1 usually ships 11-19 days
014 202-0802 32 inch rear squeegee band 1 usually ships 11-19 days
015 999-0058 Nut 10-32 wing zinc plated 8 usually ships 11-14 days
016 202-0582 Stand-off 2 usually ships 11-19 days
017 202-0806 Stud 2 usually ships 11-19 days
018 202-1999 Star knob 2 usually ships 11-19 days
019 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2 usually ships 11-14 days
020 999-0563 Washer 1/4 x 1/16 flat nylon 4 usually ships 11-14 days
021 202-0008 Squeegee wheel with hardware (pkg of 2) 1 pair usually ships 11-19 days
022 999-0993 Screw 1/4-20 x 1 5/8 hex head stainless steel 2 usually ships 11-14 days
023a 202-0581 Squeegee trail mount 2 usually ships 11-19 days
023b 991-2412 Squeegee trail mounting bracket 2 (NON-OEM) usually ships 10-19 days
024 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4 usually ships 11-14 days
025 999-0632 Washer 1/4 split lock stainless steel 6 usually ships 11-14 days
N/S 202-0164 Gum rubber kit 1 usually ships 11-19 days
