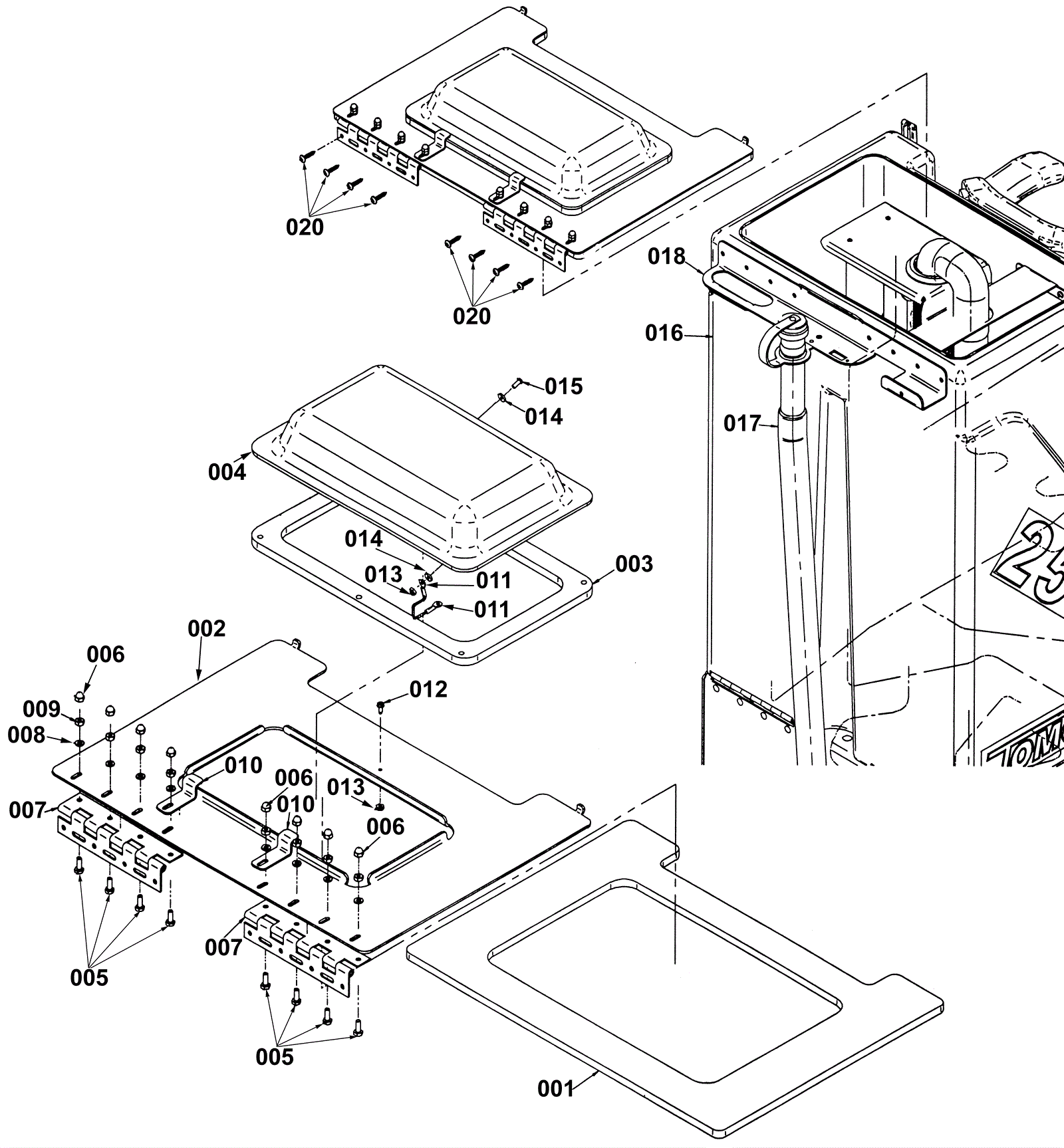

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1980
|
Tank lid gasket |
1 |
|
|
002 |
202-1981
|
Tank lid |
1 |
|
|
003 |
202-1982
|
Tank lid gasket (upper) |
1 |
|
|
004 |
202-1983
|
Tank lid (upper) (clear) |
1 |
|
|
005 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
8 |
|
|
006 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
8 |
|
|
007 |
202-0403
|
Hinge |
2 |
|
|
008 |
999-0632
|
Washer 1/4 split lock stainless steel |
8 |
|
|
009 |
999-0609
|
Nut 1/4-20 hex stainless steel |
8 |
|
|
010 |
N/A
|
Not available |
2 |
(Lid clip) (Use silicone to attatch the lid) |
|
011 |
202-0902
|
Lanyard |
1 |
|
|
012 |
202-1985
|
Screw 10 x 1/2 hex washer head |
1 |
|
|
013 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
014 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
2 |
|
|
015 |
999-6707
|
Screw #10-32 x 1/2 round head phillips stainless steel |
1 |
|
|
016 |
202-1987
|
Solution and recovery tank |
1 |
|
|
017a |
202-1988
|
Drain hose |
1 |
|
|
017b |
202-0240
|
Drain hose plug |
1 |
|
|
018 |
202-1989
|
Drain hose bracket |
1 |
|
|
020 |
202-2918
|
Screw 1/4-20 x 3/4 self tapping |
8 |
|
|
