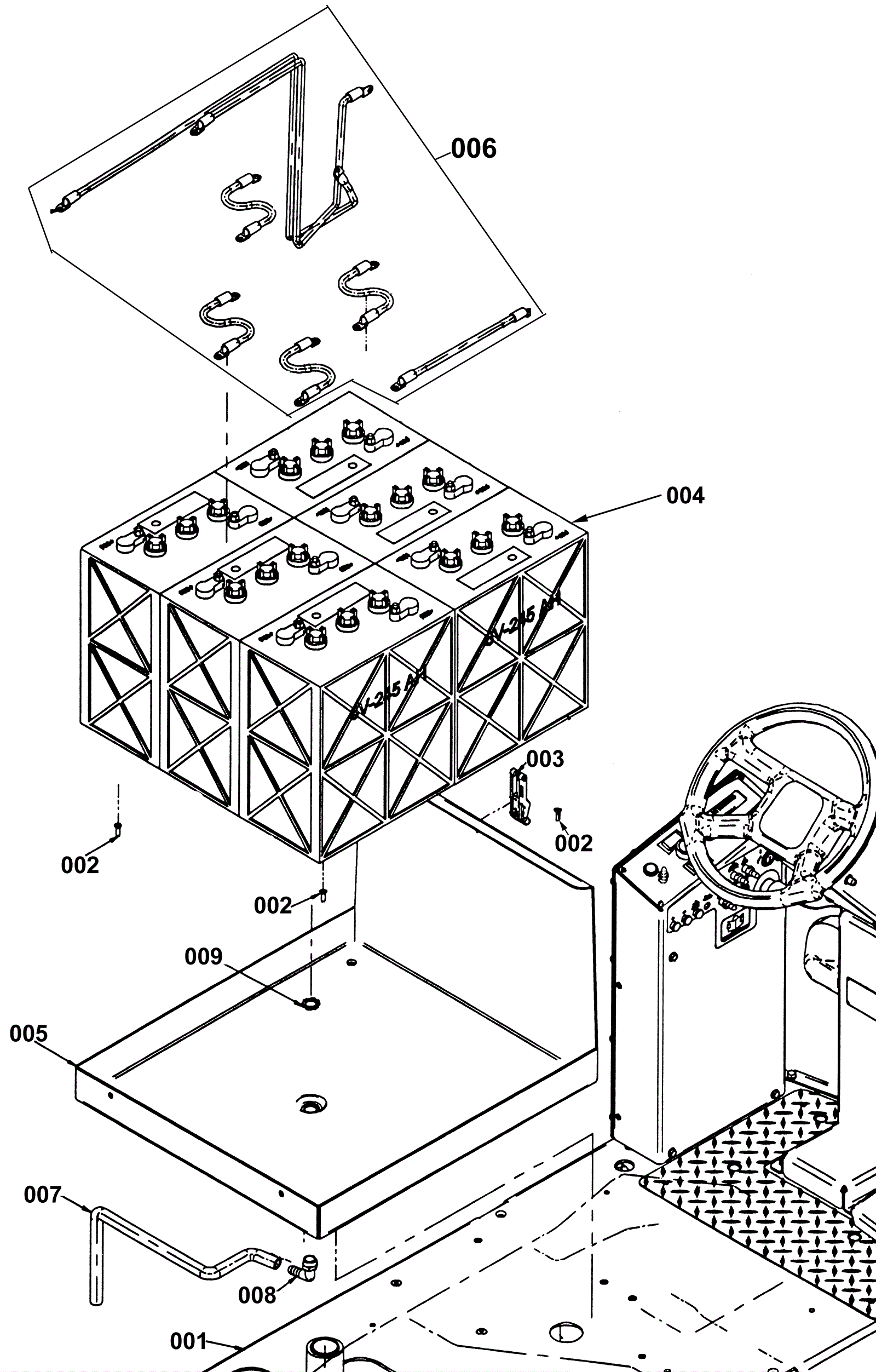

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1883
|
Main frame (OBSOLETE) |
1 |
|
|
002 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
4 |
|
|
003 |
202-1487
|
Latch |
1 |
|
|
004 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
6 |
|
|
005 |
202-5151
|
Battery box |
1 |
|
|
006 |
202-2302
|
Battery cable harness |
1 |
|
|
007 |
202-2290
|
Battery tray drain hose |
1 |
|
|
008 |
202-0333
|
Elbow barb |
1 |
|
|
009 |
999-0330
|
Nut 1/2-13 acorn brass |
1 |
|
|
