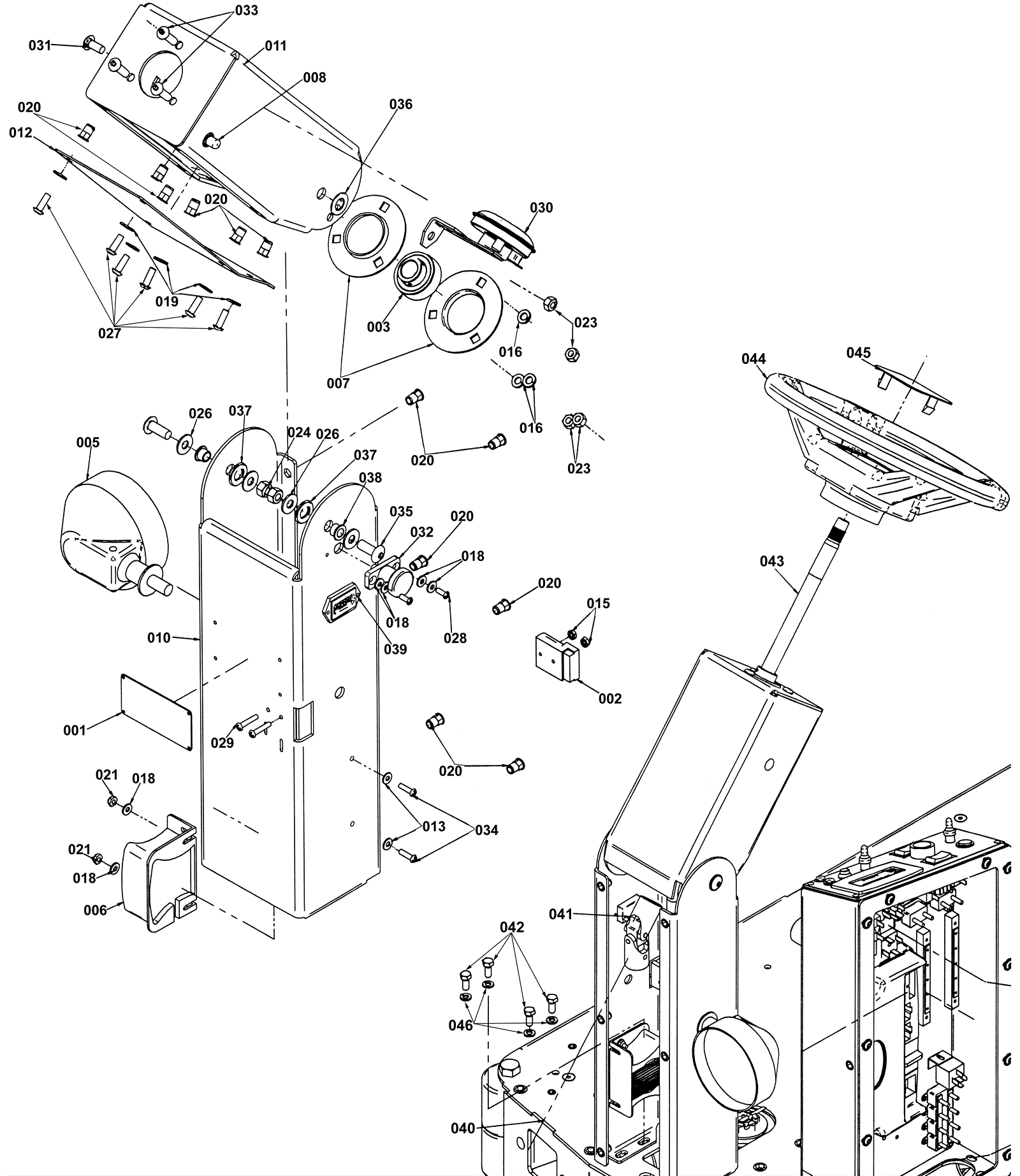

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0873
|
Serial number plate |
1 |
|
|
002a |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
|
|
002b |
202-2009
|
50amp connector (gray) |
1 |
|
|
003 |
202-0142
|
Upper steering bearing |
1 |
|
|
005 |
202-2010
|
48V headlight |
1 |
|
|
006 |
202-0385
|
Backup alarm |
1 |
|
|
007 |
202-0143
|
Bearing mount |
2 |
|
|
008 |
202-0381
|
Horn button |
1 |
|
|
010 |
202-2011
|
Lower steering column (granite) |
1 |
|
|
011 |
202-2012
|
Upper steering column (granite) |
1 |
|
|
012 |
202-2013
|
Pedestal cover (granite) |
1 |
|
|
013 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
015 |
999-0077
|
Nut 8-32 k-lock zinc plated |
2 |
|
|
016 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
3 |
|
|
018 |
999-0006
|
Washer 3/16 flat zinc plated |
6 |
|
|
019 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
6 |
|
|
020 |
999-0190
|
Nut 1/4-20 hex plain finish |
12 |
|
|
021 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
023 |
999-0069
|
Nut 5/16-18 hex |
4 |
|
|
024 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
|
026 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
|
027 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
6 |
|
|
028 |
999-0997
|
Screw 10-32 x 1/2 round head phillips zinc plated |
2 |
|
|
029 |
999-0995
|
Screw 8-32 x 1 round head phillips zinc plated |
2 |
|
|
030 |
202-3082
|
Horn |
1 |
|
|
031 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
1 |
|
|
032 |
202-0719
|
Index plunger |
1 |
|
|
033 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
3 |
|
|
034 |
999-1271
|
Screw 10-32 x 3/4 round head phillips zinc plated |
2 |
|
|
035 |
999-1003
|
Bolt 3/8-16 x 1 button head socket cap stainless steel |
2 |
|
|
036 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
037 |
202-1161
|
Washer 1/2 flat thick bronze |
2 |
|
|
038 |
202-0754
|
Flanged bearing |
2 |
|
|
039 |
202-0376
|
Hour meter |
1 |
|
|
040 |
202-1883
|
Main frame (OBSOLETE) |
1 |
|
|
041 |
202-0760
|
U-joint |
1 |
|
|
042 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
043 |
202-0761
|
Upper steering shaft |
1 |
|
|
044 |
202-0772
|
Steering wheel |
1 |
|
|
045 |
202-0773
|
Steering cover |
1 |
|
|
046 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
N/S |
202-2586
|
36V steering upright (OBSOLETE) |
1 |
|
|
