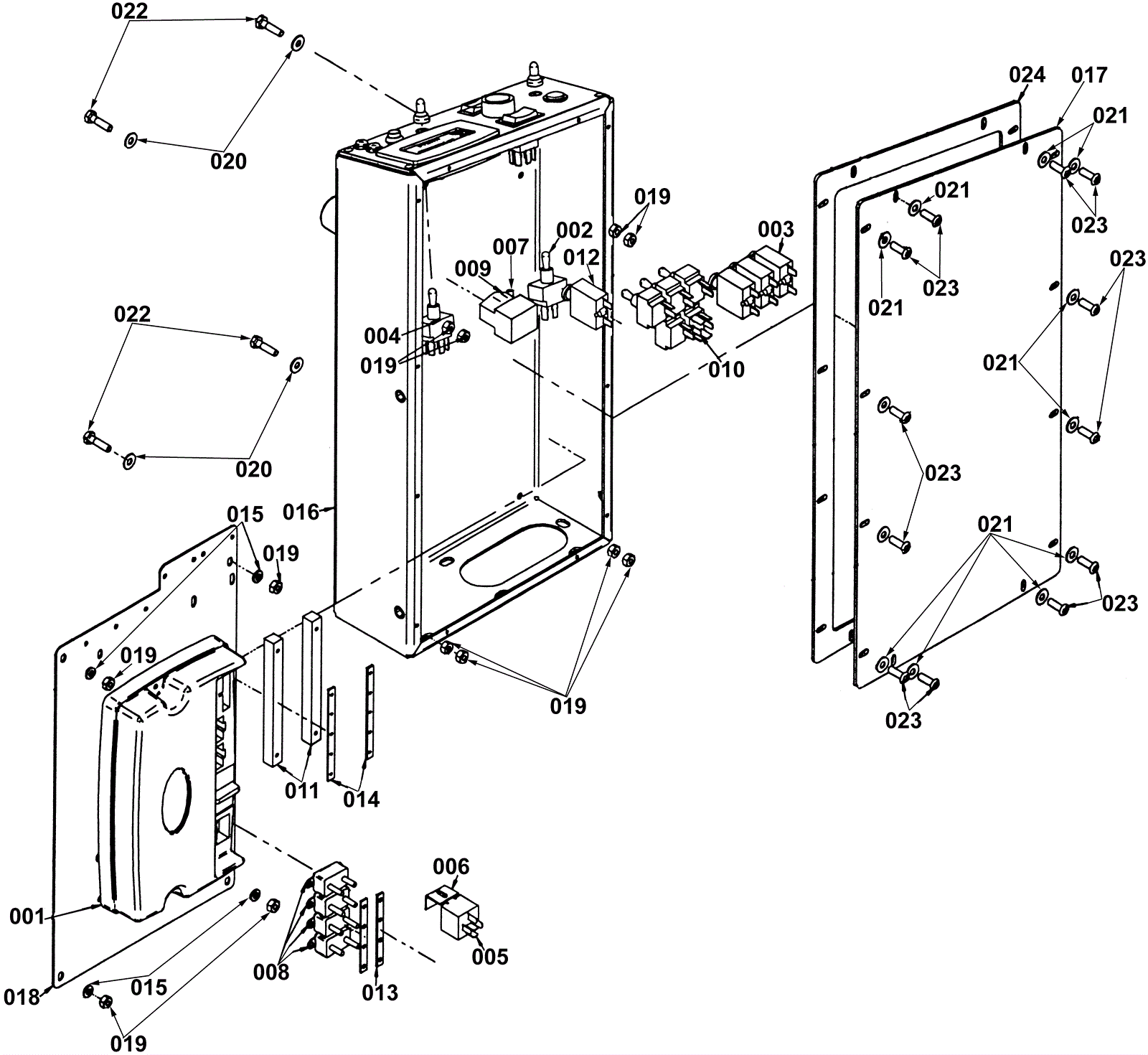

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-1369
|
Main controller |
1 |
(order 001b when ordering 001a) |
|
001b |
202-2271
|
Wire harness - Rider |
1 |
(for purchase with 001a) |
|
002 |
202-0097
|
Toggle switch |
5 |
(on/off brush switch) |
|
003 |
202-1338
|
50amp resettable circuit breaker |
3 |
|
|
004 |
202-0521
|
Toggle switch |
1 |
(forward/reverse) |
|
005 |
202-0348
|
15amp relay |
1 |
|
|
006 |
202-0819
|
Bracket |
1 |
|
|
007 |
202-0535
|
Speed control potentiometer |
1 |
|
|
008 |
202-0343
|
50amp circuit breaker |
4 |
|
|
009 |
202-0825
|
Emergency contact |
1 |
|
|
010 |
202-1992
|
Toggle switch |
1 |
|
|
011 |
202-0541
|
Busbar |
2 |
|
|
012 |
202-0822
|
2amp fuse |
1 |
|
|
013 |
202-0833
|
Buss bar (4 hole) |
2 |
|
|
014 |
202-0830
|
Busbar (5 hole) |
2 |
|
|
015 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
016 |
202-1978
|
Control panel |
1 |
|
|
017 |
202-1993
|
Access cover (OBSOLETE) |
1 |
|
|
018 |
202-1994
|
Hardware panel |
1 |
|
|
019 |
999-0190
|
Nut 1/4-20 hex plain finish |
12 |
|
|
020 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
021 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
|
022 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
4 |
|
|
023 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
12 |
|
|
024 |
202-0818
|
Access cover gasket |
1 |
|
|
