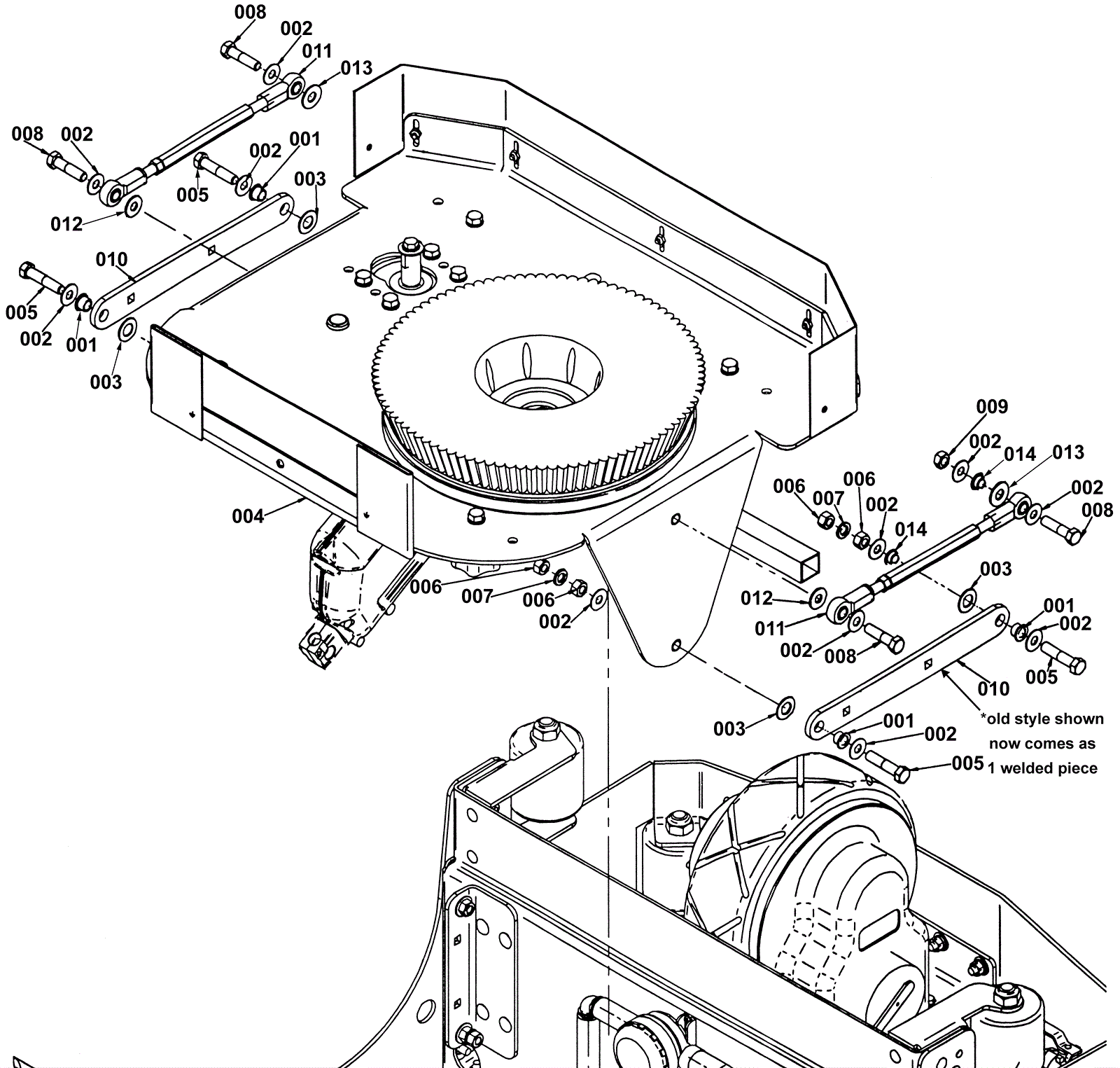

250 Scrub Deck Assembly - Bottom

#PartDescriptionPriceReqNotesAvailability
001 202-0754 Flanged bearing $5.50 4 usually ships 8-12 days
002 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 11 ships same day
003 202-1181 Washer 1/2 flat bronze $5.50 4 usually ships 8-12 days
004a 202-2259 26 inch front curtain band $52.91 1 usually ships 1-5 days
004b 202-2260 30 inch front curtain band $34.98 1 usually ships 1-5 days
004c 202-4278 26 inch scrub deck Call for price 1 usually ships 11-21 days
005 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 3 ships same day
006 999-0635 Nut 3/8-16 hex stainless steel $0.99 8 ships same day
007 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
008a 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 4 ships same day
008b 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel $5.50 4 usually ships 8-12 days
009 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 4 ships same day
010 202-1971 Lateral arm $151.58 1 usually ships 8-12 days
011 202-0629 Adjustable lateral arm $73.92 2 usually ships 8-12 days
012 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
013 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
014 202-1239 Flanged bearing $5.50 4 usually ships 8-12 days
