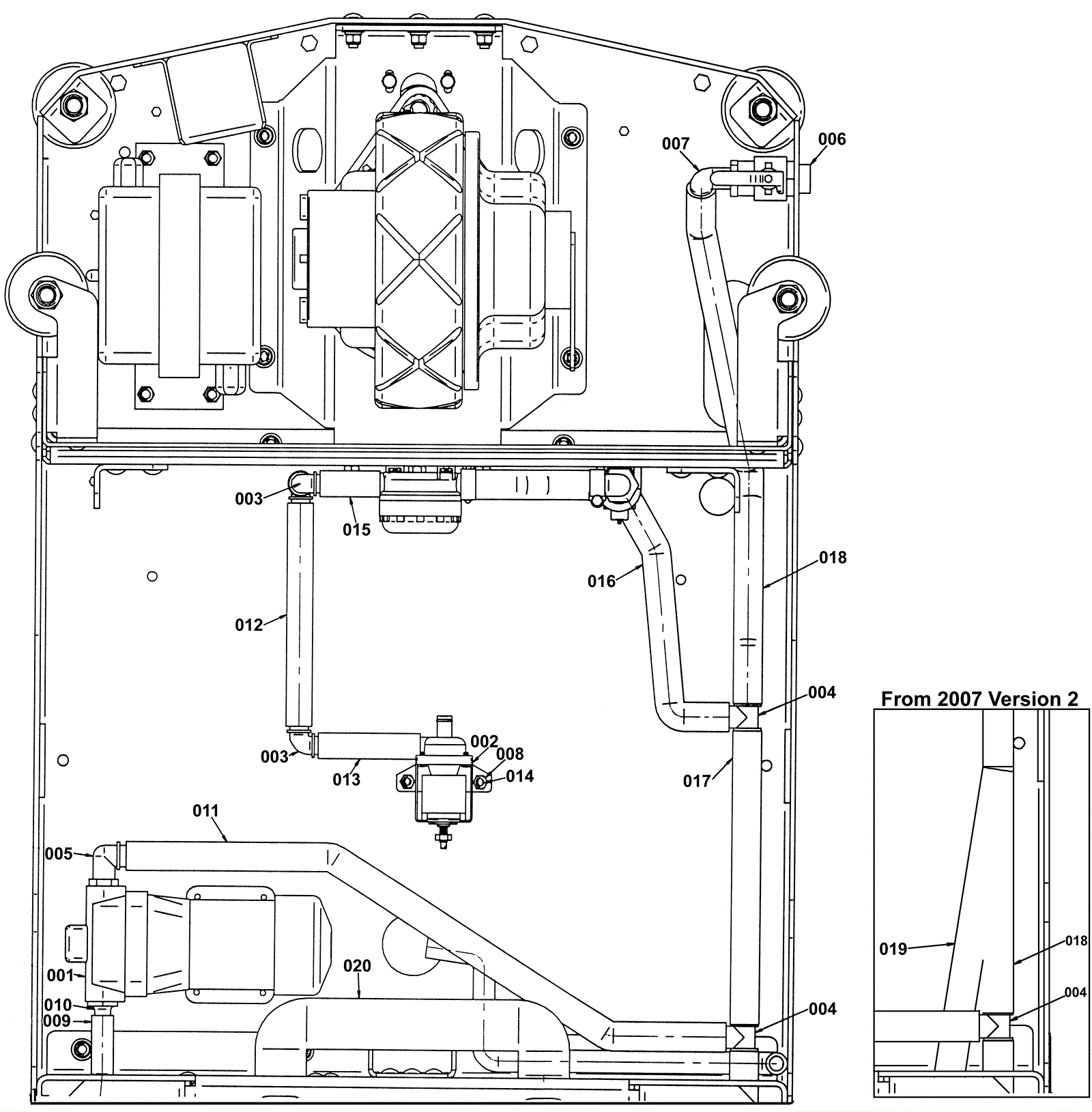

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0101
|
60 PSI water jet pump |
1 |
|
|
002a |
202-1935
|
36V solution flow valve |
1 |
|
|
002b |
202-2278
|
Nylon valve body (OBSOLETE) |
1 |
|
|
003 |
202-0194
|
5/8 Barb elbow |
3 |
|
|
004 |
202-1936
|
Barbed tee |
2 |
|
|
005 |
202-1004
|
Barbed elbow |
1 |
|
|
006 |
202-0684
|
Ball valve |
1 |
|
|
007 |
202-0884
|
Barbed elbow |
1 |
|
|
008 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
009 |
202-5025
|
12 foot hose (blue) |
1 |
|
|
010 |
202-1017
|
Male barb 1/2 x 3/4 |
1 |
|
|
011a |
202-1880
|
Hose |
1 |
|
|
011b |
202-3605
|
Spray jet hose 3/4 x 23-1/2 inch |
1 |
|
|
012a |
202-0299
|
5/8 inch PVC hose (clear) (sold by the foot) |
1 |
|
|
012b |
202-5044
|
Solution hose 5/8 x 12 inch (OBSOLETE) |
1 |
|
|
013a |
202-0299
|
5/8 inch PVC hose (clear) (sold by the foot) |
1 |
|
|
013b |
202-5043
|
Solution hose 5/8 x 2 1/2 inch (OBSOLETE) |
1 |
|
|
014 |
999-1345
|
Screw 1/4-20 x 1 flat head phillips stainless steel |
2 |
|
|
015a |
202-0299
|
5/8 inch PVC hose (clear) (sold by the foot) |
1 |
|
|
015b |
202-5045
|
Solution hose 5/8 x 2 1/2 inch |
1 |
|
|
016 |
202-2908
|
Hose 3/4 x 6 1/4 inch |
1 |
|
|
017 |
202-2907
|
Solution drain hose 3/4 x 20 inch |
1 |
|
|
018 |
202-3374
|
Hose 3/4 x 15 1/2 inch (OBSOLETE) |
1 |
|
|
019 |
202-2280
|
Hose 2.5 x 18 inch |
1 |
|
|
020 |
202-2905
|
Hose 3/4 x 40 inch |
1 |
|
|
N/S |
202-2277
|
Wire harness (OBSOLETE) |
1 |
(for the drive motor) |
|
