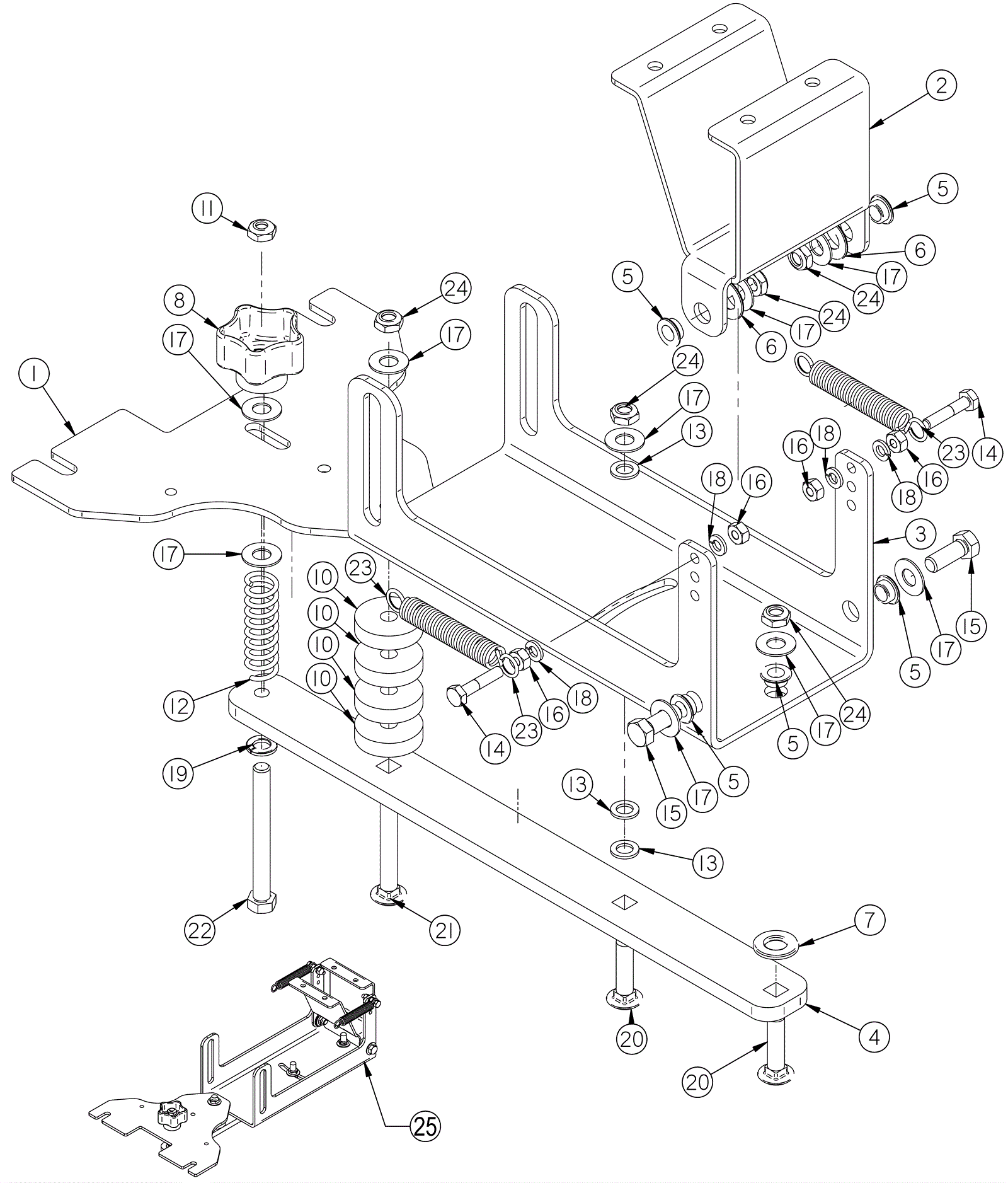

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0808
|
Squeegee triangle plate |
1 |
|
usually ships 11-19 days |
2 |
N/A
|
Not available |
1 |
(included in 25) (Squeegee drag brace is not available separately and included in this assembly) |
usually ships 3-26 days |
3 |
N/A
|
Not available |
1 |
(included in 25) (Squeegee swing plate is not available separately and included in this assembly) |
usually ships 3-26 days |
4 |
202-1923
|
Squeegee trail arm |
1 |
|
usually ships 11-19 days |
5 |
202-1239
|
Flanged bearing |
5 |
|
usually ships 11-19 days |
6 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
usually ships 11-19 days |
7 |
202-1161
|
Washer 1/2 flat thick bronze |
1 |
|
usually ships 11-19 days |
8 |
202-0809
|
Brass star knob |
1 |
|
usually ships 11-19 days |
10 |
202-0151
|
Grommet |
4 |
|
usually ships 11-19 days |
11 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
usually ships 11-14 days |
12a |
202-2945
|
Spring |
1 |
|
usually ships 11-19 days |
12b |
202-0813
|
Spring |
1 |
|
usually ships 11-19 days |
13a |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
3 |
|
usually ships 11-19 days |
13b |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
4 |
(SN 30000000 - SN 40000000) |
usually ships 11-14 days |
14 |
999-0298
|
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
2 |
|
usually ships 11-14 days |
15 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
usually ships 11-14 days |
16 |
999-0609
|
Nut 1/4-20 hex stainless steel |
4 |
|
usually ships 11-14 days |
17 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
9 |
|
usually ships 11-14 days |
18 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
usually ships 11-14 days |
19 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
usually ships 11-14 days |
20a |
999-1348
|
Bolt 3/8-16 x 1 1/2 carriage head stainless steel |
2 |
|
usually ships 11-14 days |
20b |
999-1150
|
Bolt 3/8-16 x 1 1/4 carriage head stainless steel |
2 |
|
usually ships 11-14 days |
21a |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
usually ships 11-14 days |
21b |
999-1149
|
Bolt 3/8-16 x 2 carriage head stainless steel |
1 |
|
usually ships 11-14 days |
22 |
202-1054
|
Bolt 3/8-24 x 3 1/2 hex head stainless steel |
1 |
|
usually ships 11-19 days |
23 |
202-2208
|
Compression spring |
2 |
|
usually ships 11-19 days |
24a |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
5 |
|
usually ships 11-14 days |
24b |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
5 |
|
usually ships 11-14 days |
25 |
202-3054
|
Squeegee trail arm assembly |
1 |
(includes 2-3) (Complete assembly) |
usually ships 11-19 days |
