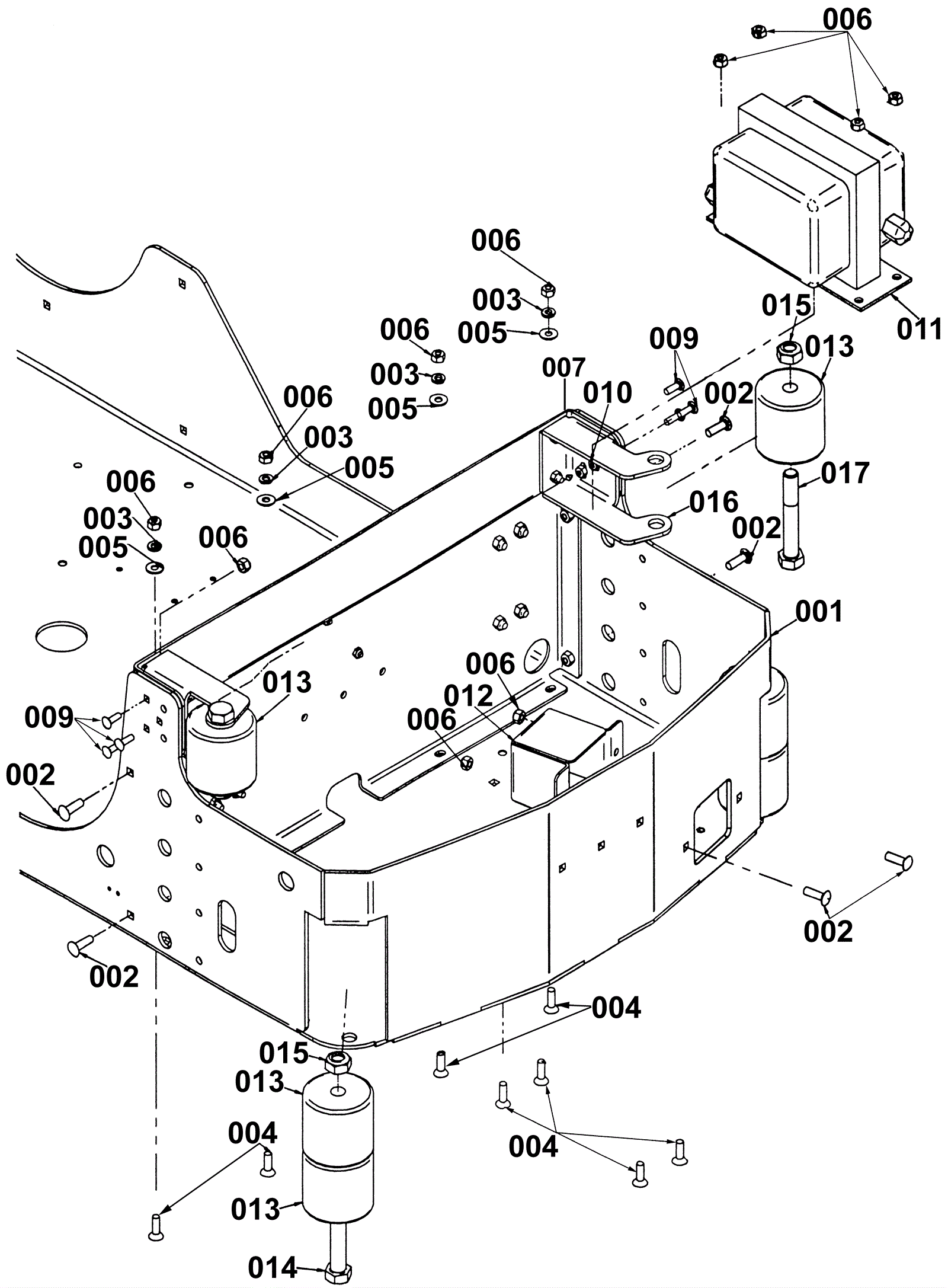

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1883
|
Main frame (OBSOLETE) |
1 |
|
|
002 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
6 |
|
|
003 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
004 |
999-0734
|
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
8 |
|
|
005 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
|
006 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
14 |
|
|
007 |
202-3602
|
250 disk front wall |
1 |
|
|
009 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
7 |
|
|
010 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
10 |
|
|
011 |
202-1877
|
36V 35amp onboard battery charger |
1 |
(optional) |
|
012 |
202-1888
|
Charger plug box |
1 |
|
|
013 |
202-0756
|
Guide roller |
6 |
|
|
014 |
999-6723
|
Bolt 5/8-11 x 7 hex head grade 5 zinc plated |
2 |
|
|
015 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
4 |
|
|
016 |
202-5560
|
Lower roller bracket |
2 |
|
|
017 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
2 |
|
|
