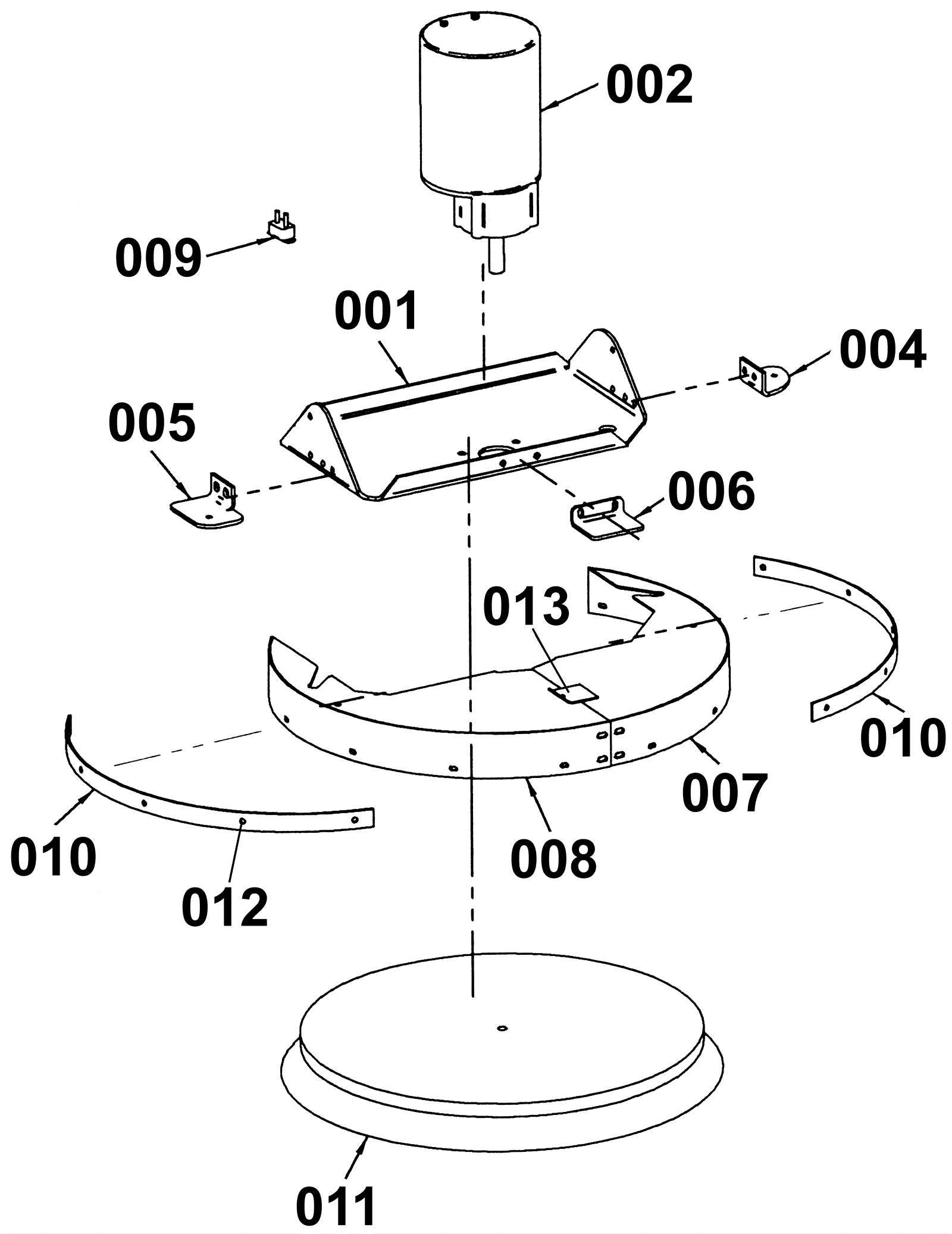

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1875
|
Scrub deck |
1 |
|
|
002 |
202-0321
|
24V 1HP 200RPM brush motor |
1 |
|
|
004 |
202-0971
|
25/27 inch left shroud mount |
1 |
|
|
005 |
202-0973
|
25/27 inch right shroud mount |
1 |
|
|
006 |
202-1730
|
FRONT SHROUD MOUNT |
1 |
|
|
007 |
202-1725
|
LEFT SHROUD ASSEMBLY |
1 |
|
|
008 |
202-1726
|
RIGHT SHROUD ASSEMBLY |
1 |
|
|
009 |
202-0823
|
40 amp circuit breaker |
1 |
|
|
010 |
202-1729
|
Skirt band (OBSOLETE) |
2 |
|
|
011 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
|
012 |
999-0087
|
Screw 10-32 x 5/8 flat head slotted zinc plated |
|
|
|
013 |
202-1487
|
Latch |
1 |
|
|
N/S |
202-1731
|
Shroud curtain |
1 |
|
|
