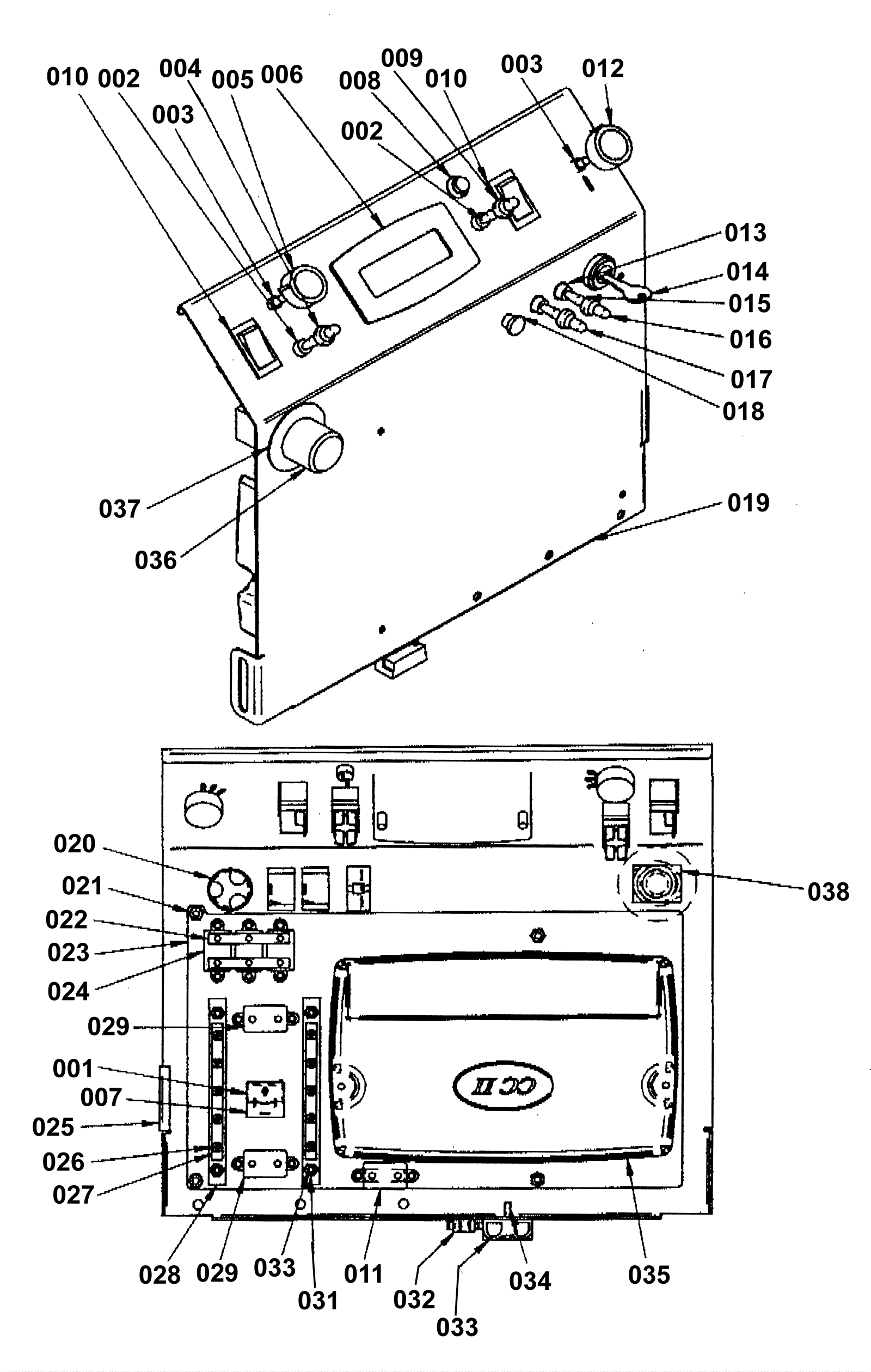

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-0819
|
Bracket |
$5.00
|
1 |
|
usually ships 1-5 days |
002 |
202-0521
|
Toggle switch |
$31.60
|
2 |
|
usually ships 3-10 days |
003 |
202-0535
|
Speed control potentiometer |
$81.60
|
2 |
|
usually ships 3-10 days |
004 |
202-1864
|
Toggle switch protective boot (red) |
$12.00
|
1 |
|
usually ships 3-10 days |
005 |
202-0989
|
Control knob (red) |
$10.60
|
1 |
|
usually ships 3-10 days |
006 |
202-1317
|
LCD window display |
$355.00
|
1 |
|
usually ships 3-10 days |
007 |
202-0348
|
15amp relay |
$12.76
|
1 |
|
ships same day |
008 |
202-0879
|
Push button switch |
$51.15
|
1 |
|
ships same day |
009 |
202-1355
|
Toggle switch protective boot (black) |
$12.00
|
1 |
|
ships same day |
010 |
202-0370
|
Switch |
$25.19
|
2 |
|
usually ships 3-10 days |
011 |
202-0346
|
80 Amp circuit breaker |
$83.40
|
1 |
|
usually ships 1-5 days |
012 |
202-0990
|
Control knob (blue) |
$12.00
|
1 |
|
usually ships 3-10 days |
013 |
202-0988
|
Hole plug |
$4.50
|
2 |
|
usually ships 1-5 days |
013b |
202-2299
|
Carbon brush (pkg of 2) |
$23.30
|
1 |
|
usually ships 3-10 days |
014 |
202-0374
|
Keys (pkg of 2) |
$12.70
|
1 |
|
usually ships 3-10 days |
015 |
202-0097
|
Toggle switch |
$14.30
|
2 |
|
usually ships 3-10 days |
016 |
202-1865
|
Toggle switch protective boot (blue) |
$12.00
|
1 |
|
usually ships 3-10 days |
017 |
202-1866
|
Toggle switch protective boot (green) |
$12.00
|
1 |
|
usually ships 3-10 days |
018 |
202-0822
|
2amp fuse |
$38.20
|
1 |
|
usually ships 3-10 days |
019 |
202-1574
|
CONTROL PANEL |
$193.10
|
1 |
|
usually ships 1-5 days |
020 |
202-0537
|
Key switch (brass and silver) |
$36.70
|
1 |
Before 02.2006 and SN 44180 |
usually ships 3-10 days |
020b |
202-0374
|
Keys (pkg of 2) |
$12.70
|
1 |
Before 02.2006 and SN 44180 |
usually ships 3-10 days |
020c |
202-2300
|
Key switch with key entry (red) and ring (black) |
$33.55
|
1 |
After 02.2006 and SN 44179 (OEM) |
ships same day |
020d |
991-1634
|
Key (pkg of 2) |
$11.19
|
1 |
After 02.2006 and SN 44179 |
ships same day |
020d |
991-5161
|
Key switch with key and ring |
$16.04
|
1 |
After 02.2006 and SN 44179 (NON-OEM) |
ships same day |
021 |
999-0239
|
Nut 10-32 k-lock zinc plated |
$0.90
|
8 |
|
ships same day |
022 |
202-1867
|
3 hole buss bar (OBSOLETE) |
$4.50
|
2 |
|
usually ships 1-5 days |
023 |
202-1573
|
COMPONENT PLATE (OBSOLETE) |
$36.09
|
1 |
|
usually ships 1-5 days |
024 |
202-0343
|
50amp circuit breaker |
$7.15
|
3 |
|
ships same day |
025 |
202-0250
|
Chain guard seal |
$15.00
|
1 |
|
usually ships 3-10 days |
026 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
$0.90
|
10 |
|
ships same day |
027 |
202-0830
|
Busbar (5 hole) |
$4.82
|
2 |
|
ships same day |
028 |
202-0541
|
Busbar |
$7.40
|
2 |
|
usually ships 1-5 days |
029 |
202-2052
|
15amp circuit breaker |
$22.20
|
2 |
|
usually ships 3-10 days |
030 |
999-0995
|
Screw 8-32 x 1 round head phillips zinc plated |
$0.90
|
4 |
|
ships same day |
031 |
999-0077
|
Nut 8-32 k-lock zinc plated |
$0.90
|
4 |
|
ships same day |
032 |
202-0721
|
Microswitch |
$14.30
|
1 |
|
usually ships 3-10 days |
033 |
991-2103
|
50amp charger plug SB50 with pins (red) |
$6.79
|
1 |
|
ships same day |
034 |
999-0995
|
Screw 8-32 x 1 round head phillips zinc plated |
$0.90
|
1 |
|
ships same day |
035 |
202-1369
|
Main controller |
$1,371.40
|
1 |
When ordering this part be sure to order part number 202-2270. 202-2270 is sent out at no charge per Tomcat. |
usually ships 3-10 days |
036 |
202-1826
|
.75 snapring |
$5.00
|
1 |
|
usually ships 1-5 days |
037 |
202-0827
|
Emergency legend plate |
$39.40
|
1 |
|
usually ships 1-5 days |
038 |
202-3416
|
Transaxle hub assembly |
$103.51
|
1 |
|
usually ships 3-10 days |
