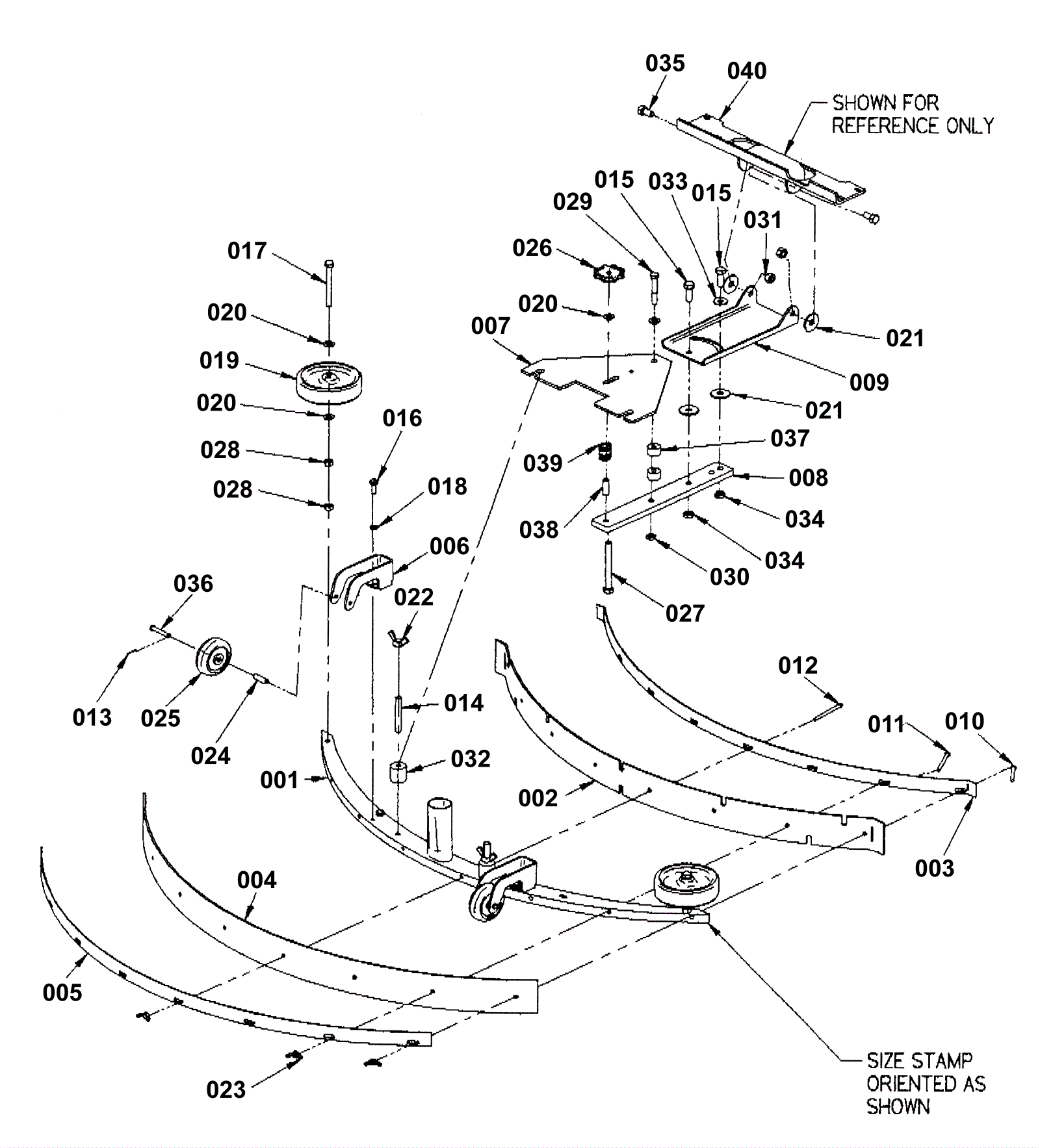

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001a |
202-1743
|
32 inch squeegee weldment |
$612.26
|
1 |
|
usually ships 8-13 days |
001b |
202-0795
|
35 inch squeegee weldment |
$409.86
|
1 |
|
usually ships 8-13 days |
001c |
202-0578
|
38 inch squeegee weldment |
$481.36
|
1 |
|
usually ships 8-13 days |
001d |
202-1855
|
45 inch squeegee weldment |
$369.82
|
1 |
|
usually ships 8-13 days |
002a |
202-0796
|
Squeegee blade 32 inch gum rubber front |
$33.33
|
1 |
|
usually ships 8-13 days |
002b |
202-0797
|
Squeegee blade 35 inch gum rubber front |
$34.98
|
1 |
|
usually ships 8-13 days |
002c |
202-0577
|
Squeegee blade 38 inch gum rubber front |
$35.97
|
1 |
|
usually ships 8-13 days |
002c |
202-0796
|
Squeegee blade 32 inch gum rubber front |
$33.33
|
1 |
|
usually ships 8-13 days |
002d |
202-1803
|
Squeegee blade 45 inch gum rubber front |
$41.58
|
1 |
|
usually ships 8-13 days |
003a |
202-1742
|
32 inch front squeegee band |
$73.48
|
1 |
|
usually ships 8-13 days |
003b |
202-0799
|
35 inch front squeegee band |
$59.62
|
1 |
|
usually ships 8-13 days |
003c |
202-0580
|
38 inch front squeegee band |
$55.99
|
1 |
|
usually ships 8-13 days |
003d |
202-1856
|
45 inch front squeegee band |
$134.09
|
1 |
|
ships same day |
004a |
202-0800
|
Squeegee blade 32 inch gum rubber rear |
$34.98
|
1 |
|
ships same day |
004b |
202-0801
|
Squeegee blade 35 inch gum rubber rear |
$34.98
|
1 |
|
usually ships 8-13 days |
004c |
202-0579
|
Squeegee blade 38 inch gum rubber rear |
$40.92
|
1 |
|
usually ships 8-13 days |
004c |
202-2935
|
Rear gum rubber squeegee blade 32 inch 1/8 inch thick |
$27.06
|
1 |
|
usually ships 8-13 days |
004d |
202-0002
|
Squeegee blade 45 inch gum rubber rear |
$42.79
|
1 |
|
usually ships 8-13 days |
005a |
202-0802
|
32 inch rear squeegee band |
$87.34
|
1 |
|
usually ships 8-13 days |
005b |
202-0803
|
35 inch rear squeegee band |
$114.18
|
1 |
|
usually ships 8-13 days |
005c |
202-0576
|
38 inch rear squeegee band |
$74.91
|
1 |
|
usually ships 8-13 days |
005d |
202-1857
|
45 inch rear squeegee band |
$81.73
|
1 |
|
usually ships 8-13 days |
006a |
202-0581
|
Squeegee trail mount |
$62.37
|
2 |
|
usually ships 8-13 days |
007 |
202-0808
|
Squeegee triangle plate |
$72.05
|
1 |
|
usually ships 8-13 days |
008 |
202-1858
|
Squeegee trail arm |
$85.36
|
1 |
|
usually ships 1-5 days |
009 |
202-0978
|
Squeegee swing plate (OBSOLETE) |
$41.91
|
1 |
|
usually ships 8-13 days |
010 |
999-0868
|
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
$3.85
|
2 |
|
ships same day |
011 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
$1.67
|
4 |
|
ships same day |
012 |
999-0860
|
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
$2.20
|
2 |
|
ships same day |
013 |
202-0585
|
Cotter ring |
$5.50
|
2 |
|
usually ships 8-13 days |
014 |
202-0806
|
Stud |
$16.06
|
2 |
|
usually ships 8-13 days |
015 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
2 |
|
ships same day |
016 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
4 |
|
usually ships 16-20 days |
017 |
999-1285
|
Bolt 5/16 -18 x 3 tap head zinc plated |
$1.78
|
2 |
|
ships same day |
018 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
4 |
|
ships same day |
019 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
$52.58
|
2 |
set of two with hardware |
ships same day |
020 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
021 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
$0.99
|
4 |
|
ships same day |
022 |
202-1044
|
Nut wing 3/8-16 nickel |
$14.30
|
2 |
|
ships same day |
023 |
999-0058
|
Nut 10-32 wing zinc plated |
$3.85
|
8 |
|
ships same day |
023b |
991-2412
|
Squeegee trail mounting bracket |
$53.28
|
2 |
(NON-OEM) |
ships same day |
024 |
202-0573
|
Wheel bushing (OBSOLETE) |
$4.62
|
2 |
|
usually ships 8-13 days |
025 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
$29.48
|
1 |
|
usually ships 8-13 days |
026 |
202-0809
|
Brass star knob |
$42.79
|
1 |
|
ships same day |
027 |
999-1441
|
Bolt 3/8-16 x 3 1/2 hex head stainless steel |
$7.99
|
1 |
|
ships same day |
028 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
4 |
|
ships same day |
029 |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
$0.54
|
1 |
|
ships same day |
030 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
$0.99
|
1 |
|
ships same day |
031 |
999-0959
|
Nut 3/8-16 hex |
$1.42
|
2 |
|
ships same day |
032 |
202-0582
|
Stand-off |
$13.31
|
2 |
|
usually ships 8-13 days |
033 |
202-0235
|
Cleanout door |
$98.67
|
1 |
|
usually ships 8-13 days |
034 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
$0.99
|
2 |
|
ships same day |
035 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
036 |
202-0805
|
Clevis pin |
$5.50
|
2 |
|
usually ships 8-13 days |
037 |
202-0787
|
Polyurethane spring |
$28.38
|
2 |
|
usually ships 8-13 days |
038 |
202-0589
|
5/16 clear tubing |
$5.50
|
1 |
|
usually ships 8-13 days |
039 |
202-0813
|
Spring |
$16.61
|
1 |
|
usually ships 8-13 days |
040 |
202-0910
|
Squeegee cross member |
$144.65
|
1 |
|
usually ships 1-5 days |
N/S |
202-0442
|
Clevis pin with cotter |
$5.50
|
2 |
(includes 013 and 036) |
usually ships 8-13 days |
