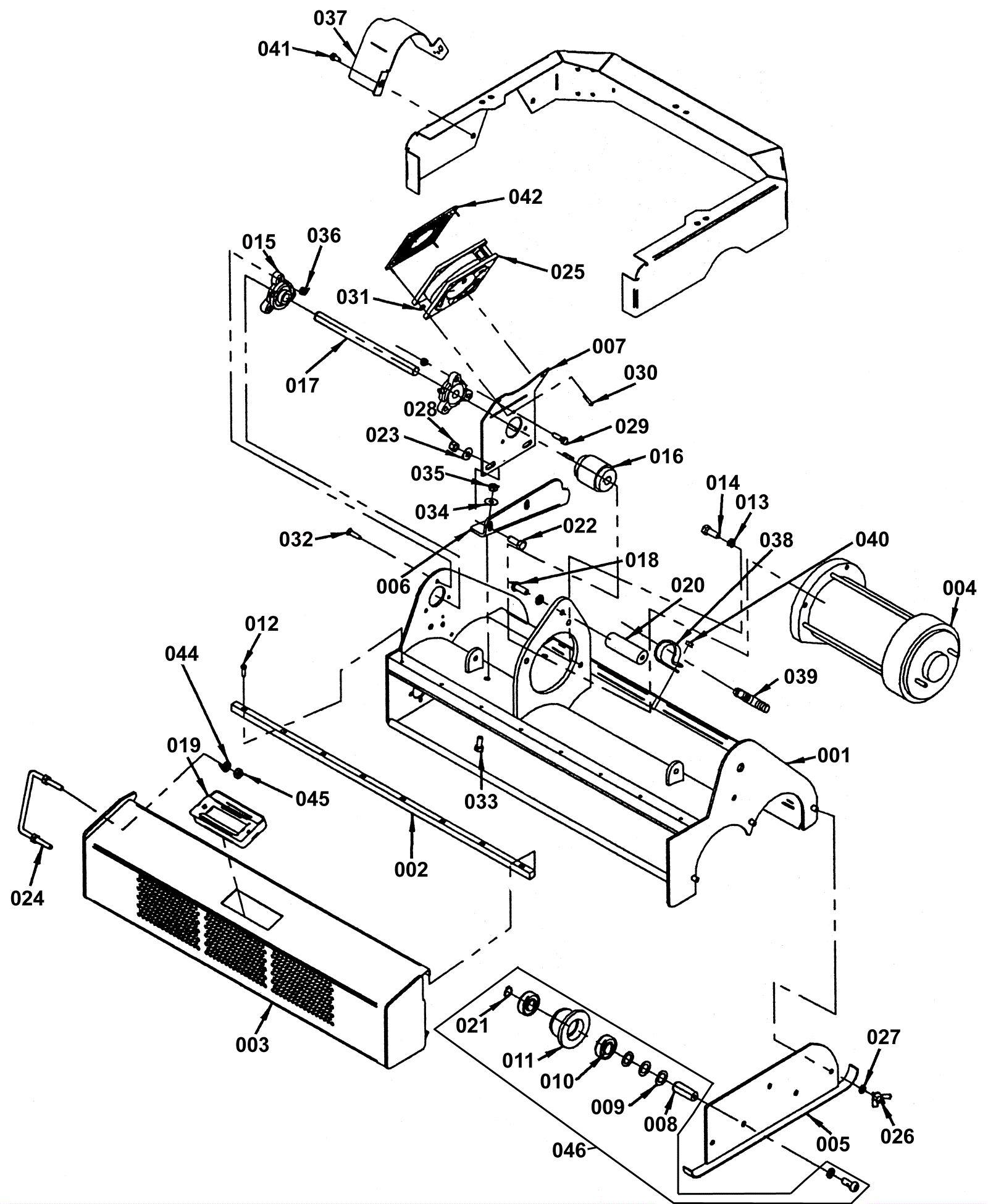

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0834
|
25 inch cylindrical brush head (OBSOLETE) |
1 |
|
|
002 |
202-0840
|
27 inch hopper rail |
1 |
|
|
003 |
202-0837
|
Hopper 25 inch (OBSOLETE) |
1 |
|
|
004 |
202-0630
|
2 hp motor |
1 |
|
|
005 |
202-0290
|
Cylindrical brush idler door |
1 |
|
|
006 |
202-0848
|
Fan plate mount |
1 |
|
|
007 |
202-1280
|
Fan mount plate |
1 |
|
|
008 |
202-0307
|
Idler assembly and shaft |
2 |
This part is no longer available alone, you must purchase it in this kit. |
|
009 |
202-1279
|
Washer 17mm nylon flat |
6 |
|
|
010 |
202-0307
|
Idler assembly and shaft |
2 |
This part is no longer available alone, you must purchase it in this kit. |
|
011 |
202-0307
|
Idler assembly and shaft |
2 |
This part is no longer available alone, you must purchase it in this kit. |
|
013 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
014 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
3 |
|
|
015 |
202-0296
|
Driveshaft bearing |
2 |
|
|
016 |
202-0295
|
Coupling |
1 |
|
|
017 |
202-0297
|
Driveshaft |
1 |
|
|
018 |
999-1003
|
Bolt 3/8-16 x 1 button head socket cap stainless steel |
3 |
|
|
019 |
202-0308
|
Handle |
1 |
|
|
020 |
202-1276
|
Upper standoff |
1 |
|
|
021 |
999-0859
|
Snap ring 17mm |
2 |
|
|
022 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
023 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
024 |
202-0855
|
Hopper handle |
1 |
|
|
025 |
202-2522
|
48V cooling fan |
1 |
|
|
026 |
999-1012
|
Nut 5/16-18 wing stainless steel |
3 |
|
|
027 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
3 |
|
|
028 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
|
029 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
3 |
|
|
030 |
999-0055
|
Screw 8-32 x 3/4 round head slotted zinc plated |
2 |
|
|
031 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
2 |
|
|
032 |
999-1345
|
Screw 1/4-20 x 1 flat head phillips stainless steel |
3 |
|
|
033 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
034 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
035 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
036 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
037 |
202-1281
|
Shaft guard |
1 |
|
|
038 |
202-0846
|
Rubber loop clamp |
1 |
|
|
039 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
040 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
041 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
042 |
202-1282
|
Fan cover |
1 |
|
|
044 |
999-0816
|
Washer 5/8 medium split lock |
2 |
|
|
045 |
999-0959
|
Nut 3/8-16 hex |
2 |
|
|
046 |
202-0307
|
Idler assembly and shaft |
2 |
|
|
N/S |
164-1029
|
Square keyway |
2 |
|
|
