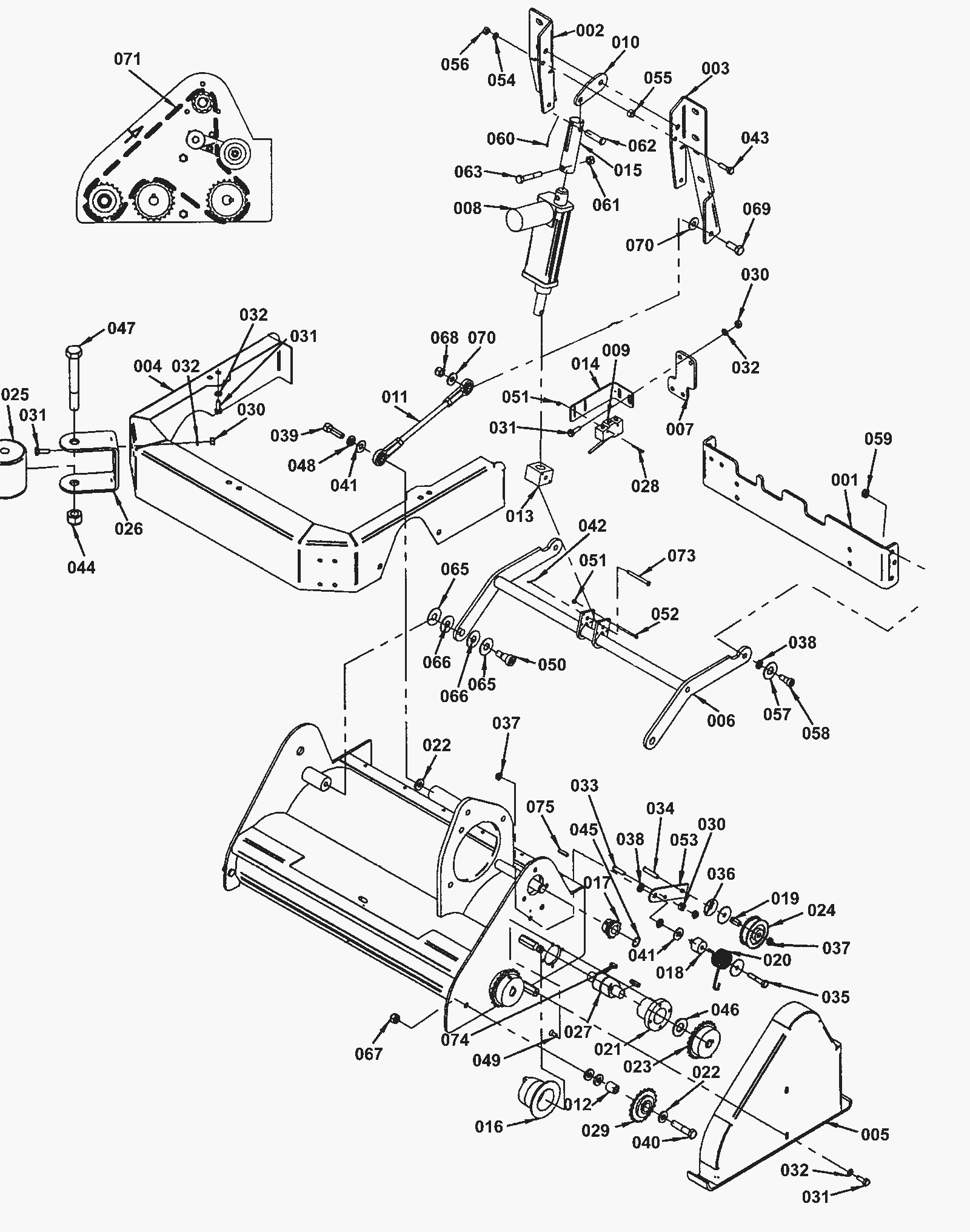

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-1256
|
Center pivot |
1 |
|
|
002 |
202-1257
|
Right fixed actuator |
1 |
|
|
003 |
202-1258
|
Left fixed actuator |
1 |
|
|
004 |
202-1259
|
Bandeau cover |
1 |
|
|
005 |
202-0856
|
Chain guard (OBSOLETE) |
1 |
|
|
006 |
202-1260
|
Lift arm assembly (OBSOLETE) |
1 |
|
|
007 |
202-3592
|
Limit switch update kit |
1 |
|
|
008 |
202-1262
|
Cylindrical actuator |
1 |
|
|
009 |
202-0192
|
Lift limit switch |
1 |
|
|
010 |
202-1263
|
Actuator anchor |
1 |
|
|
011 |
202-1264
|
Lateral arm |
1 |
|
|
012 |
202-0279
|
Idler spacer |
1 |
|
|
013 |
202-1265
|
Lift block |
1 |
|
|
014 |
202-0939
|
Switch mount |
1 |
|
|
015 |
202-1266
|
Actuator link |
1 |
|
|
016 |
202-0264
|
Brush driver |
2 |
|
|
017 |
202-0280
|
10 toothed sprocket |
1 |
|
|
018 |
202-0639
|
Pivot Spring |
1 |
|
|
019 |
202-0270
|
Spacer |
1 |
|
|
020 |
202-0277
|
Tension spring |
1 |
|
|
021 |
202-0265
|
Idler bearing housing |
2 |
|
|
022 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
023 |
202-0266
|
Sprocket 22-tooth |
2 |
|
|
024 |
202-0267
|
Idler pulley with bearing |
1 |
|
|
025 |
202-0756
|
Guide roller |
2 |
|
|
026 |
202-1267
|
26 inch roller bracket |
2 |
|
|
027 |
202-0269
|
Brush driver bearing (includes 202-0265) |
2 |
|
|
028 |
999-1002
|
Screw 4-40 x 1 round head phillips zinc plated |
2 |
|
|
029 |
202-0268
|
Fixed idler sprocket with bearing 20 tooth |
1 |
|
|
030 |
999-0609
|
Nut 1/4-20 hex stainless steel |
13 |
|
|
031 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
20 |
|
|
032 |
999-0632
|
Washer 1/4 split lock stainless steel |
20 |
|
|
033 |
202-1073
|
Stud 1/4-20 x 1 self-clinching |
1 |
|
|
034 |
999-0198
|
Screw 1/4-20 x 1 1/4 socket cap alloy plain finish |
1 |
|
|
035 |
999-0164
|
Bolt 1/4-20 x 1 1/2 hex head grade 8 plain finish |
1 |
|
|
036 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
3 |
|
|
037 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
3 |
|
|
038 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
4 |
|
|
039 |
999-0618
|
Screw 3/8-16 x 1 1/4 socket head stainless steel |
1 |
|
|
040 |
999-1441
|
Bolt 3/8-16 x 3 1/2 hex head stainless steel |
1 |
|
|
041 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
042 |
202-1268
|
Hair spring cotter pin (OBSOLETE) |
1 |
|
|
043 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
2 |
|
|
044 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
|
045 |
202-1346
|
Snap ring 1/2 |
1 |
|
|
046 |
202-1058
|
Washer 5/8 teflon |
2 |
|
|
047 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
2 |
|
|
048 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
049 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
|
050 |
202-1052
|
Bolt 1/2 shoulder stainless steel |
2 |
|
|
051 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
052 |
202-1269
|
Screw 4-40 x 1 3/4 pan head phillips machine |
2 |
|
|
053 |
202-0627
|
Movable idler arm |
1 |
|
|
054 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
055 |
202-0702
|
Spacer |
2 |
|
|
056 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
057 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
058 |
202-1163
|
Bolt 3/8 x 3/8 shoulder stainless steel |
2 |
|
|
059 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
|
|
060 |
202-2036
|
Cotter pin |
1 |
|
|
061 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
062 |
202-0942
|
Clevis pin |
1 |
|
|
063 |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
1 |
|
|
065 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
|
066 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
|
068 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
069 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
1 |
|
|
070 |
202-1201
|
Washer 5/16 uss |
2 |
|
|
071a |
202-1270
|
Drive chain |
1 |
|
|
071b |
202-0283
|
Master link |
1 |
|
|
073 |
202-1271
|
Clevis 3/16 x 2 |
1 |
|
|
074 |
202-0278
|
Square keyway |
2 |
|
|
075 |
164-1029
|
Square keyway |
3 |
|
|
N/S |
202-0250
|
Chain guard seal |
1 |
|
|
