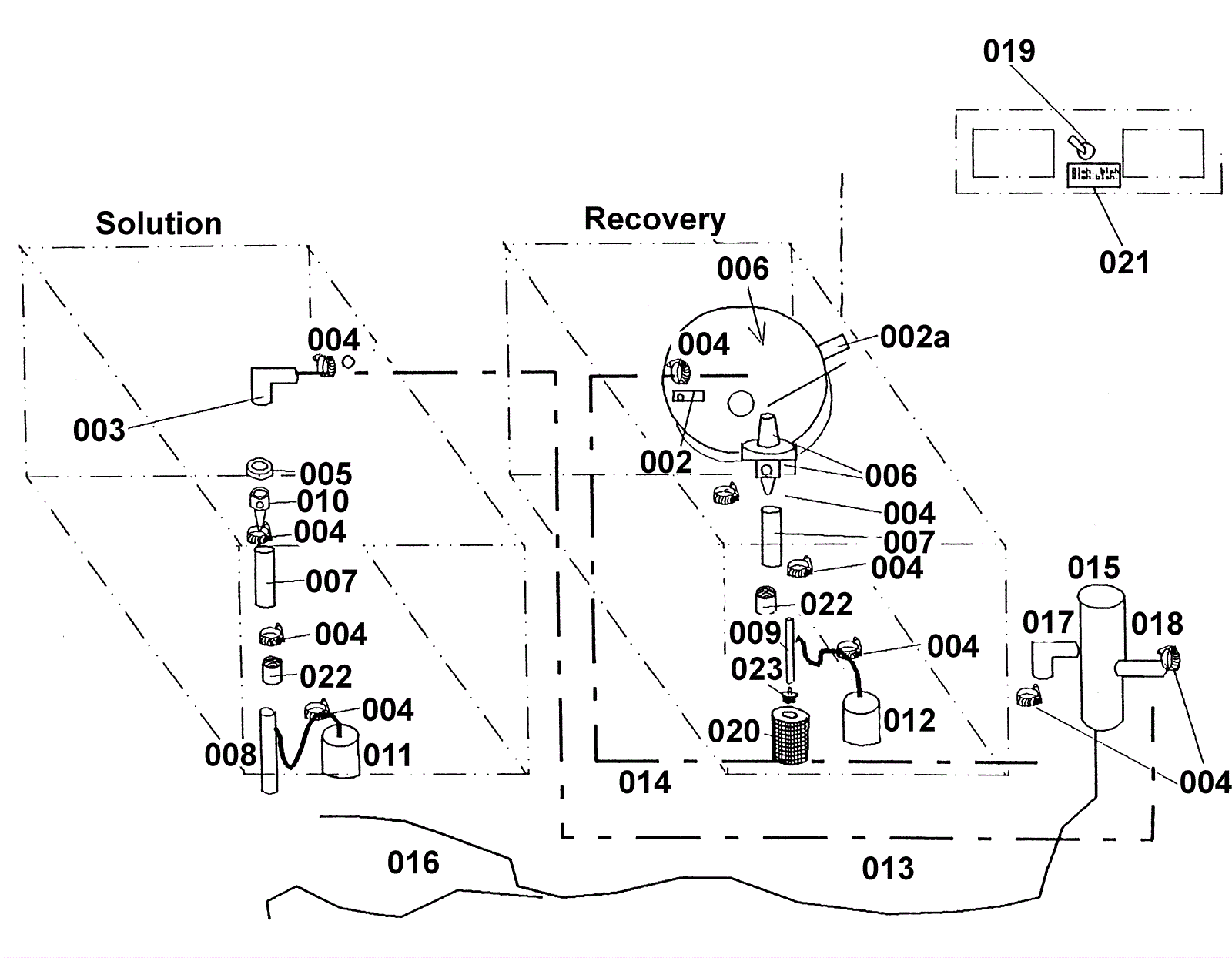

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
202-0652
|
Field installation kit |
1 |
|
|
002 |
202-0609
|
Recovery tank lid latch |
2 |
|
|
002a |
202-0653
|
Recovery lid latch |
|
|
|
003 |
202-0654
|
Elbow (OBSOLETE) |
2 |
|
|
004 |
997-2011
|
Hose clamp |
10 |
|
|
005 |
202-0663
|
Pump elbow barb (OBSOLETE) |
2 |
|
|
006 |
202-0120
|
Quick disconnect |
2 |
|
|
007 |
202-0118
|
1/2 inch Recovery tank to quick disconnect hose |
2 |
|
|
008 |
202-0656
|
Stainless steel outlet tube solution tank |
1 |
|
|
009 |
202-0657
|
Stainless steel inlet tube recovery tank |
1 |
|
|
011 |
202-1311
|
Float switch |
1 |
|
|
012 |
202-0658
|
Recovery shutoff switch (OBSOLETE) |
1 |
|
|
013 |
202-0659
|
Solution line reinforced hose |
1 |
|
|
014 |
202-0660
|
Recovery line reinforced hose |
1 |
|
|
015 |
202-0661
|
Recycling system pump |
1 |
|
|
016 |
202-0662
|
Complete wiring harness |
1 |
|
|
017 |
202-0663
|
Pump elbow barb (OBSOLETE) |
1 |
|
|
018 |
202-3263
|
Fitting 1/2 x 1/2 inch |
1 |
|
|
019 |
202-0097
|
Toggle switch |
1 |
|
|
020 |
202-0122
|
Recovery filter (OBSOLETE) |
1 |
|
|
021 |
N/A
|
Not available |
1 |
(Dashboard decal) |
|
022 |
202-0665
|
Plastic 1/2 npt to 3/8 barb coupling (OBSOLETE) |
1 |
|
|
023 |
202-0116
|
1/2 to 3/4 bushing |
1 |
|
|
