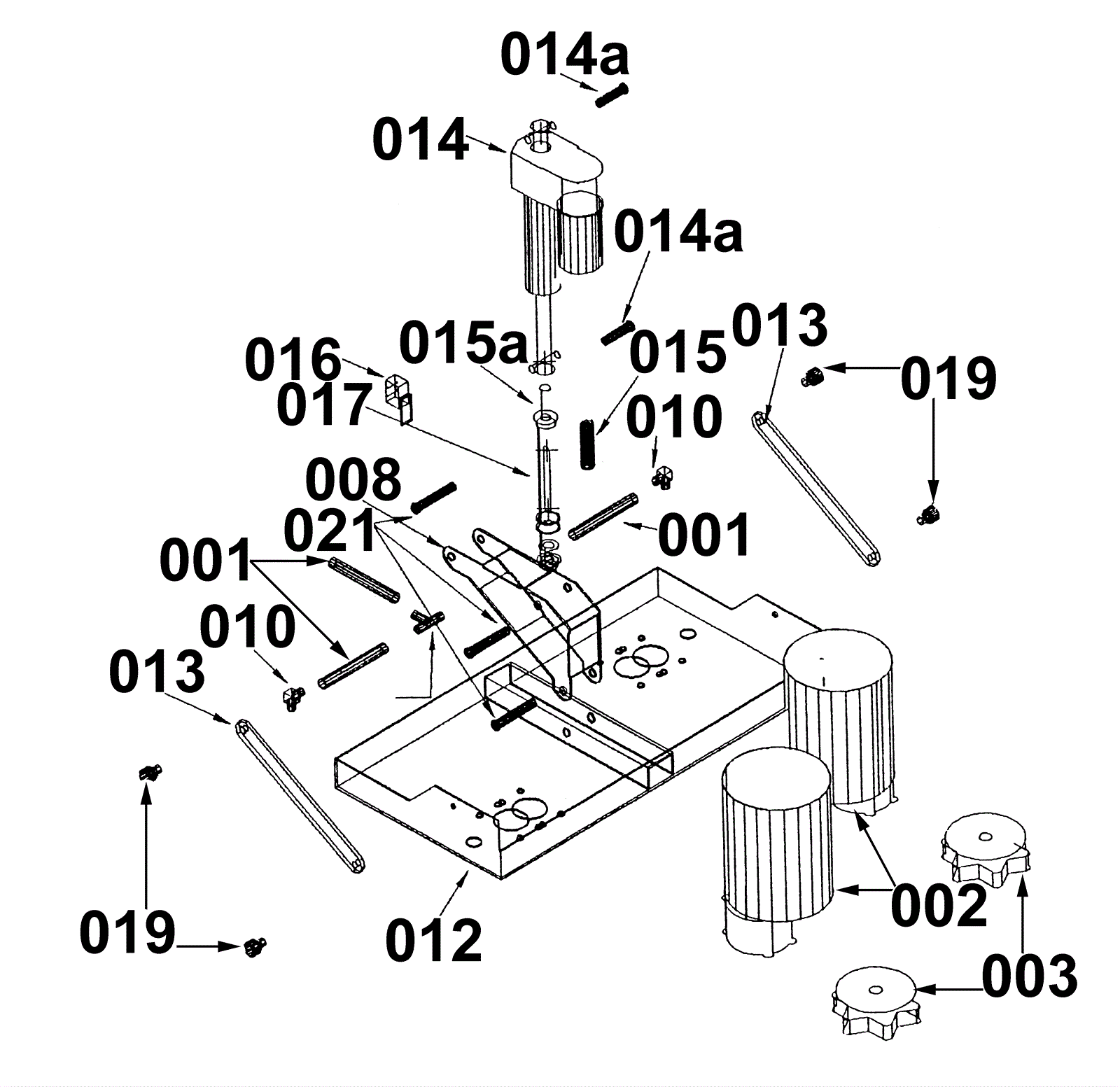

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0220
|
Nylon reinforced hose 5/8 inch diameter |
4 ft |
|
|
002a |
202-0321
|
24V 1HP 200RPM brush motor |
2 |
|
|
002b |
202-0480
|
24V 3/4HP brush motor |
2 |
|
|
003a |
202-0330
|
Metal brush driver |
2 |
|
|
003b |
202-0331
|
Brush driver key (pkg of 2) |
2 |
|
|
008 |
202-0619
|
Brush suspension center arm |
1 |
|
|
010 |
202-0333
|
Elbow barb |
2 |
|
|
011 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
012 |
202-0620
|
Scrub head platform (OBSOLETE) |
1 |
|
|
013 |
202-0621
|
Brush suspension side arm |
2 |
|
|
014 |
202-0254
|
Actuator |
1 |
|
|
014a |
202-3591
|
Clevis pin 1/2 x 1 3/4 zinc |
2 |
|
|
015 |
202-0326
|
Scrubhead down pressure spring standard strength |
1 |
|
|
015a |
202-0329
|
Spring cap |
1 |
|
|
016 |
202-0192
|
Lift limit switch |
1 |
|
|
017a |
202-0623
|
Spring tube |
1 |
|
|
017b |
202-3591
|
Clevis pin 1/2 x 1 3/4 zinc |
1 |
|
|
017c |
202-1112
|
Spring Tube Nut |
1 |
|
|
019 |
202-1163
|
Bolt 3/8 x 3/8 shoulder stainless steel |
4 |
|
|
019a |
202-5182
|
Clevis pin |
8 |
|
|
021 |
202-5182
|
Clevis pin |
3 |
|
|
N/S |
202-0215
|
Driver Mounting Bolt And Washer |
2 |
|
|
N/S |
999-0330
|
Nut 1/2-13 acorn brass |
2 |
|
|
