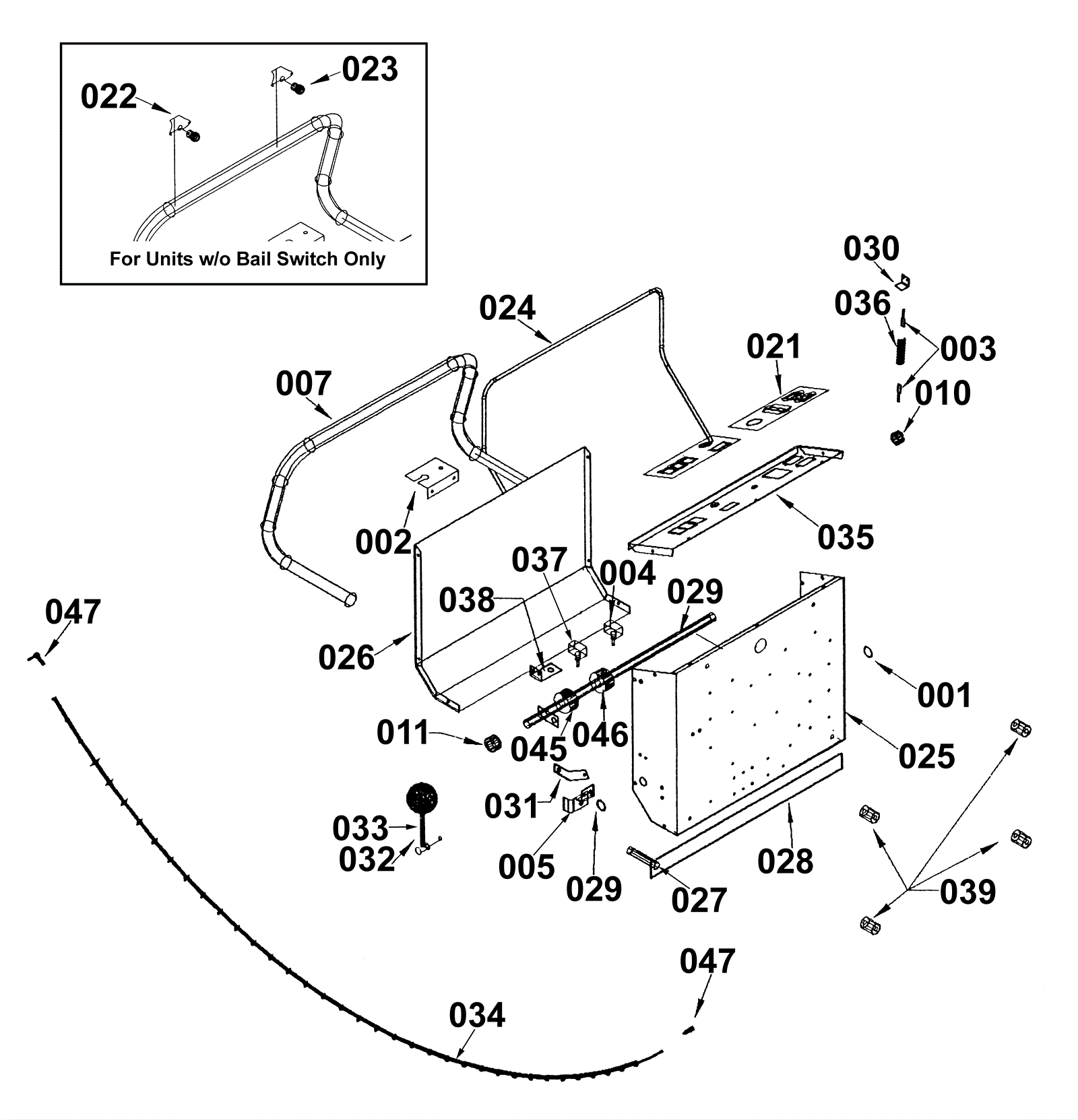

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0509
|
Forward/reverse bail crossbar ring bearings (OBSOLETE) |
2 |
|
|
002 |
202-0497
|
Drain plugs bracket |
1 |
|
|
003 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
004 |
202-0211
|
Solution flow upper cable coupler |
1 |
|
|
005a |
202-0528
|
Solution flow cable |
1 |
For machines with a dial that controls the solution flow. |
|
005b |
202-0516
|
Solution flow control cable |
1 |
For machines with a lever that controls the solution flow. |
|
006 |
202-0529
|
Outer tubing for solution cable |
1 |
|
|
007 |
202-0498
|
Handle bar (OBSOLETE) |
1 |
|
|
008 |
202-0530
|
Forward/reverse switch back and side cover (OBSOLETE) |
1 |
|
|
010a |
202-0498
|
Handle bar (OBSOLETE) |
1 |
|
|
010b |
202-0531
|
Forward/reverse tape switch (OBSOLETE) |
1 |
|
|
011 |
202-0500
|
Forward/reverse bail switching collar (OBSOLETE) |
1 |
|
|
021a |
202-0501
|
Control decal set (OBSOLETE) |
1 |
|
|
021b |
202-3555
|
Scrubber decal |
1 |
|
|
022 |
202-0869
|
Switch cover |
|
|
|
023 |
202-0879
|
Push button switch |
|
|
|
024 |
202-0502
|
Forward/reverse ball (OBSOLETE) |
1 |
|
|
025 |
202-0503
|
Central command box |
1 |
|
|
026 |
202-0504
|
Central command front panel |
1 |
|
|
027 |
202-0505
|
Squeegee lift handle |
1 |
|
|
028 |
202-0507
|
Squeegee lift bar (OBSOLETE) |
1 |
|
|
029 |
202-0508
|
Forward/reverse ball crossbar (OBSOLETE) |
1 |
|
|
030 |
202-0510
|
Centering spring bracket (OBSOLETE) |
1 |
|
|
031 |
202-0512
|
Interior solution flow lever (OBSOLETE) |
2 |
|
|
032 |
202-0513
|
Solution flow lever pivot shaft (OBSOLETE) |
1 |
|
|
033 |
202-0514
|
Exterior solution flow lever (OBSOLETE) |
1 |
|
|
034 |
202-0516
|
Solution flow control cable |
1 |
|
|
035 |
202-0519
|
Central command control panel |
1 |
|
|
036 |
202-0520
|
Forward/reverse bail polymer tension spring (OBSOLETE) |
1 |
|
|
037 |
202-0521
|
Toggle switch |
1 |
|
|
038 |
202-0523
|
Forward/reverse switch mount (OBSOLETE) |
1 |
|
|
039 |
202-3468
|
Spacer |
4 |
|
|
040 |
202-0525
|
Solution flow cable clamp block (OBSOLETE) |
1 |
|
|
041 |
202-0526
|
Solution flow cable clamp (OBSOLETE) |
1 |
|
|
045 |
202-0500
|
Forward/reverse bail switching collar (OBSOLETE) |
|
|
|
046 |
202-0522
|
Electric actuator collar (OBSOLETE) |
|
|
|
047 |
202-0511
|
Solution cable ball joint |
|
|
|
048 |
202-1092
|
Spade Bolt (OBSOLETE) |
2 |
|
|
049 |
202-0518
|
Solution cable mounting bracket (OBSOLETE) |
1 |
|
|
050 |
202-0521
|
Toggle switch |
1 |
|
|
N/S |
202-0517
|
Solution flow control cable clip |
1 |
|
|
N/S |
202-0506
|
Handle grip |
1 |
|
|
