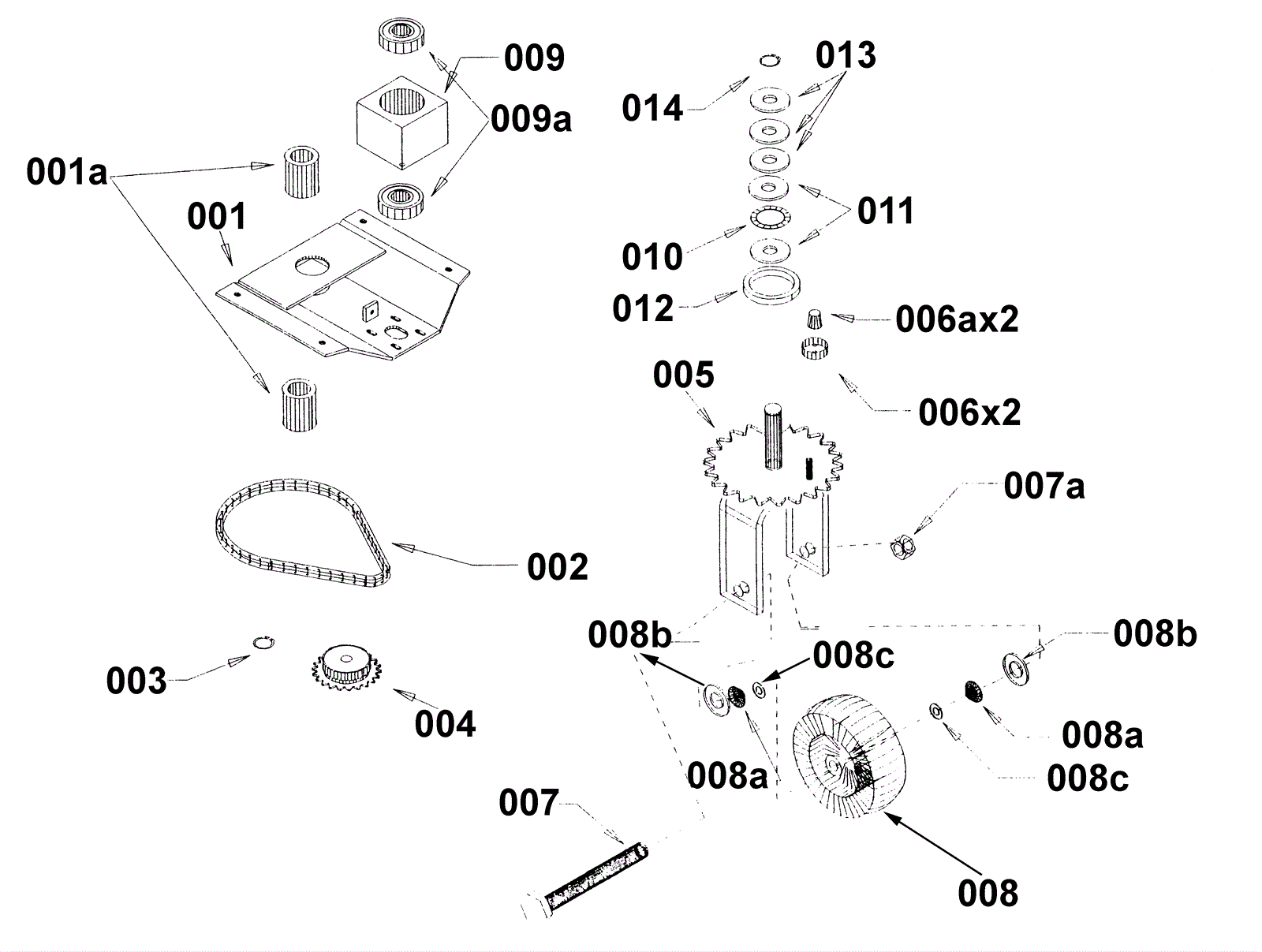

3700 Lower Steering System: Rear Wheel Drive Units

#PartDescriptionPriceReqNotesAvailability
001a 202-0146 Yoke plate bearing set $35.40 1 usually ships 1-5 days
001b 202-0144 Yoke bearing plate with bearing set $841.50 1 usually ships 1-5 days
001c 202-0144 Yoke bearing plate with bearing set $841.50 1 usually ships 1-5 days
002 202-0147 Steering chain including master link $55.60 1 usually ships 1-5 days
003 202-0281 Snap ring $5.00 1 usually ships 3-10 days
004 202-0149 Steering small sprocket has 9 teeth $154.84 1 usually ships 1-5 days
005 202-0150 Steering yoke and big sprocket assembly $1,209.70 1 usually ships 1-5 days
006 202-0151 Grommet $4.00 2 usually ships 3-10 days
006a 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 1 ships same day
007 202-0153 Wheel axle $17.00 1 usually ships 1-5 days
007a 999-1001 Nut 3/4-10 nylon insert lock zinc plated $1.37 1 usually ships 1-5 days
008 202-0154 Front wheel with bearings, seals and washers $1,674.41 1 usually ships 3-10 days
008 202-0156 Wheel bearing w/ dust seal and thrust washer (pkg of 8) $143.60 1 usually ships 1-5 days
008c 202-4079 Bearing $4.20 2 usually ships 1-5 days
009 202-0771 Bearing block $186.80 1 usually ships 3-10 days
009a 202-0160 Bearing $38.00 2 usually ships 3-10 days
010 202-0161 Thrust bearing $14.80 1 usually ships 1-5 days
011 202-1040 Washer $6.88 2 ships same day
012 202-0162 O-ring $6.10 1 usually ships 1-5 days
013 202-0488 Spacer ring $6.10 2 usually ships 3-10 days
014 997-2201 1 inch external snap ring $0.90 1 ships same day
N/S 202-0154 Front wheel with bearings, seals and washers $1,674.41 1 usually ships 3-10 days
