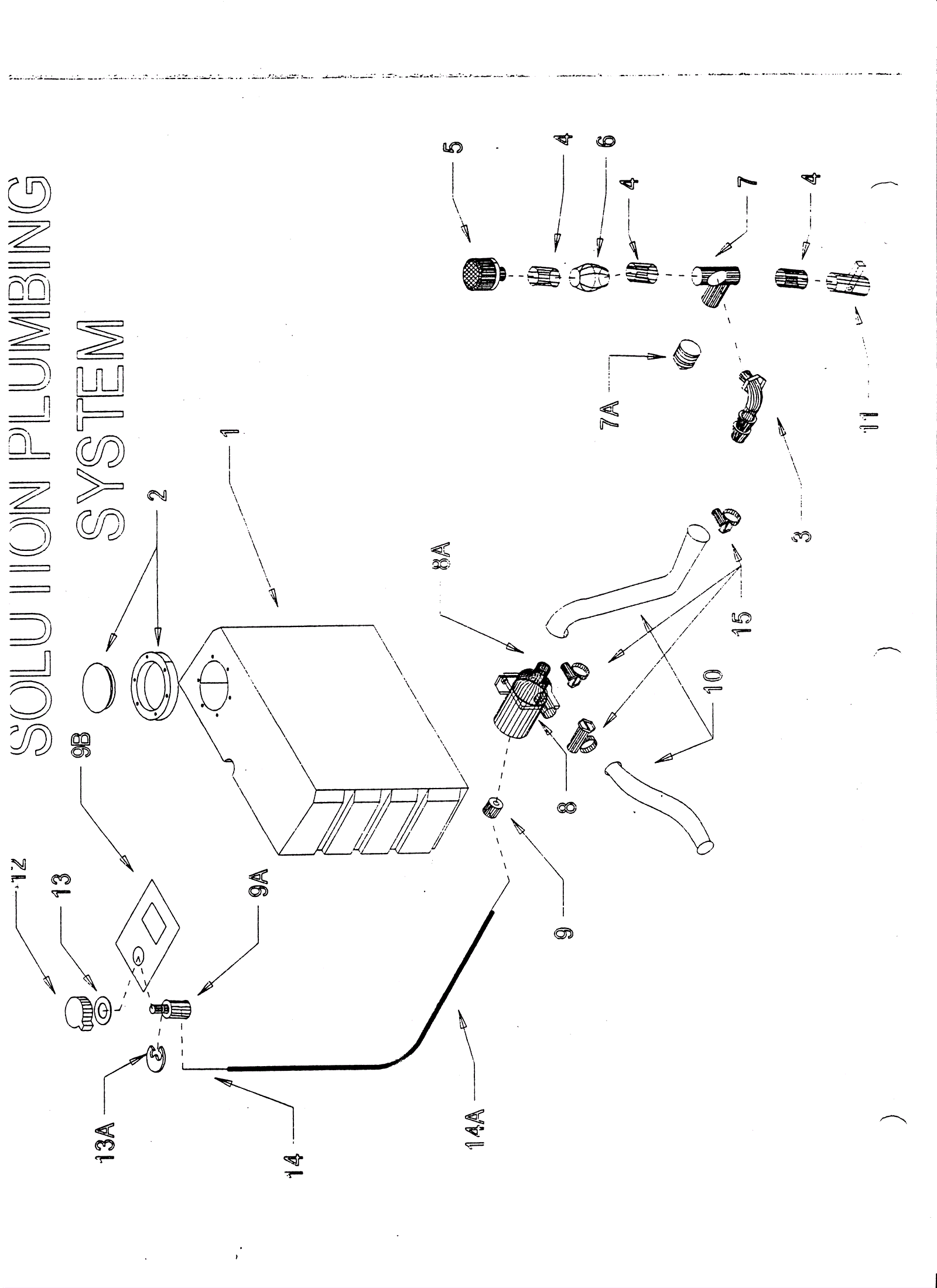

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0194
|
5/8 Barb elbow |
1 |
(not shown) |
|
002 |
202-0100
|
Clear reinforced 5/8 inch hose |
1 |
|
|
003 |
202-0196
|
5/8 Barb to 3/4 npt elbow |
1 |
|
|
004 |
202-0197
|
3/4 inch npt steel nipple (OBSOLETE) |
3 |
|
|
005 |
202-0198
|
Solution intake screen |
1 |
|
|
006 |
202-0199
|
3/4 inch npt steel union |
1 |
|
|
007 |
202-0207
|
Side outlet tee 4 outlets |
1 |
|
|
008 |
202-0208
|
Adjustable solution flow valve |
1 |
|
|
008a |
202-0209
|
Polysulfone face for deltrol valve |
1 |
|
|
009 |
202-0210
|
Solution flow lower cable coupler |
1 |
|
|
009a |
202-0211
|
Solution flow upper cable coupler |
1 |
|
|
010 |
202-0100
|
Clear reinforced 5/8 inch hose |
1 |
|
|
011 |
202-0214
|
Solution tank dump valve |
1 |
|
|
012 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
013 |
202-1217
|
Washer |
1 |
|
|
013a |
202-0216
|
E clip (OBSOLETE) |
1 |
|
|
014 |
202-0217
|
Solution flow control cable inner core |
1 |
|
|
014a |
202-0218
|
Solution flow cable outer tubing |
1 |
|
|
016 |
202-0221
|
Old style 3/4 inch npt steel tee (OBSOLETE) |
1 |
|
|
N/S |
202-0207
|
Side outlet tee 4 outlets |
1 |
|
|
N/S |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
N/S |
202-0219
|
Nylon reinforced hose 1/2 inch diameter |
1 |
|
|
N/S |
202-0220
|
Nylon reinforced hose 5/8 inch diameter |
1 |
|
|
