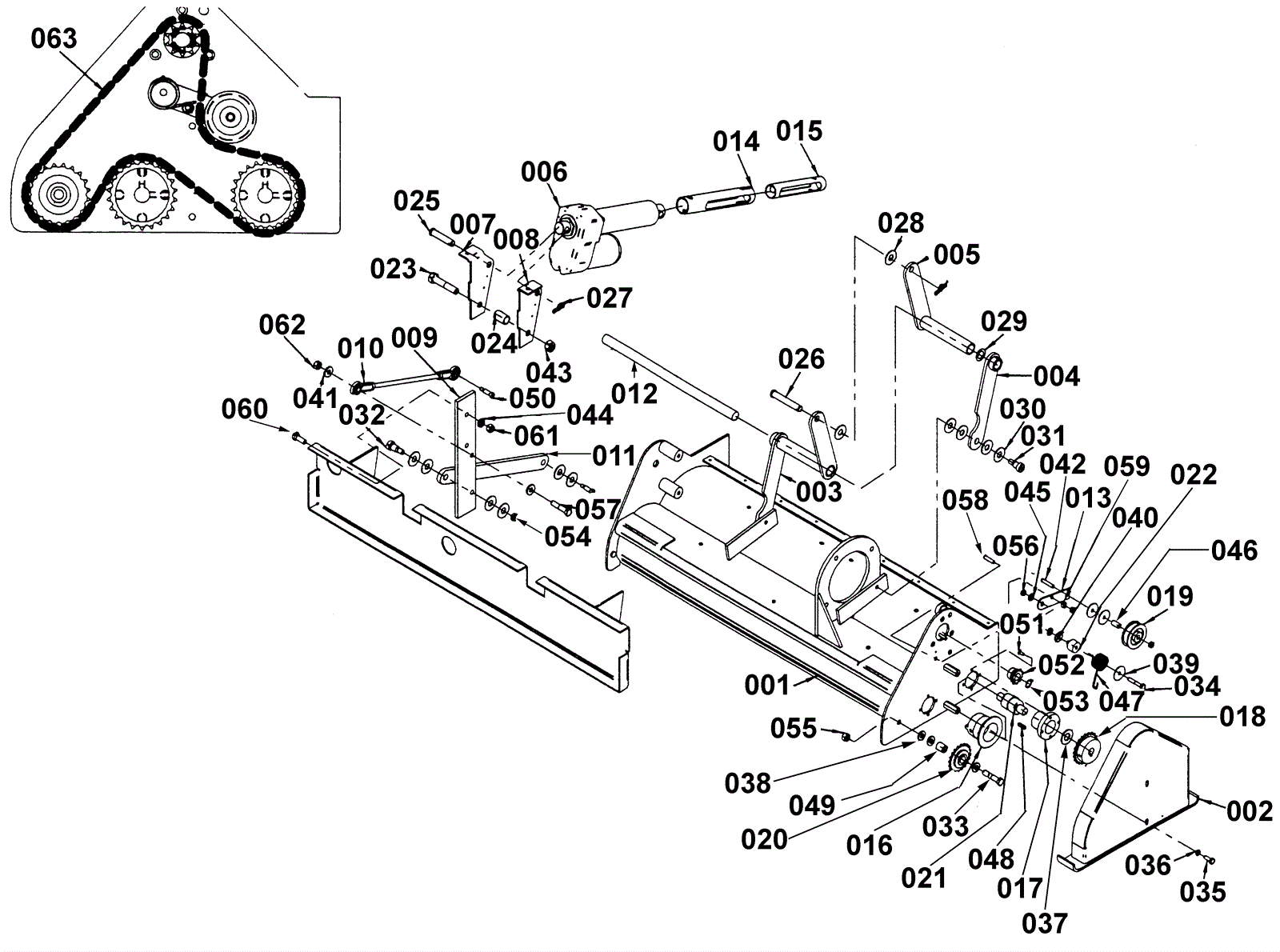

3700 Cylindrical Brush System

#PartDescriptionPriceReqNotesAvailability
001 202-0247 Cylindrical body $2,546.94 1 usually ships 1-5 days
002a 202-0249 Chain guard steel with integral steel ski new style $587.18 1 usually ships 1-5 days
002b 202-0249 Chain guard steel with integral steel ski new style $587.18 1 usually ships 1-5 days
003 202-0251 Left lower link $127.49 1 usually ships 1-5 days
004 202-0252 Right lower link (OBSOLETE) $88.33 1 usually ships 8-12 days
005 202-0253 Upper link $395.78 2 usually ships 1-5 days
006 202-0254 Actuator $981.99 1 usually ships 1-5 days
007 202-0255 Right actuator adapter $43.01 1 usually ships 1-5 days
008 202-0256 Left actuator adapter $43.01 1 usually ships 1-5 days
009 202-0257 Forward link mount $47.30 2 usually ships 1-5 days
010 202-0258 Adjustable link $67.10 2 usually ships 1-5 days
011 202-0259 Lower parallel arm $70.40 2 usually ships 1-5 days
012 202-0260 3/4 inch x 15 inch Shaft $101.75 1 usually ships 1-5 days
013 202-0261 Moveable chain idler arm $39.93 1 usually ships 1-5 days
014 202-0262 Outer spring tube $146.85 1 usually ships 8-12 days
015 202-0263 Inner spring tube (OBSOLETE) $90.53 1 usually ships 1-5 days
016 202-0264 Brush driver $92.95 2 ships same day
017 202-0265 Idler bearing housing $54.23 2 usually ships 8-12 days
018 202-0266 Sprocket 22-tooth $149.60 2 usually ships 8-12 days
019 202-0267 Idler pulley with bearing $63.58 1 usually ships 8-12 days
020 202-0268 Fixed idler sprocket with bearing 20 tooth $90.20 1 usually ships 8-12 days
021 202-0269 Brush driver bearing (includes 202-0265) $162.14 2 usually ships 8-12 days
022 202-0270 Spacer $10.78 1 usually ships 8-12 days
023 999-0261 Bolt 1/2-13 x 2 hex head grade 5 $1.58 2 ships same day
024 202-0272 Spacer $8.91 1 usually ships 1-5 days
025 202-0637 1/2 inch x 2 1/4 inch Clevis pin $5.50 1 usually ships 8-12 days
027 202-2059 Cotter ring $5.50 2 usually ships 8-12 days
028 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
029 202-1050 Washer 3/4id nylon $5.50 4 usually ships 1-5 days
030 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 12 ships same day
031 202-1052 Bolt 1/2 shoulder stainless steel $16.17 2 usually ships 1-5 days
032 202-1163 Bolt 3/8 x 3/8 shoulder stainless steel $13.20 2 usually ships 8-12 days
033 999-1441 Bolt 3/8-16 x 3 1/2 hex head stainless steel $7.99 1 ships same day
034 202-1163 Bolt 3/8 x 3/8 shoulder stainless steel $13.20 1 usually ships 8-12 days
035 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
036 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
037 202-1058 Washer 5/8 teflon $22.00 2 usually ships 8-12 days
038 999-0032 Washer 3/8 USS flat plain finish $2.42 3 ships same day
039 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 1 ships same day
040 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
041 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
042 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish $0.99 1 ships same day
043 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
044 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
045 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 4 ships same day
046 202-0270 Spacer $10.78 1 usually ships 8-12 days
047 202-0277 Tension spring $57.29 1 usually ships 8-12 days
048 202-0278 Square keyway $5.50 2 usually ships 8-12 days
049 202-0279 Idler spacer $6.38 1 usually ships 8-12 days
050 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
051 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 8 ships same day
052 202-0280 10 toothed sprocket $31.13 1 usually ships 8-12 days
053 202-0281 Snap ring $5.50 1 usually ships 8-12 days
054 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
056 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 1 ships same day
057 999-1441 Bolt 3/8-16 x 3 1/2 hex head stainless steel $7.99 2 ships same day
058 202-1073 Stud 1/4-20 x 1 self-clinching $5.50 1 usually ships 8-12 days
059 999-0609 Nut 1/4-20 hex stainless steel $0.99 13 ships same day
060 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
061 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
063 202-0282 Chain $40.37 1 usually ships 8-12 days
063a 202-0283 Master link $5.50 1 usually ships 8-12 days
063b 202-0284 Half link $22.44 1 usually ships 1-5 days
N/S 202-0250 Chain guard seal $16.50 2 ft usually ships 8-12 days
N/S 202-0285 Cylindrical drive teflon grease hi-pressure lube #1 $60.61 1 usually ships 1-5 days
N/S 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
