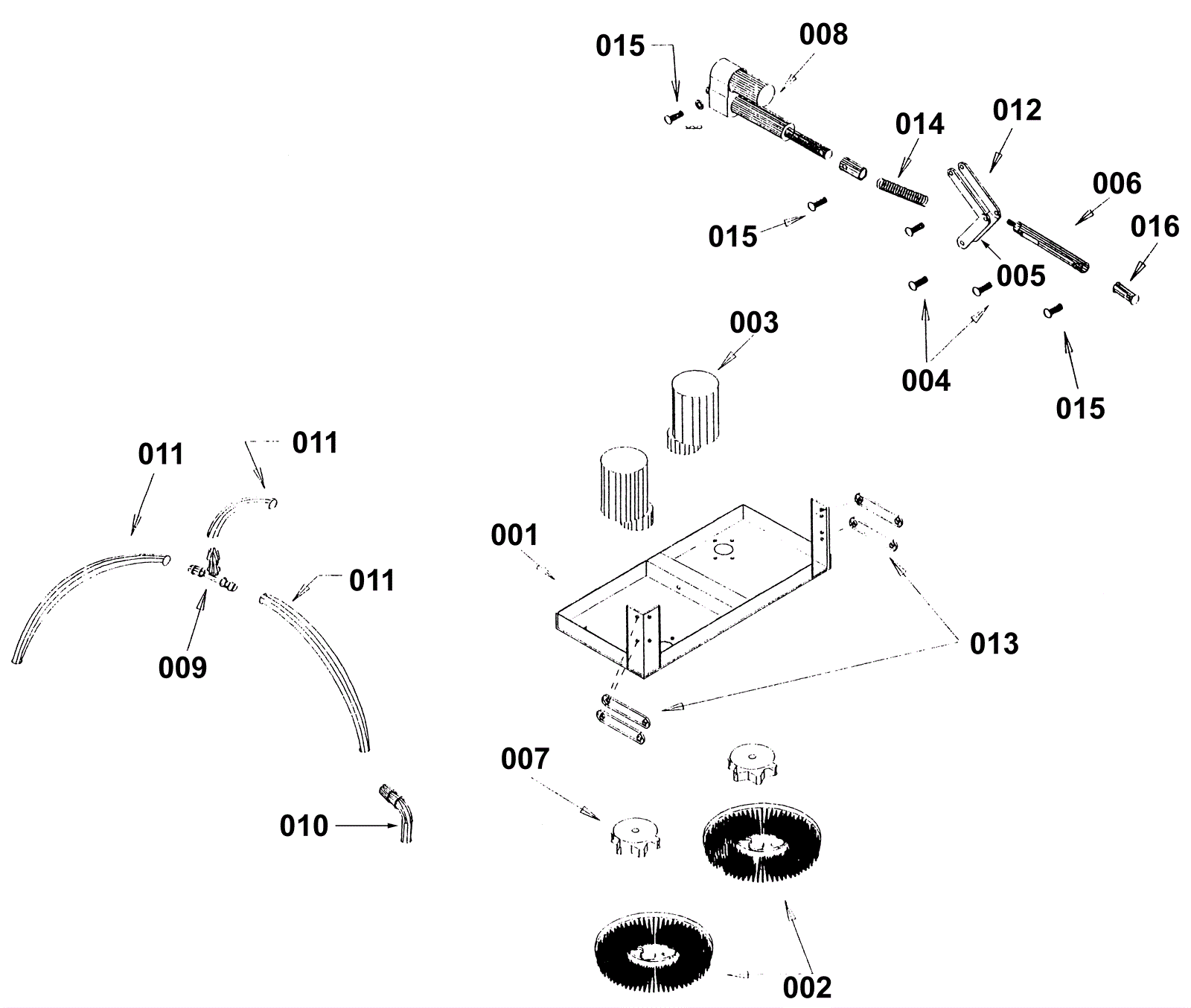

3700 Scrub Deck Parts

#PartDescriptionPriceReqNotesAvailability
001 202-0309 Scrubhead $607.64 1 usually ships 8-12 days
002a 202-0330 Metal brush driver $147.95 2 usually ships 8-12 days
002b 996-1147 Polypropelene scrubbing brush $163.79 2 usually ships 1-5 days
002c 996-1148 Nylon brush $207.68 2 usually ships 1-5 days
002e 996-1150 Lite grit scrubbing brush - 500 grit $352.11 2 usually ships 1-5 days
002f 996-0752 Medium grit scrubbing brush - 180 grit $352.11 2 usually ships 8-12 days
002g 202-0315 Extra heavy grit stripping brush - 46 grit $352.11 2 usually ships 1-5 days
002h 996-1151 Extra heavy grit stripping brush - 46 grit $352.11 2 usually ships 1-5 days
002i 202-0317 Butcher wire brush (OBSOLETE) Call for price 2 usually ships 1-5 days
002j 996-0754 Pad driver $177.10 2 usually ships 1-5 days
003a 202-0321 24V 1HP 200RPM brush motor $645.89 2 usually ships 8-12 days
003b 991-2121 24V .75HP brush motor assembly with gear box $416.75 2 usually ships 14-21 days
005 202-0323 Scissorlift assembly (OBSOLETE) $160.05 1 usually ships 8-12 days
006 202-0325 Spring tube $251.24 1 usually ships 8-12 days
007a 202-0330 Metal brush driver $147.95 2 usually ships 8-12 days
007b 202-0331 Brush driver key (pkg of 2) $9.90 2 ships same day
007c 202-0215 Driver Mounting Bolt And Washer $7.48 2 usually ships 8-12 days
008 202-0254 Actuator $981.99 1 usually ships 1-5 days
009a 202-0332 1/2 inch barbed tee $5.50 1 ships same day
009b 202-0099 Tee barb $5.50 1 usually ships 1-5 days
010a 202-0333 Elbow barb $5.50 1 ships same day
010b 202-0335 Barbed elbow $5.50 2 usually ships 8-12 days
011a 202-0100 Clear reinforced 5/8 inch hose $19.80 (Sold by the foot) usually ships 8-12 days
011b 202-0219 Nylon reinforced hose 1/2 inch diameter $23.65 (Sold by the foot) usually ships 1-5 days
011c 202-0220 Nylon reinforced hose 5/8 inch diameter $5.50 (Sold by the foot) usually ships 1-5 days
012a 202-1047 Arm Mount Hardware Set $27.06 1 usually ships 8-12 days
012b 202-0334 Scissorlift link $19.80 usually ships 1-5 days
013 202-0324 Scrub head lateral arm $26.73 4 usually ships 1-5 days
014 202-0326 Scrubhead down pressure spring standard strength $72.38 1 usually ships 8-12 days
015 202-3591 Clevis pin 1/2 x 1 3/4 zinc $5.50 1 usually ships 8-12 days
016 202-0328 Spring retainer $6.71 1 usually ships 8-12 days
N/S 202-0320 Scrub brush repair kit (clutch/gimball repair) $53.79 Bent wire, bracket bar, and screw for top of clutch plate. usually ships 8-12 days
N/S 202-0329 Spring cap $121.10 1 usually ships 8-12 days
N/S 991-2206 Center-Lok 3 pad holder $35.50 ships same day
