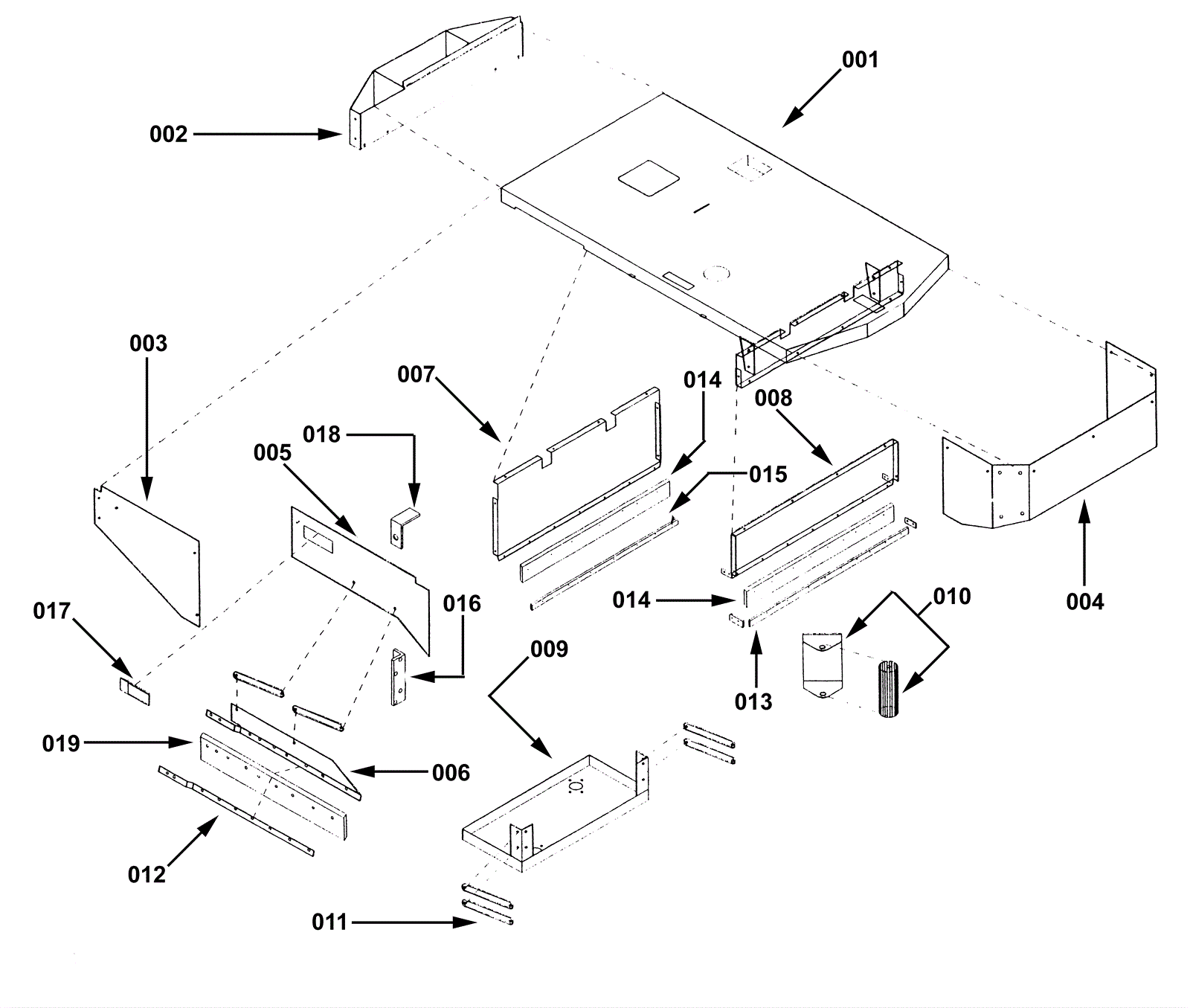

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0397
|
Mainframe (OBSOLETE) |
1 |
|
|
002 |
202-0398
|
Rear bumper |
1 |
|
|
003 |
202-0399
|
Quarter panel |
2 |
|
|
004 |
202-0400
|
New style front bumper fits on machines |
1 |
|
|
005 |
202-0401
|
Side door panel |
2 |
|
|
006 |
202-0405
|
Righthand wiper |
1 |
|
|
007 |
202-0412
|
Rear splash panel |
1 |
|
|
008 |
202-0413
|
Front splash panel |
1 |
|
|
009 |
202-0309
|
Scrubhead |
1 |
|
|
010a |
202-0414
|
Roller and bracket assembly complete |
|
|
|
010b |
202-0415
|
Roller bracket |
2 |
|
|
010c |
202-0416
|
Guide roller |
2 |
|
|
011 |
202-0324
|
Scrub head lateral arm |
4 |
|
|
012 |
202-0407
|
Wiper blade mounting strip (OBSOLETE) |
2 |
|
|
013a |
202-0417
|
Front splash curtain holddown bar set |
1 |
|
|
013b |
202-0418
|
Long bar |
1 |
|
|
013c |
202-0419
|
Short bar |
2 |
|
|
014 |
202-0420
|
Splash curtain set front and rear curtains (OBSOLETE) |
1 |
|
|
015 |
202-0421
|
Rear splash curtain holddown bar |
1 |
|
|
016 |
202-0403
|
Hinge |
2 |
|
|
017 |
202-0404
|
Latch |
2 |
|
|
018 |
202-0408
|
Wiper lifting bracket |
2 |
|
|
019a |
202-0409
|
Wiper blade gum rubber standard brown (pkg of 2) |
1 |
Set of 2 |
|
019b |
202-0439
|
Side wiper blades neoprene (pkg of 2) |
1 |
|
|
N/S |
202-0406
|
Lefthand wiper |
1 |
|
|
N/S |
202-0377
|
Label set for controls |
1 |
|
|
N/S |
202-0411
|
1 inch wide bumper strip |
8 ft |
|
|
